Radial Engineering ProISO Balanced +4dB to -10dB Unbalanced Passive Converter, Voice Range

OUR PART #: PROISO MFR #: R800 1150

Copied to clipboard

The Pro-Iso is a +4 dB to -10 dB converter that employs a cost-effective transformer that focuses the energy in the voice range. ...Read more

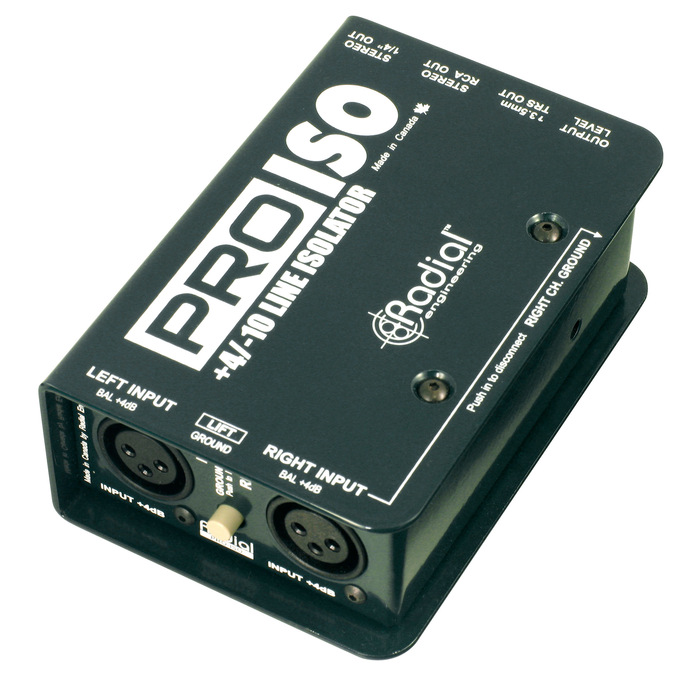

Radial Engineering ProISO Balanced +4dB To -10dB Unbalanced Passive Converter, Voice Range Image 1

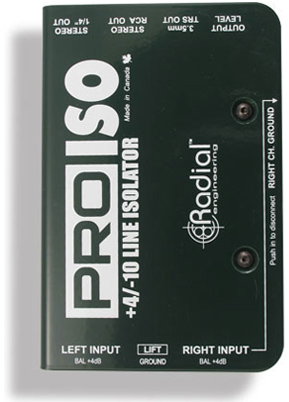

Radial Engineering ProISO Balanced +4dB To -10dB Unbalanced Passive Converter, Voice Range Image 2
Radial Engineering ProISO Balanced +4dB To -10dB Unbalanced Passive Converter, Voice Range
Our Price: $199.99
List Price: $240.00
You save 17%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$6/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 14-17 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Pro-Iso is a +4 dB to -10 dB converter that employs a cost-effective transformer that focuses the energy in the voice range. This makes the Pro-Iso a great choice for recording sermons, news gathering and spoken voice from a professional mixer to a commercial portable recorder or computer.

The passive design begins with 100% discrete components throughout for minimal noise interference. A "set-and-forget" level control lets you attenuate the input signal to prevent it from overloading the destination device, and the bookend chassis design prevents the knob from getting bumped later on. Output connections include a stereo pair of 1/4" connectors, a set of RCAs and a mini 3.5mm (1/8") for interfacing to a mini recorder or lap-top computer. The ground lift switch helps eliminate hum and buzz caused by ground loops while eliminating stray DC currents from flowing.

When you need to convert balanced +4 dB outputs for a commercial device, the Pro-Iso comes to the rescue!

Features

  • Converts balanced line-level signals to unbalanced
  • Stereo signal path with set-and-forget level control
  • Transformer isolated to eliminate hum and buzz
  • Cost-effective transformers targeting voice range
  • 4dB balanced inputs follow AES standard

Specifications

  • Audio Circuit Type: Passive, transformer based
  • Transformer: Radial transformer
  • # of Channels: Stereo (dual mono)
  • Frequency Response: 20 Hz - 18 kHz (+0/-3 dB)
  • Dynamic Range: 130 dB
  • Total Harmonic Distortion: 0.005% @ 1 kHz
  • Phase Deviation:
    • 1.5° @ 100 Hz
    • 3° @ 20 Hz
  • Input Connectors: XLR balanced
    • Input Impedance: 1.3 kΩ
    • Common Mode Rejection Ratio (CMRR): -76 dB
    • Maximum Input: +20 dBu @ 1 kHz / 1% THD+N
  • Output Connectors: 1/4", RCA, 3.5mm TRS unbalanced
    • Output Impedance: 1.9 kΩ
  • Features: Ground lift, level control
  • Construction: 14-gauge steel chassis
  • Power: Passive, no power required
  • Conditions: For use in dry locations only, 5-40°C
  • Dimensions: 2" x 3.3" x 5"
  • Weight: 1.55 lbs (0.7 kg)
