Vaddio EasyTalk USB
USB Audio Conference System, Audio Bundle System B

OUR PART #:  EASY-TALK-USB

The Vaddio EasyTalk USB System B Bundle is a USB Audio Conferencing solution for medium rooms using PC-based unified communication applications.
Learn More
Our Price: $2,115.00
List Price: $2,350.00
You save 10%!
Write the first review.
Vaddio EasyTalk USB
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Vaddio EasyTalk USB System B Bundle is a USB Audio Conferencing solution for medium rooms using PC-based unified communication applications. For video conferencing applications where the loudspeaker is co-located with the room's LCD display. Includes the EasyUSB Mixer/Amp, EasyTALK Sound Bar Speaker and two EasyMic Table MicPODs for extended coverage for larger conference tables with more participants.

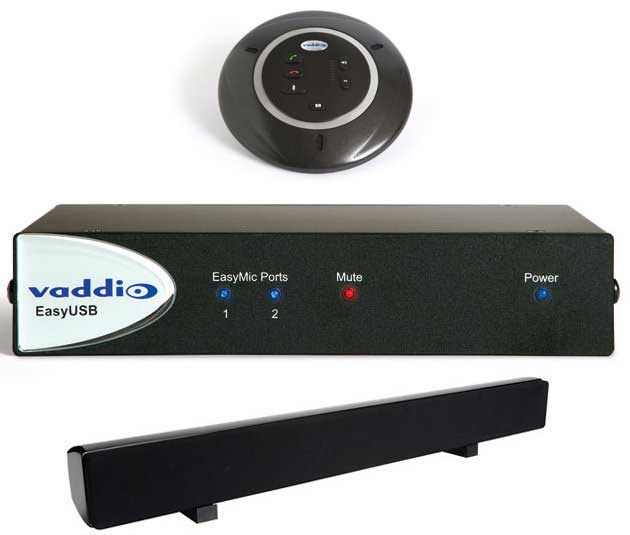

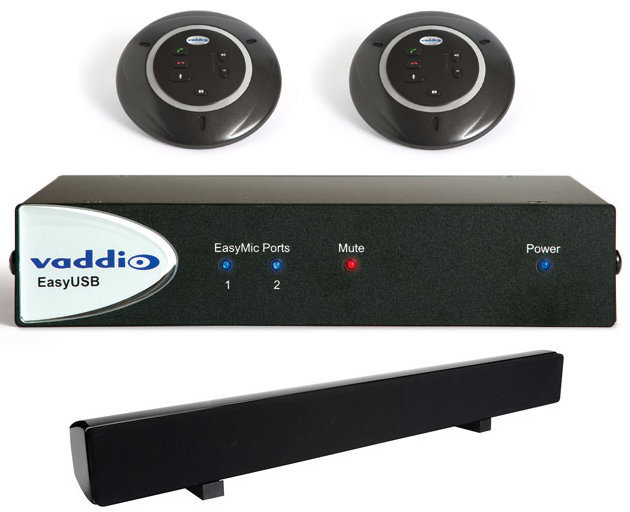

Vaddio EasyTalk USB System B Bundle Includes:

  • One EasyUSB Mixer/Amp
  • Two EasyMic Table MicPODs with integrated EchoCanceling
  • One EasyTALK Sound Bar Speaker

Vaddio EasyTalk USB System B Bundle Features and Specifications:

  • Supports up to two EasyMic Devices (MicPOD or Ceiling MicPOD) using RJ-45& Cat. 5 for audio, control, and power (100 feet)
  • 2 x 20 Watt Class-D amplifier with 2-Pin Euro Terminal
  • Connects to PC as a USB sound device
  • USB 2.0 Audio Class Device (UAC) / no drivers required
  • Auxiliary Line Input and Output
  • Unbalanced Line Input and Output (RCA)
  • Part Numbers EasyUSB 999-8530-000 (North America) EasyUSB 999-8530-001(International)
  • Audio Specifications Frequency Respones:20 HZ to 20KHZ, Dynamic Range:>90dB, THD + Noise: <.02%
  • Analog Line Input Connector: RCA (Unbalanced), Impedance:10Kohm, Nominal Level: -10dBu
  • Analog Line Output Connector: RCA (Unbalanced), Impedance:10Kohm, Nominal Level: -10dBu
  • Amplifier Connector: 2- Pin Molex Euro, Impendence: 8 ohm, AmplifierOutput: 2X20 Watts, THD + Noise: <.2% at 1/3 power
  • USB Audio Interface Connector: Type-B, PC Audio Controls: Mute &Volume, PC HID Controls: On/Off Hook
  • EasyMic Ports Connectors: Two (2)- RJ 45-F, Proprietary Interface, 100’(30.4m) Cat-5 Cable Distance Max
  • Audio Processing Settings 8-Position Dip Switch- Mixing Modes, Compressor, Filter, Delay
  • User Indicators Communications Status, Mute, Power
  • Power Supply 18 VDC, 2.75 Amp
  • Serial Control Protocol RS-232 (external control)
  • Operating Temperature 32° to 104° F (0° to 40° C) / 20% to 80% Relative Humidity
  • Power Consumption Maximum 40 watts
  • Dimensions (WxLxH) : 8.375” x 6.0” x 1.72” (212.73 x 152.4 x 43.7)
  • Weight: 1.42 lbs (.65kg)

EasyMic MicPOD Features:

  • Built-in echo cancelation
  • Three unidirectional condenser elements for 360° coverage
  • AEC per microphone element
  • Typical pickup coverage of 6-10 feet
  • DSP integrated into the Pod for hands-free conferencing
  • Master Mute & Volume Controls plus On/Off Hook (if supported in UC Client)
  • Home run to EasyUSB Mixer/Amp with standard Cat. 5 up to 100 feet (audio, control, power)
  • Low profile design with diameter of 7.5"

EasyTalk Sound Bar:

When added to the EasyUSB Mixer/Amp, the EasyTALK Sound Bar offers high-fidelity voice support of far-end audio for any conference application. It can be positioned above or below a flat screen TV or sit freestanding on a desk or credenza. A pair of rubber speaker feet are supplied for tabletop mounting.

  • 3.75" paper cone woofers for superior dynamic impact
  • 0.625" aluminum tweeters for superb clarity
