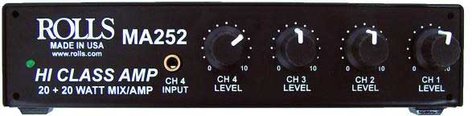

Rolls MA252 4-Channel Stereo Mixer Amplifier, 20W per Channel, 3x RCA and 1x XLR Input

Rolls' MA252 is a compact class D stereo amplifier with a 4-channel stereo mixer built in. It has 20 watts per channel @ 4 Ohms. The class D low-heat design gives the MA252 the ability to be mounted in very tight applications. It will work great in ceilings by projectors, or anywhere small and heat-free amplification is required. The MA252 is in an all metal chassis and weighs 1 pound. The MA252's overall dimensions are 6.75" x 3.5" x 1.5". Bottom mounts are provided for permanent installations. The MA252 has an included 24 VDC external power supply. The 4-channel mixer section consists of 2 separate RCA stereo inputs, along with an XLR mic input and a 3.5mm (1/8") stereo input perfect for an ipod or laptop computer type input. Phantom power is supplied to the XLR input by a switch on the back of the MA252.

Rolls MA252 Specifications:

• Line Input Impedance: 10K Ohms line, 600 Ohms mic
• Power Output: 20W x 2 @ 4 ohms
• Voltage Gain: 55 dB mic, 30 dB line
• Maximum Supply Voltage: 24 VDC
• THD: 0.05% typical
• Efficiency: 85%
• Bandwidth: 20Hz - 25 kHz
• Size: 6.75" x 3.5" x 1.5"
• Weight: 1 lb
