Marshall Electronics V-MD72-HDSDIX2
Dual 7" 3RU High Resolution LCD Rack Mount Monitor with Dual HD-SDI Modules and Loop-Through

OUR PART #:  V-MD72-HDSDIX2

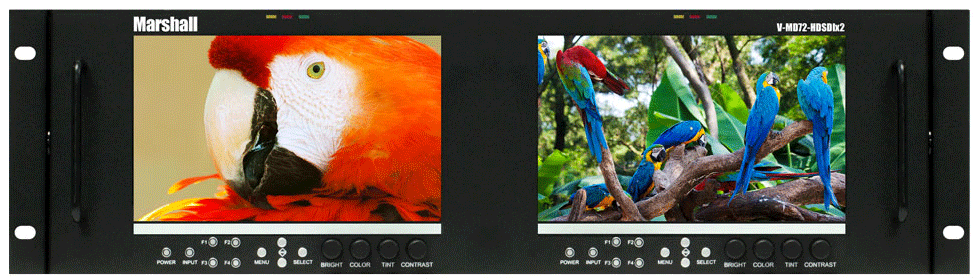

The V-MD72-HDSDIx2 offers two 800 x 480 LED-backlit LCDs in one single configuration, along with excellent viewing angles.
Learn More
Our Price: $2,432.50
List Price: $2,862.00
You save 15%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics V-MD72-HDSDIX2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The V-MD72-HDSDIx2 offers two 800 x 480 LED-backlit LCDs in one single configuration, along with excellent viewing angles. The V-MD72-HDSDIx2 feature list includes Status Display, False Color Filter, IMD (In-Monitor Display), Network Control, Markers, Freeze Function, Color Temperature Presets, RGB Gain / Bias Adjust, Pixel-to-Pixel, Blue Gun, Hard Tally, user-definable function buttons, and more. A variety of modules will become available including the availability of 3G-SDI with loop-through, Fiber-Optic input/output modules, and more.

Marshall's MD monitors integrate Telecast Fiber System's TeleCube™ Fiber-Optic HD-SDI transmission input/output modules. These fiber modules deliver the industry's broadest range of digital rates while maintaining pristine signal quality that broadcasters and integrators demand.

Specifications:

  • Display (Viewing Area):  7" x 2
  • Resolution (Pixels):  800 x 480
  • Aspect Ratio:  16:10
  • Pixel Pitch (h x v):  0.1905mm x 0.1905mm
  • Brightness (in cd/m²):  450
  • Included Inputs:  Dual HD-SDI
  • Optional Input Modules:  HDMI, DVI, 3G-SDI, FIBER-OPTIC
  • Dimensions (W,D,H):  18.9" x 5.2" x 1.2" (48 x 13.2 x 3 cm)
  • Weight:  5 lbs (2.3 kg)
  • Power Consumption:  3 Amp @ 12VDC
