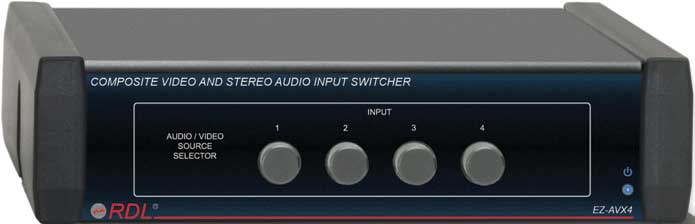

Radio Design Labs EZ-AVX4
4x1 Composite Video & Stereo Audio Input Switcher

OUR PART #  EZ-AVX4

Our Price: $195.75
List Price: $261.84
You save 25%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

Radio Design Labs' EZ-AVX4 is a stereo audio and composite video source selector.  Line-level audio and video outputs are provided on RCA jacks.  This unit is ideal as a four input source selector feeding an associated video monitor or recorder.  The EZ-AVX4 is used in stores, houses of worship, restaurants, clubs, security systems and commercial A/V systems.

Features:

  • Radio Design Labs' PS-24AS power supply is included
  • Four Input Source Selection
  • Video Inputs Accept NTSC or PAL Signals
  • Unbalanced Stereo Audio Inputs and Output
  • Simultaneous Audio and Video Switching
  • Audio and Video on Color-Coded RCA Jacks
  • Inputs and Outputs on Rear Panel
  • Full-Size Interlocking Pushbuttons on Front Panel

Advantages:

  • Gold-Plated Connectors
  • Easy-to-Push Large Buttons
  • Solid-State Audio and Video Switching
  • Switch Noise Cannot Affect Signal Quality

Typical Performance:

Audio Section:

  • Inputs (4): Stereo on dual RCA jacks, > 10 kO, -10 dBV nominal, +10 dBV max.
  • Gain: Unity, nominal
  • Output: Stereo on dual RCA jacks, -10 dBV nominal, +10 dBV max.
  • Frequency Response: 10 Hz to 20 kHz (±0.01 dB)
  • THD+N: < 0.02%
  • Off Attenuation: > 95 dB

Video Section:

  • Inputs (4): RCA Jacks, 1Vp-p, 75 O
  • Gain: Unity, nominal
  • Output: RCA Jack, 1Vp-p, 75 O
  • Bandwidth: > 350 MHz
  • Differential gain: < 0.1%
  • Differential phase: < 0.1%
  • Off Attenuation: > 40 dB @ 10 MHz
  • Noise: < -90 dB ( 1 Vp-p video, 75 O)
  • 24 Vdc power supply current: 85 mA (idle), 100 mA (max.)
  • Case dimensions: 5.75" W x 5" D (14.6 x 12.7 cm)
  • Mounting size: 1/3 rack width
