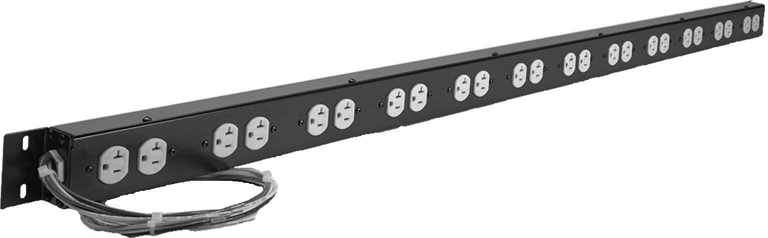

Juice Goose PD1A
PD Series 12-Outlet Power Strip

OUR PART #:  PD1A

The Juice Goose PD Series is a quick, economical and convenient resource for multiple circuit power distribution. It is far less expensive than homemade options.
Learn More
Our Price: $357.00
List Price: $389.00
You save 8%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Juice Goose PD1A
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Juice Goose PD Series is a quick, economical and convenient resource for multiple circuit power distribution. It is far less expensive than homemade options.

Features:

  • 60” long strip with 12 duplex receptacles.
  • Hardware – Flexible metal “Greenfield” conduit is standard. Other conduit options are available at additional cost. As an alternate, a threaded fitting (chase nipple) can be added to the chassis to fasten to a junction box when the PD is installed.
  • Grounding – Standard wiring configuration includes individual neutral leads for each circuit and a common ground. The standard duplex receptacles used in the PD Series are grounded to the chassis. Isolated ground (“IG”) receptacles can be specified on the menu as may individual grounds for each circuit.
  • Receptacle Selection – The standard receptacles for a PD Series unit are black 20 amp NEMA 5/20R duplex. Standard isolated ground devices are available in orange.
  • Number of Circuits – The PD1A and PD1B can contain a maximum of nine 20 amp circuits.
  • Wire Harness and Conduit Length – Different installations may require different lengths of wire feed out of the PD Series chassis.
  • Mounting Brackets – The PD1A and PD1B mount with a one inch right angle bracket at the top and bottom of the chassis. For the PD1A there is also a third bracket mid way on the side of the chassis. As an alternative, for Middle Atlantic and similar racks, mounting hardware can be specified to make the distance between mounting points twenty one inches.
  • Custom Additions – Any number of non-standard components can be added to a PD Series unit, including power cords and switches. While the PD1 can accommodate some custom features, the PD3 is particularly well designed for a broad array of non-standard components including thirty amp twist lock connectors. Contact Full Compass to discuss any special requirements.

Specifications:

  • Chassis Dimensions (L,W,D):  60" x 2.5" x 1.62" (152.4 x 6.35 x 4.11 cm)
  • Material:  Cold Rolled Steel with Textured Black Powder Coat Finish
  • Weight:  16 lbs (7.25 kg)
  • Wire Harness Hardware:  Chase Nipple or Greenfield Flex Metal Conduit (Non-metallic conduit and other hardware options available)
  • AC Outlets:  20 Amp NEMA 5/20R Duplex, PD1A has 12
  • Max Number of Circuits:  9
  • Wire Gauge:  12 AWG Stranded
    Type:  Stranded THHN, 600 VAC, 60 Degrees C, Max
  • Circuit Orientation:  Grouped, Alternating, or Special Design
  • Wire Harness Location:  Top or Bottom
  • Wire Harness Length:  Any Length Specified in Feet
  • Conduit Length:  Any Length Specified in Feet
