Product Overview
The next generation version of the CM62-EZ with improved and additional features.

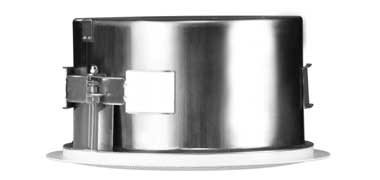

Note: Shown in white finish.
Features:
- One 6.5 in (165 mm) treated fiber woofer with cloth surround and one 1.0 in (25.4 mm) silk dome tweeter.
- Easy-access, six-position tap switch for 25/70.7/100-volt and 16 ohm transformer bypass position allows for easy ordering, stocking and installation.
- Reduced amplification costs with max¬imum efficiency including 90 dB sensitiv¬ity and 16-ohm impedance.
- Superior voice intelligibility with a 10 kHz coverage angle of 80° (Indepen¬dently verified).
- Incorporates a painted steel grille for lasting durability.
- Adaptable to material thicknesses ranging from 0.04 in (0.9 mm) to 1.60 in (40.6 mm).
- UL 1480 (UEAY) and 2043, CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved.
- High-quality black or white painted finish. Custom colors available.
- Included accessories: Tile bridge, UL listed 0.5-inch flex conduit clamp, paint shield and two wire nuts.
- Optional accessories: Color-coded (green) pre-construction bracket (AC-CMEZ6/8-PCB), junction box (AC-CM-EZ-JBOX).
Specifications:
- Frequency Response(-3 dB) 125 Hz - 20 kHz
- Low Frequency(-10 dB) 65 Hz - 22 kHz
- Sensitivity 90.0 dB
- Power Capacity RMS 50 W
- Max SPL dB @ 1 M 107.0 dB
- Nominal Impedance 16 ohm
- Tweeter 1.0 in. Silk
- Connections Four position ceramic terminal strip
- Visible Height 8.6 mm (0.34 in)
- Visible Diameter 298.5 mm (11.75 in)
- Backcan Height 146.1 mm (5.75 in)
- Backcan Width 245.6 mm (9.67 in)
- Weight 3.6 kg (8.0 lbs)
- Shipping Weight 4.1 kg (9.0 lbs)
- Colors Black or white
