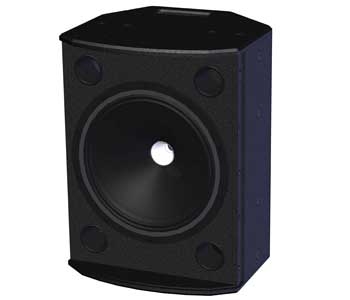

Tannoy VXP12-BLACK
12" Powered Speaker

OUR PART #  VXP12-BLACK

Call for price! Not available online.


Recommended Accessories

VXP Series combines the class-leading performance of the passive VX Series with Lab.gruppen’s new Integrated IntelliDrive Energy Efficient Amplifier module, bringing ultra reliabl and perfectly matched power to the equation for audible superiority in a self-powered box.

Conceived, engineered and built with precision in the United Kingdom, VXP Series represents a brand new evolution in Tannoy’s core philosophies in self-powered loudspeaker design. Tannoy VXP 12 combines the technological refinement of the passive VX 12 with the brand new IDEEA™ integrated power module from Lab.gruppen. The result is a compact, ultra-reliable and efficient, self-powered loudspeaker offering a punchy and sonically superior solution for small-medium scale sound reinforcement and high performance speech reproduction where clarity and vocal character are paramount. The VXP 12 has also been acoustically matched with the wider range of VXP Series models, making it a perfectly capable component within much larger installations.

At the heart of the IDEEA module is a patented Class D output stage capable of high power levels with very low distortion and minimal current draw – all with a net operating efficiency in excess of 80%. A universal switching power supply accepts any mains voltage from 70 – 265V ( /- 10%) at 50Hz or 60Hz through the appropriate IEC cord. In Auto mode, the speaker turns on with signal present and switches to standby mode after 20 minutes of no input, in doing so reducing power consumption to less than 1 W (while in standby). Manual control mode allows the speaker to be turned on and off as required. Also provided is a switchable 90 Hz high-pass filter for use when adding a subwoofer.

Audio connection is via female XLR and power via PowerCON (included) on rear panel. VXP 12 is available in black or white textured paint finish as standard, with matching grilles, and is also available in custom matched RAL colours as an option.

Features:

  • 305mm (12”) Dual Concentric full-range driver
  • Tightly controlled 90 degree dispersion for optimum coverage and forwardgain
  • Peak output 127 dB
  • Integrated Lab.gruppen IDEEA electronics providing ultra-reliable Class Damplification
  • Versatile mounting via optional custom designed hardware
  • Pole-mountable for small and medium scale portable PA applications
  • Exceptional sound and performance for a cabinet of this size
  • Rugged and highly compact birch plywood enclosure
  • Available in black or white textured paint finish – custom coloursoptional
  • XLR input and link, PowerCON mains (included)

Specificiations:

PERFORMANCE

  • Frequency Response (-3 dB) (1)
  • Full Range Mode  70 Hz – 25 kHz
  • Frequency Range (-10 dB) (1)
  • Full Range Mode  55 Hz - 38 kHz
  • Frequency Response (-3 dB) (1)
  • Hi-Pass mode  100 Hz – 25 kHz
  • Frequency Range (-10 dB) (1)
  • Hi-Pass mode  80 Hz – 38 kHz
  • Dispersion (-6dB)  90 degrees conical
  • Driver Complement  1 x 305 mm (12.00”) constant directivity DualConcentric™
  • Crossover  Passive 1 kHz with HF protection
  • Directivity Factor (Q)  9.6 (averaged 1kHz to 8kHz)
  • Directivity Index (DI)  9.8 dB (averaged 1kHz to 8kHz)
  • Rated Maximum SPL (2)  Average: 121 dB / Peak: 127 dB

CONSTRUCTION

  • Enclosure  36.4 litre, 15mm (enclosure) and 18 mm (front) birchplywood, vented and internally braced.
  • Finish  Textured black or white paint, with custom colours onrequest.
  • Powder coated perforated steel grille, Airnet cloth behind
  • Connectors
    1 x female XLR (input), 1 male XLR (link), 1 x NeutrikPowercon
  • Controls & Indicators
    Level Control
    Power LED (Blue)
    SignalLED (Green)
    Limit/Protect LED (Red)
    Full Range / HighPass Switch(110Hz)
    Power Mode Switch
    Power Switch
  • Fittings
    8 x M10 Flying inserts (portrait or landscape mounting), 8 xM10 yoke bracket inserts
    1 x Integrip carrying handle
    Blanking plate foroptional VTH pole mount
  • Dimensions (H x W x D)  486 x 370 x 360 mm (HxWxD) (19.1 x 14.6 x14.1” )
  • Net Weight  19.0 kg (41.9 lbs)
  • Shipped Weight  21.5 kg (47.4 lbs)

ELECTRONICS

  • Maximum signal input for clip  'Input attenuator at Maximum: 4.5dBu
    (Hard clip will occur at 14.5 dBu input signal)
  • Dynamic Range  '106 dB
  • Efficiency  >90%
  • Damping Factor  >400 ref 8 ohm at 1 kHz
  • Distortion  <0.05% @ 1 kHz -3 dB output (22 kHz bandwidth)
  • Input Impedance  10 kohm unbalanced, 20kohm balanced

PSU SPECIFICATIONS

  • Input Connector  Locking Neutrik Powercon
  • Other features  Inrush current limiter
  • StandBy power consumtion  <1 W
  • Idle power consumption  <15 W
  • Maximum power consumtion  300 W
