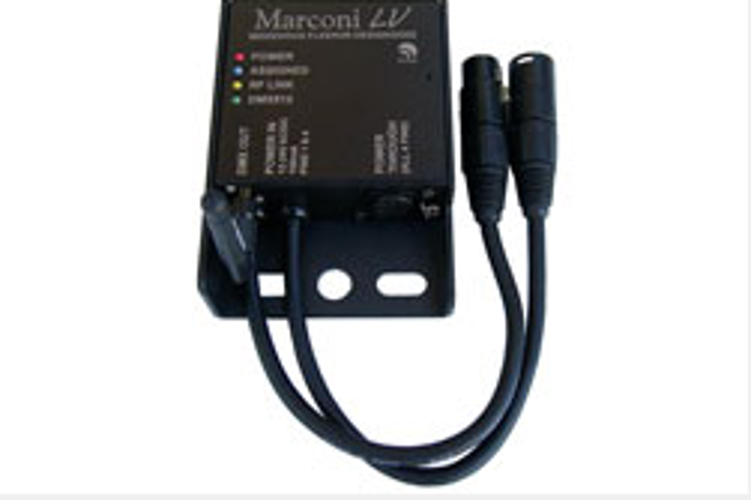

Doug Fleenor Designs MARCONI-LV
Wireless DMX512 Splitter, 5-Pin


The Marconi "low voltage" (Marconi LV) is identical in performance to the Marconi SP but is powered by low voltage instead of line voltage and has only one DMX512 output.
Learn More
Our Price: $596.97
List Price: $737.00
You save 19%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Doug Fleenor Designs MARCONI-LV
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Marconi "low voltage" (Marconi LV) is identical in performance to the Marconi SP but is powered by low voltage instead of line voltage and has only one DMX512 output. The LV is designed to mount to our LED300 power supply but can be used with any 24V system that provides power on pins 1 and 4 of a four pin XLR (color scroller for example). The LV may also be powered by an optional external supply, model Marconi LV PSU.

Marconi components are 100% compatible with W-DMX products from Wireless Solution as well as from other W-DMX partners.

Doug Fleenor Designs MARCONI-LV Specifications:

  • Output circuit: EIA-485 slew rate limited driverprotected by two self resetting fuses and two transient absorbing diodes.
  • Connectors:
    • DMX512: Gold plated 5 pin NeutrikPin 1: Common, Pin 2: Data-, Pin 3: Data+, Pins 4&5: n/c
    • Power: Gold plated 4 pin Neutrik Pin 1: Power, Pins 2&3: connected through, Pin 4: Power
    • Antenna: Gold plated Reverse Polarity SMA connector
  • Antenna: A 2dB whip antenna is supplied. Gainantennas are available to increase the reception range.
  • User controls: Recessed CONFIG button. Activatedusing bent paper clip (not supplied).
  • Indicators:
    • Red: POWER
    • Blue: ASSIGNED, illuminates when the unit is assigned to a transmitter
    • Yellow: RF LINK, illuminates when the assigned transmitter is on and within range
    • Green: DMX512, illuminates when DMX512 is available at the output
  • Power in: 12 to 24 VDC or 9 to 18 VAC, 100 mA,Polarity independent (internal diode bridge)
  • Color: Black with laser engraved nomenclature
  • Size & weight (HxDxW): 1.5" x 4.75" x 3.5", 1pound
  • Mounting:
    • A screw and fender washer are provided to mount the Marconi LV to the handle of an LED300 power supply
    • A 1/2" hole is provided for C clamp or half coupler mounting
    • Two 3/8" X 3/4" slots are provided for safety cables or other mounting techniques.
