Doug Fleenor Designs RERUN-R3
3-Universe Lighting Controller, Rackmount

OUR PART #:  RERUN-R3

The Rerun Rack Mount is a multi-universe lighting controller capable of storing up to ten 40-minute shows. Shows are recorded by capturing the output of a DMX512 console.
Learn More
Our Price: $2,189.57
List Price: $2,851.00
You save 23%!
Write the first review.
Doug Fleenor Designs RERUN-R3
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Rerun Rack Mount is a multi-universe lighting controller capable of storing up to ten 40-minute shows. Shows are recorded by capturing the output of a DMX512 console. The recorded show start and end points may be trimmed non-destructively. Each show can be set to hold the last look, loop to itself or link to another show. Shows are started by pressing one of the ten show buttons. The Rerun Rack Mount can support from one to sixteen universes.

Features:

  • Grand Master of show levels
  • HTP merging of the DMX input
  • Loss of DMX fade out or hold last look
  • Button lockout
  • End of show stop transmission

Specifications:

  • Connector: DMX512 Input
      -  Gold plated 5 pin Neutrik
  • Connector pin out: DMX512 Input
      -  1 (C) DMX512 common
      -  2 ( -) DMX512 data -
      -  3 (+) DMX512 data +
  • Input circuit: ESD protected EIA-485 transceiver (LT1785)
  • Output circuit:  ESD protected EIA-485 transceiver (LT1785)
  • Isolation:  None. DMX input is not isolated from DMX output.
  • Indicators:
      -  Ten green SHOW LEDs
      -  One green PAUSE LED
      -  One green LOOP LED
      -  One yellow START LED
      -  One yellow END LED
      -  One red INPUT/RECORD LED
  • User controls:
      -  Ten [SHOW] buttons
      -  One [PAUSE] button
      -  One [LOOP] button
      -  One [REWIND] button
      -  One [FORWARD] button
      -  One recessed [RECORD] button
  • Option jumpers:
      -  INSTALLED
          *  JP1  Recording enabled
          *  JP2  Run show on DMX512 loss
          *  JP3  Normal operation
          *  JP4  Normal operation
          *  JP5  Unused
          *  JP6  Normal operation
        -  REMOVED
          *  Recording/editing disabled
          *  Hold last look on DMX512 loss
          *  Run hardware test
          *  Disable operation
          *  Unused
          *  Erase Memory (DANGER!)
  • Power input: Attached universal power supply 100 - 240VAC, 50/60 hertz, 5 watts
  • Color:  Case: Clear with yellow liner
  • Keyboard: Black anodized with white silk screened nomenclature
  • Size: 7.50"w x 5.06d" x 3.12"h

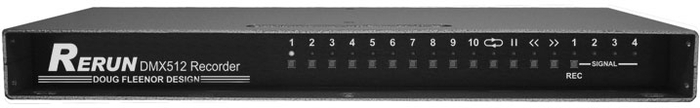

Note: Product shown in image is for illustrative purposes only - actual product is 3-universe controller.
