Doug Fleenor Designs APATHY
5-Pin Single Channel Console


The original Apathy controlled all 512 DMX levels with its single control knob.
Learn More
Our Price: $199.08
List Price: $237.00
You save 16%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

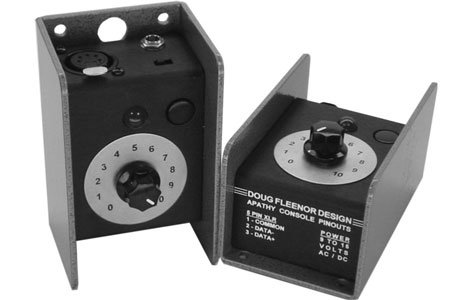

Doug Fleenor Designs APATHY
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The original Apathy controlled all 512 DMX levels with its single control knob. However this was too simplistic for some users so Doug Fleenor Design added the industry’s most hostile user interface to create the Apathy Minus. Now, through a complex timed sequence of button presses, any single DMX channel can be assigned to the knob. Once selected, channels may be easily incremented or decremented.

Doug Fleenor Designs APATHY Specifications:

  • Baud rate:  250 Kilobaud
  • Update rate:
      -  Under Battery power saver mode: 30Hzupdate when fading / 2Hz when idle
      -  Under External Power:22Hz update continuous
  • Output connector:  Gold plated 5 pin female (Neutrik D1 series)
  • Power input:  Battery powered by 9V battery (included), jack forowner provided external PSU
  • Chassis:  Tenth inch Aluminum with rubber feet. The four cornerholes, and a single ½" hole provide for many mounting options.
  • Color:  Front, Top, Bottom: Black
  • Back, Sides: Silver Hammertone
  • Size and weight:  4" x 2.5" x 2.25" 0.75lbs

Note: Some older DMX receivers will be unstable when receiving a 2Hz DMX512 signal. If this is the case remove the microprocessor in U1, bend pin 4 out, and reinsert processor into socket. Power save mode will be defeated however battery life will be severely shortened.
