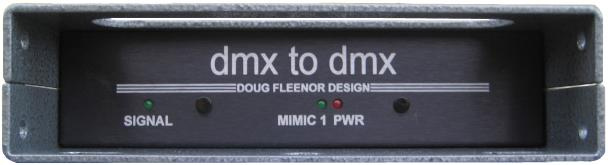

Doug Fleenor Designs DMX2DMX
DMX Regenerator

OUR PART #:  DMX2DMX

The DMX2DMX addresses issues associated with non-compliant DMX devices.
Learn More
Our Price: $625.32
List Price: $772.00
You save 19%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Doug Fleenor Designs DMX2DMX
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The DMX2DMX addresses issues associated with non-compliant DMX devices. Many lighting devices claim to accept DMX512 signals, but are unable to support the wide variety of timing parameters allowed by the DMX512 standard. The result is flickering, flashing, or erratic operation. The DMX regenerator addresses these issues by receiving any DMX512 signal, buffering the data, and then re-transmitting the data under a well-defined set of timing rules. In addition to this, the input is fully opto-isolated to provide protection and to break potential ground loops.

Doug Fleenor Designs DMX2DMX DMX Regenterator Specifications:

  • Input circuit: EIA-485 receiver with 120 ohmtermination resistor between +Data and -Data
  • Input signal: 0.2 volts minimum, 12 volts maximum
  • Output circuit: EIA-485 driver
  • Connectors: Gold plated 5 pin Neutrik D-1 Series(3 pin connectors or terminal blocks optional)
  • Input to output delay: 1/100 second average, 1/50second maximum
  • Power input: 100 - 120 volts, 50/60 hertz, 12watts (208 - 240 volt optional)
  • Color:
      -  Top, bottom and sides: Silver hammertone
     -  Front and back: Black
  • Size: 6.5" deep, 1.7" high, 6.5" wide
  • Weight: 2.6 pounds
  • Rack mount option: For rack mounting, use optional rack kit modelRK6-1
