Product Overview
The DMX512 iPlayer interface receives a DMX512 input signal and outputs RS-232 commands to the iPlayer. The interface uses three consecutive DMX512 channels: trigger mode, show selection, and global intensity.
The interface is compatible with iPlayer 2 , iPlayer 3 and Light System Manager which are products (and registered trademarks) of Color Kinetics Incorporated.
Doug Fleenor Designs DMX2IPLAY Specifications:
- Input baud rate: 250 Kb/s
- Input circuit: ESD protected EIA-485 transceiver(LT1785)
- Input signal: 3 volts minimum, 12 volts maximum
- Input connectors:
- - Gold plated 5 pin NeutrikD-1.
- - Pin 1 =common, Pin 2 = Data-, Pin 3 = Data+.
- - Through connector: Gold plated female 5 pin XLR (Neutrik D-1 series).All pins wired through.
- DMX profile: 3 or 5 consecutive channels
- - 3consecutive channels
- * trigger mode
- * show selection
- * global intensity
- - 5 consecutive channels
- * trigger mode
- * hundreds
- * ten
- * ones
- * global intensity
- - Note: Contact Doug FleenorDesign for more information on this mode
- Output baud rate: 9600 bps, 8 data bits, noparity, 1 stop bit
- Output circuit: RS-232 driver (MAX232)
- - Outputs are short circuit protected but not over voltage protected.
- Output signal: RS-232 driver yields anapproximate +/- 10 volt signal

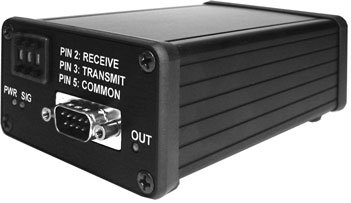

- Output connector: DB9 (male) Pin 2 = Receive,Pin 3 = Transmit, Pin 5 = signal ground. (straight DB9 Male to Female, cableprovided)
- User interface: Start address set via a threedigit thumbwheel switch
- Indicators: Red power LED, Green DMX signal LED,Green RS-232 transmit LED
- Power input: Universal power supply 100 -240VAC, 50/60 hertz, 5 watts
- Color: Black anodized
- Size and weight:
- - Chassis 5.3" X 3.2"w X 1.8"h, 12ounces
- - Power supply 2.2"l X 1.9"w X 1.0"h, 5 ounces
