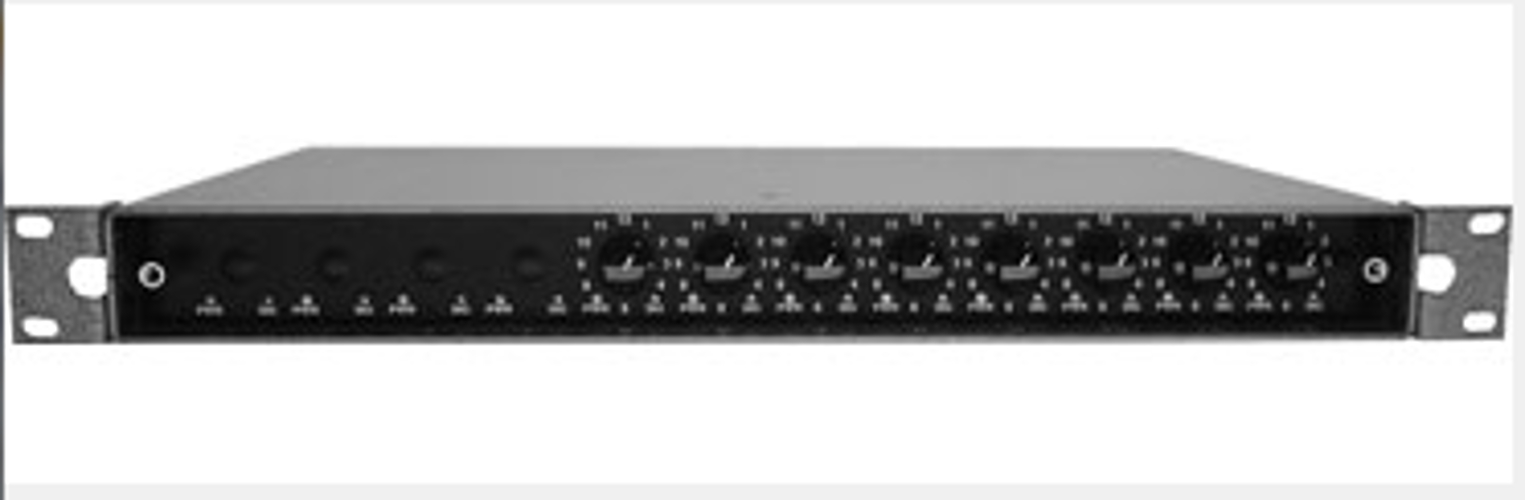

Doug Fleenor Designs RR-O DMX Rotor-Router
12 Outputs

OUR PART #:  RR-O

The Rotor-Router is a DMX512 distribution system featuring up to 12 inputs and an unlimited number of outputs.
Learn More
Selected Model Price: $2,291.71
List Price: $2,984.00
Save up to 23%!
Write the first review.
Doug Fleenor Designs RR-O DMX Rotor-Router
Select a Model: (shipping times are approximate)

Related Products

The Rotor-Router is a DMX512 distribution system featuring up to 12 inputs and an unlimited number of outputs. A system typically consists of an input module and one or more output modules. Both modules are 1.7"h x 19"w x 12"d and are normally rack mounted. A plexiglass security cover is included to prevent accidental switch changes.

NOTE: This product uses slew-rate-limited output drivers. Slew-rate-limited drivers minimize EMI and reduce reflections caused by improperly terminated cables.

Doug Fleenor Designs RR-O DMX Rotor-Router Specifications:

  • Input circuit: EIA-485 receiver. A terminationplug is required if the output module is separated from the input module by more than six feet.
  • Input connector: DB-25P (male)
  • Output circuit: EIA-485 transmitter
  • Output connectors: Gold plated 5 pin female Neutrik D-1 series (terminal connections optional)
  • Isolation: 2500 volt optical coupler, 1500 volt split bobbin transformer
  • Power input: 100 - 120 volts, 50/60 hertz, 12 watts (208 - 240 volt optional)
  • Size & Weight (HxWxD): 1.74" x 19" x 12", 9 pounds
