Doug Fleenor Design SW3 DMX A/B Switch Box, 3 Universe, 3-Outputs

This series of selector switches was specifically designed to switch DMX512 signals. Originally designed to switch between primary and backup consoles, these switches are often used to select from two (or more) input locations. The SW1 switches a single DMX512 universe (one A input, one B input, one output). The SW4 switches four DMX512 universes (four A inputs, four B inputs, four outputs).

Doug Fleenor Designs SW3-FLEENOR Specifications:

• Input connectors: Gold plated 5 pin male(Neutrik D-1 series). 3 pin or terminal block optional.
• Output connectors: Gold plated 5 pin female(Neutrik D-1 series). 3 pin or terminal block optional.
• Switched contacts: Pins 2 and 3 (Data- andData+). Other contacts switched optional.
• Power input: None required on manual switchboxes. User specified on "remote switch" units.
• Warranty: Five years on defects inmanufacturing.
• Switch: Two position rotary switch.
• Color: Brushed aluminum.
• Size and weight (DxHxW): 8.0" x 1.73" x 16.7", 3.0 pounds (19"rack adapter available).

Note

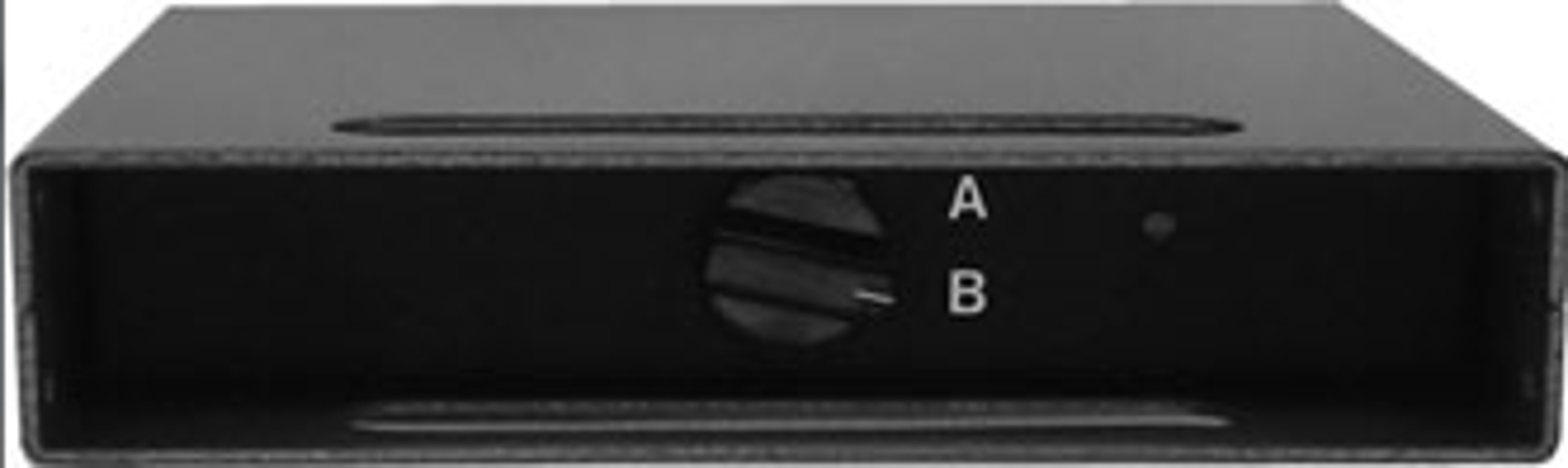

NOTE: Product shown in image is for illustrative purposes only - actual product is 3-universe A/B Switch Box.
