Doug Fleenor Designs 121Q
4 Universe, 1 in 1 out

OUR PART #:  121Q

For the receiving end of long control runs the DMX512 Isolation Amplifier is recommended. It contains separate input and output power supplies.
Learn More
Selected Model Price: $908.82
List Price: $1,122.00
Save up to 19%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Doug Fleenor Designs 121Q
Select model: (shipping times are approximate)
Qty:

Similar Products

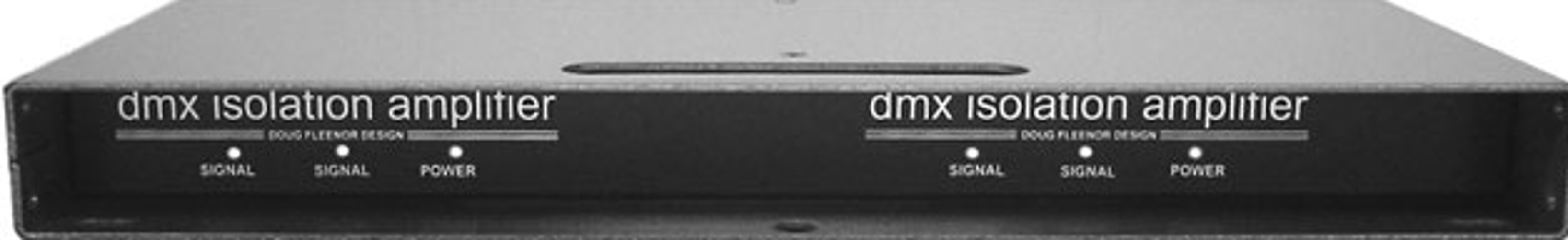

For the receiving end of long control runs the DMX512 Isolation Amplifier is recommended. It contains separate input and output power supplies. This allows the input circuitry to receive signals as low as 0.2 volts. These are optionally available in any number of configurations for systems with more than one DMX512 universe. Input and output circuitry and specifications are identical to that of DFD's standard splitters.

The model 121D and 121Q contain the same isolation and protection circuitry used in the 121, but have multiple isolators in a single enclosure. They are ideally suited for use with control consoles which have multiple DMX outputs. The model 121D has two isolators and the 121Q has four isolators.

Doug Fleenor Designs 121Q Specifications:

  • Input circuit:  EIA-485 receiver with 120 ohmTermination resistor between +Data and -Data (Units with optional feed throughconnectors do not have internal termination)
  • Input signal:  0.2 volts minimum, 12 voltsmaximum
  • Output circuit:  EIA-485 driver
  • Connectors:  Gold plated 5 pin Neutrik D-1Series (3 pin connectors or terminal blocks optional)
  • Feed through:  A non-isolated feed throughconnector is optional
  • Isolation: 2500 volt optical coupler, 1500 voltsplit bobbin transformer
  • Power input: 100 - 120 volts, 50/60 hertz, 12watts (208 - 240 volt optional)
  • Color:
      -  Top, bottom and sides: Silver hammertone
      - Front and back: Black
  • Size (DxHxW): 121Q  6.5" x 1.7" x 16" (19" Rack Kits Available)
Rack Kit
Doug Fleenor Designs RK16-1 Rack Kit
This unit is a rack kit; one 16" wide gray chassis in 1U.
