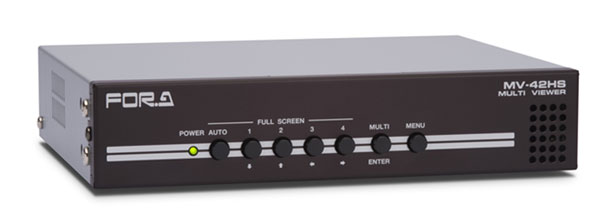

FOR-A Corporation MV-42HS
HD/SD-SDI Quad Multi-Viewer

OUR PART #:  MV-42HS

The MV-42HS is a 4-channel multi viewer that resizes and display up to 4 inputs of HD-SDI and SD-SDI signals on a single screen.
Learn More
Our Price: $1,536.00
List Price: $1,600.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

FOR-A Corporation MV-42HS
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The MV-42HS is a 4-channel multi viewer that resizes and display up to 4 inputs of HD-SDI and SD-SDI signals on a single screen. Audio level metering of SDI embedded audio signals is provided allowing audio signal presence to be monitored. The MV-42HS is most suitable for monitoring systems with mixed HD-SDI and SD-SDI input signals.

Features:

  • Support for mixed input of HD-SDI and SD-SDI signals (Mixed and asynchronous input supported)
  • Support for mixed input of analog composite (option)
  • Audio level metering for HD/SD-SDI embedded audio signals (Up to 8 channels display)
  • HD-SDI and DVI-D (1920 x 1080 or 1280 x 720) high definition image output
  • Full screen, 2-split (right and left), and quad screen output selectable
  • Video loss detection
  • Display of ancillary time code (ATC) embedded on HD/SD-SDI input signals
  • Title display of up to 16 characters for each input (alphanumeric and symbol)
  • With the interface option, genlock input, color selectable (red and green) tally indicator display, remote control via LAN, and date/time display can also be supported.

Specifications:

  • Video Input
      -  4 inputs in the following video formats (Mixed input, asynchronous acceptable)
      -  HD-SDI: 1.485 Gbps or 1.485/1.001 Gbps 75O BNC, Color format: YCbCr (4:2:2), Quantization: 10-bit
      -  SD-SDI: 270 Mbps 75O BNC, Color format: YCbCr (4:2:2), Quantization: 10-bit
  • Video Format: 1080/60i, 1080/59.94i, 1080/50i, 1080/30p, 1080/30PsF, 1080/29.97p, 1080/25p, 1080/25PsF, 1080/24p, 1080/24PsF, 1080/23.98p, 1080/23.98PsF, 720/60p, 720/59.94p, 720/50p, 720/24p, 720/23.98p, 525/60 (NTSC), 625/50 (PAL)
  • Video Output
      -  HD-SDI: 1 output, 1.485 Gbps or 1.485/1.001 Gbps 75O BNC, Color format: YCbCr (4:2:2), Quantization: 10-bit * Embedded audio is unsupported
      -  DVI-D: 1 output, DVI-D connector, Color format: RGB, Quantization: 8-bit * HDCP is unsupported
  • Output Video Format: 1080/59.94i, 1080/50i, 720/59.94p, 720/50p (* No input/output frame rate converter. Frame rate difference between input and output may result in the repeat frame or drop frame.)
  • I/O Delay Max.: 1.5 frames
  • Screen Display: Full screen, 2-split screen, Quad screen
  • Audio Level Metering: Audio level metering for HD/SD-SDI input signal embedded audios (Up to 8 channels)
  • Time Code Display:  Embedded time code display for HD/SD-SDI signals
  • Title Display: Max.16 characters x 1 line for each input channel, Character types: Alphanumeric characters and symbols
  • Data Backup: Stores the setting data to EEPROM
  • Interface: RS-232C: 9-pin D-sub (male) x 1 Baud rate: 38,400 bps, data length: 8-bit, stop bit: 1-bit, Parity: NONE
  • Temperature/Humidity: 0ºC to 40ºC / 30% to 90% (no condensation)
  • Power: 12 V DC (DC jack) *AC adaptor can be separately purchased.
  • Power Consumption: 22 VA (12 W) (at 100 V), 23 VA (11 W) (at 200 V)
  • Dimensions/Weight: 212 (W) x 44 (H) x 161 (D) mm / 1.25 kg
  • Accessories: Operation manual
  • Options: AC Adapter, Rack mount bracket set
