Shure FP135-G5
FP Wireless System with Bodypack and Plug-On Transmitters, 494-518

OUR PART #  FP135-G5

Our Price: $749.00
List Price: $936.00
You save 20%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

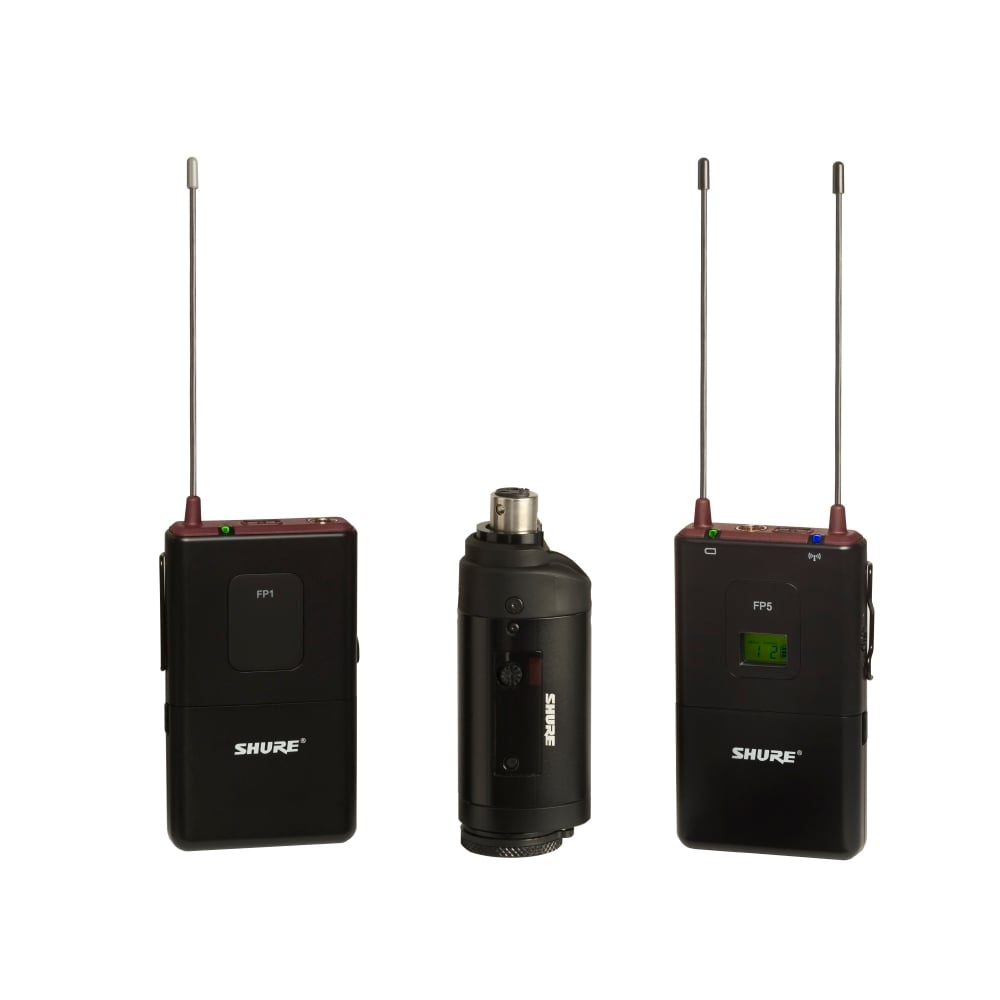

Portable wireless system including the FP5 Portable Receiver, the FP1 Bodypack Transmitter and the FP3 Plug-on Transmitter for use with virtually all dynamic XLR wired microphones. Features Shure Scan and Sync to quickly locate an open frequency for fast and easy setup in video, media and field production applications.

Featuring proven wireless technology, including Shure patented Audio Reference Companding, FP Wireless enables professional sound capture in demanding videography and electronic field production (EFP) environments.

Features:

  • Shure patented Audio Reference Companding for crystal-clear audio
  • Automatic frequency selection locates an open frequency at the touch of a button
  • Automatic transmitter setup instantly syncs the transmitter to the receiver frequency
  • Up to 20 compatible systems simultaneously
  • All components powered by 2AA batteries – no power cord required
  • Transmitter gain attenuation control manages input level
  • Receiver output level control manages output to camera/mixer
  • Diversity antennas for consistent reception of signal transmission
  • Rugged and reliable Shure construction
  • Compatible with all Shure wireless microphones capsules
  • All components compatible with SLX® Wireless systems

FP3 Plug-On Transmitter Features:

  • Automatic Transmitter Setup instantly syncs the transmitter to the receiver frequency
  • LED indicator for control lockout, IR RF sync, low battery indicator
  • Powered by 2AA batteries
  • Audio Input Gain for adjustment of audio level
  • Three-stage Audio Input Level Indicator
    Green: audio present
    Yellow: nominal peak
    Red: signal clip
  • Rugged and durable Shure construction

FP3 Plug-On Transmitter Specifications:

  • Gain Adjustment Range 0 to +40 dBV
  • Input Impedance 9 kO
  • RF Output Power 10 to 30 mW
    varies by region
  • Dimensions 117 mm x 36 mm x 43 mm (H x W x D)
  • Weight 160 g (5.6 oz.), without batteries
  • Power Requirements LR6 AA batteries, 1.5 V
  • Battery Life up to 12 hours (alkaline)

FP1 Bodypack Specifications:

  • Gain Adjustment Range -10 to +20 dBV
  • Input Impedance 1 MO
  • RF Output Power 10 to 30 mW
  • varies by region
  • Pin Assignments
    TA4M
    1: Ground (cable shield)
    2: + 5 V Bias
    3: Audio
    4: Tied through active load to ground (on instrument adapter cable, pin 4 floats)
  • Dimensions 108 mm x 64 mm x 19 mm (H x W x D)
  • Weight 81 g (3 oz.), without batteries
  • Housing Molded polycarbonate case
  • Power Requirements LR6 AA batteries, 1.5 V
  • Battery Life up to 12 hours (alkaline)

FP5 Portable Receiver Features

  • 24 MHz bandwidth
  • Up to 20 compatible systems simultaneously
  • Power LED with low battery indicator
  • RF LED indicates transmitter sync when illuminated
  • Powered by 2AA batteries – no power cord required
  • Receiver output level control manages output to camera/mixer
  • TA3F cable output to either XLR or 1/8” connectors (included)
  • Diversity antennas for consistent reception of signal transmission
  • Rugged and lightweight Shure construction
  • Camera Shoe Mount (included)

FP5 Portable Receiver Specifications:

  • Dimensions 108 mm X 64 mm X 19 mm (H x W x D)
  • Weight 81 g (3 oz.)
  • Housing Molded polycarbonate case
  • Sensitivity –108 dBm for 12 dB SINAD, typical
  • Power Requirements LR6 AA batteries, 1.5 V
  • Battery Life up to 12 hours (alkaline)

Audio

  • Type TA3F
  • Configuration Impedance balanced
  • Pin Assignments 1=ground, 2=hot, 3=cold
  • Maximum Audio Output Level: Ref. ±38 kHz deviation with 1 kHz tone:  –5 dBV (into 600 O load)
  • Impedance 200 Ohms
