Shure FP15/83-G5
FP Bodypack Wireless System with the WL183 Lav Mic, 494-518

OUR PART #  FP15/83-G5

Our Price: $499.00
List Price: $624.00
You save 20%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

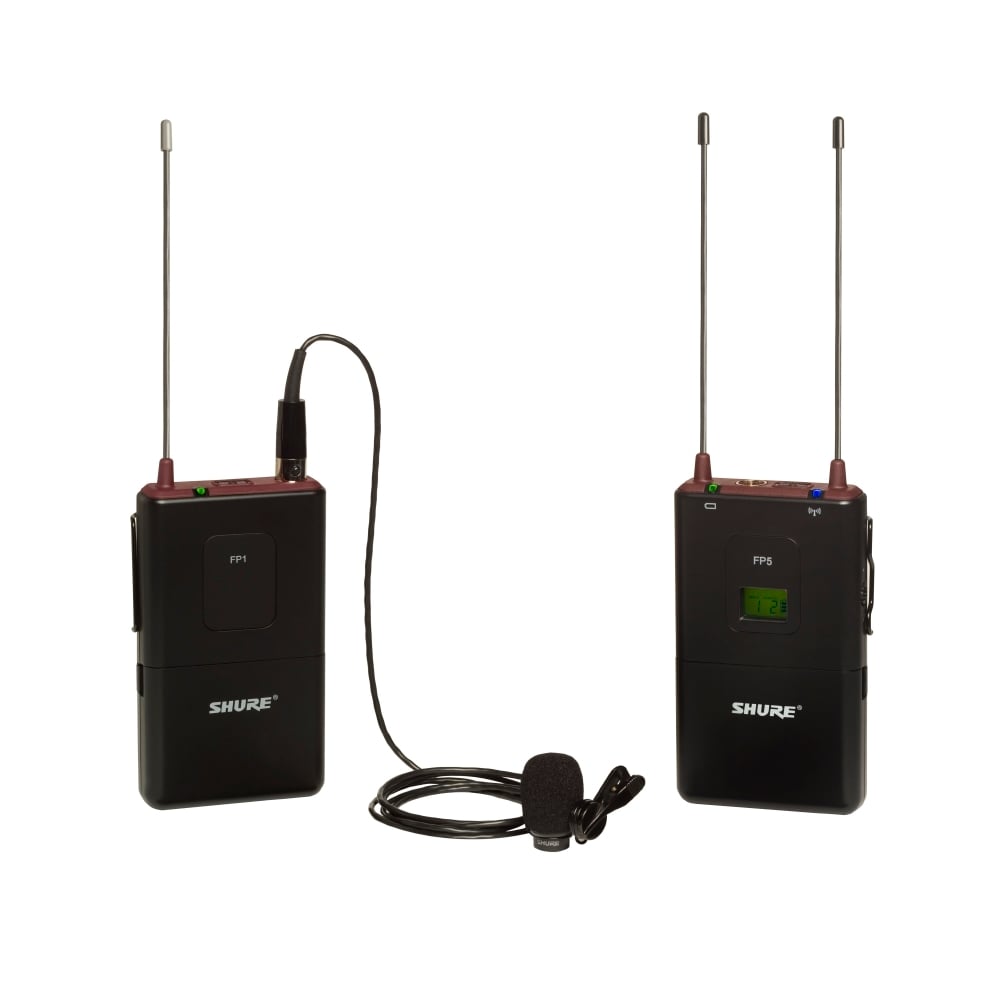

Portable bodypack wireless system with WL183 omnidirectional lavalier microphone and the FP5 bodypack receiver.

When portability and flexibility are required, FP Wireless is the ideal solution. FP Wireless offers intuitive portable receivers and XLR plug-on transmitters.

Featuring proven wireless technology, including Shure patented Audio Reference Companding, FP Wireless enables professional sound capture in demanding videography and electronic field production (EFP) environments.

Features:

  • Shure patented Audio Reference Companding for crystal-clear audio
  • Automatic frequency selection locates an open frequency at the touch of a button
  • Automatic transmitter setup instantly syncs the transmitter to the receiver frequency
  • Up to 20 compatible systems simultaneously
  • All components powered by 2AA batteries – no power cord required
  • Transmitter gain attenuation control manages input level
  • Receiver output level control manages output to camera/mixer
  • Diversity antennas for consistent reception of signal transmission
  • Rugged and reliable Shure construction
  • Compatible with all Shure wireless microphones capsules
  • All components compatible with SLX® Wireless systems

FP1 Bodypack Specifications:

  • Gain Adjustment Range -10 to +20 dBV
  • Input Impedance 1 MO
  • RF Output Power 10 to 30 mW
  • varies by region
  • Pin Assignments
    TA4M
    1: Ground (cable shield)
    2: + 5 V Bias
    3: Audio
    4: Tied through active load to ground (on instrument adapter cable, pin 4 floats)
  • Dimensions 108 mm x 64 mm x 19 mm (H x W x D)
  • Weight 81 g (3 oz.), without batteries
  • Housing Molded polycarbonate case
  • Power Requirements LR6 AA batteries, 1.5 V
  • Battery Life up to 12 hours (alkaline)
Molded Case for Shure FP WirelessSKB Cases 3I-0907-4-SFP Molded Case for Shure FP Wireless

The 3i0907-4SFP Custom interior Shure FP Wireliess System Mic case is a very compact case and is part of the iSeries Waterproof cases. iSeries injection molded waterproof cases are constructed of ultra high-strength polypropylene copolymer ...
