Shure FP15/83-G4
FP Series Wireless Bodypack System with WL183 Lavalier Microphone, 470-494 MHz

OUR PART #:  FP15/83-G4

The Shure FP15/83-G4 Lavalier Wireless System is part of the FP wireless systems family and comes with the FP5 portable receiver...
Learn More
Our Price: $499.00
List Price: $624.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Shure FP15/83-G4
Qty:
In Stock

Similar Products

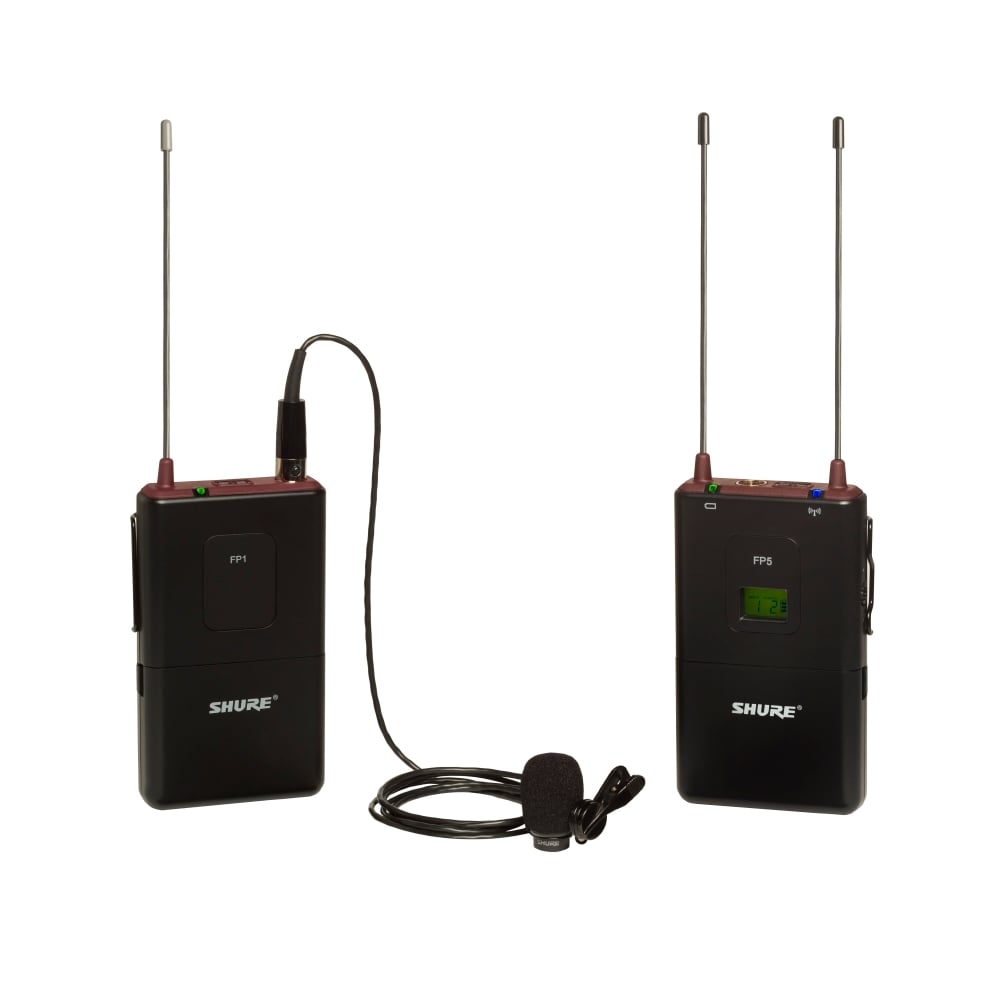

The Shure FP15/83-G4 Lavalier Wireless System is part of the FP wireless systems family and comes with the FP5 portable receiver, FP1 bodypack transmitter and the WL183 lavalier microphone. This system operates in the 470 MHz - 494 MHz wireless frequency range.

When portability is required, FP Wireless and its intuitive, flexible components are the ideal solution. FP Wireless features proven wireless technology, including Shure patented Audio Reference Companding, for professional sound capture in demanding videography and electronic field production (EFP) environments.

Shure FP15/83-G4 Includes:

  • One (1) FP1 Bodypack Transmitter
  • One (1) FP5 Portable Receiver
  • One (1) WL183 Lavalier Microphone
  • One (1) Tie Clip
  • One (1) Camera Shoe-Mount
  • One (1) TA3F to XLR Male audio cable
  • One (1) TA3F to 3.5 mm Dual-Mono audio cable
  • Four (4) AA Batteries
  • Two (2) Vinyl Bags
  • User Guide

Shure FP15/83-G4 Features:

  • FP1 Bodypack Transmitter:
    • Automatic transmitter setup that instantly syncs the transmitter to the receiver frequency
    • LED indicator for control lockout, IR RF sync, and low battery
    • Audio input gain for adjustment of audio level
    • 4-Pin microphone input jack for use with lavaliers or headset microphones with TA4F connectors
  • FP5 Portable Receiver:
    • Power LED with low battery indicator
    • RF LED that indicates transmitter sync when illuminated
    • Receiver output level control that manages output to camera/mixer
    • Diversity antennas for consistent reception of signal transmission
    • TA3F cable output to either XLR or 1/8" connectors included
    • Camera shoe mount included
    • Rugged and lightweight Shure construction
  • WL183 Lavalier Microphone:
    • Recommended for general purpose sound reinforcement, recording or remote monitoring applications
    • Low handling noise
    • Omnidirectional polar pattern offers 360° pickup

Shure FP15/83-G4 Specifications:

  • FP1 Bodypack Transmitter:
    • Gain Adjustment Range:  -10 to +20dBV
    • Input Impedance:  1 MegOhm
    • RF Output Power:  10 to 30 mW (varies by region)
    • Pin Assignments (TA4M):
      • 1:  Ground (cable shield)
      • 2:  +5 V Bias
      • 3:  audio
      • 4:  Tied through active load to ground
        • (On instrument adapter cable, pin 4 floats)
    • Dimensions (HxWxD):  108 mm x 64 mm x 19 mm
    • Weight:  81 g (3 oz.), without batteries
    • Housing:  Molded polycarbonate case
    • Power Requirements:  2 AA batteries, 1.5 V
    • Battery Life:  up to 12 hours (alkaline)
  • FP5 Portable Receiver:
    • Audio Output Type:  TA3F
    • Configuration Impedance:  balanced
    • Pin Assignments:  1=ground, 2=hot, 3=cold
    • Maximum Audio Output Level:  –5 dBV (into 600 Ohm load)
      • Ref. ±38 kHz deviation with 1 kHz tone
    • Impedance:  200 Ohms
    • Dimensions (HxWxD):  108 mm X 64 mm X 19 mm
    • Weight:  81 g (3 oz.)
    • Housing:  Molded polycarbonate case
    • Sensitivity:  –108 dBm for 12 dB SINAD, typical
    • Power Requirements:  2 AA batteries, 1.5V
    • Battery Life:  up to 12 hours (alkaline)
  • WL183 Lavalier Microphone:
    • Type:  Condenser (electret bias)
    • Frequency Response:  50 Hz - 17 kHz
    • Polar Pattern:  Omnidirectional
    • Output Impedance:  1800 Ohms
    • Sensitivity (1 Pa = 94dB SPL):  -40.0dBV/Pa
    • Maximum Sound Pressure Level:  125.0dB SPL
    • Output Noise (A-weighted):  22.5dB SPL
    • Dynamic Range:  102.5dB
    • Polarity:  Positive pressure on diaphragm produces positive voltage on pins 3 and 4 relative to pin 1
    • Power Requirements:  REgulated nominal +5 Vdc (1.5 Vdc to 10 Vdc) provided at microphone connector pin 2 relative to pin 1 of a Shure wireless microphone transmitter
