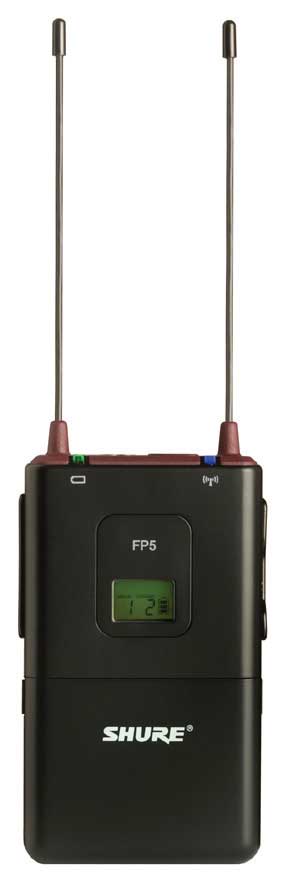

Shure FP5-G4
Portable Wireless Receiver, 470-494

OUR PART #  FP5-G4

Our Price: $299.00
List Price: $374.00
You save 20%! (Low Price Guarantee)
In Stock

Recommended Accessories

The FP5 portable wireless receiver has lightweight, durable housing, suitable for mounting on camera or person, has diversity antennas, and output via TA3F cable to either XLR or 1/8” connectors.

Featuring proven wireless technology, including Shure patented Audio Reference Companding, FP Wireless enables professional sound capture in demanding videography and electronic field production (EFP) environments.

FP5 Portable Wireless Receiver Features:

  • Shure patented Audio Reference Companding for crystal-clear audio
  • Automatic Frequency Selection locates an open frequency at the touch of a button
  • Automatic Transmitter Setup instantly syncs the transmitter to the receiver frequency
  • Power LED with low battery indicator
  • RF LED indicates transmitter sync when illuminated
  • 24 MHz bandwidth
  • Up to 20 compatible systems simultaneously
  • Powered by 2AA batteries – no power cord required
  • Receiver output level control manages output to camera/mixer
  • TA3F cable output to either XLR or 1/8” connectors (included)
  • Diversity antennas for consistent reception of signal transmission
  • Rugged and lightweight Shure construction
  • Camera Shoe Mount (included)

FP5 Portable Wireless Receiver Specifications:

  • Dimensions 108 mm X 64 mm X 19 mm (H x W x D)
  • Weight 81 g (3 oz.)
  • Housing Molded polycarbonate case
  • Sensitivity –108 dBm for 12 dB SINAD, typical
  • Power Requirements LR6 AA batteries, 1.5 V
  • Battery Life up to 12 hours (alkaline)

Audio

  • Type TA3F
  • Configuration Impedance balanced
  • Pin Assignments 1=ground, 2=hot, 3=cold
  • Maximum Audio Output Level: Ref. Β±38 kHz deviation with 1 kHz tone: –5 dBV (into 600 O load)
  • Impedance 200 Ohms



Output Cable,TA3F-1/8", 13.7"Shure WA461 Output Cable,TA3F-1/8", 13.7"

Output Cable For UR5,TA3F to 1/8" stereo mini jack, 13.7" coiled.

In Stock

Our Price:$23.04List Price: $24.00

Output Cable,TA3F to XLRM, 1ftShure WA451 Output Cable,TA3F to XLRM, 1ft

Output cable for the Shure UR5, TA3F to XLR3 male, 13.8", coiled.

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$33.12List Price: $35.00You save 5%!

Camera Shoe Mount for FP5Shure AFP511 Camera Shoe Mount for FP5

Camera shoe mount for the FP5 wireless receiver.

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$23.04List Price: $24.00
