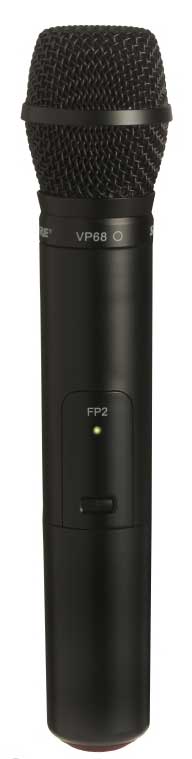

Shure FP2/VP68-J3
Handheld Wireless Transmitter with VP68 Microphone Capsule, J3 Band (572-596 MHz)

OUR PART #:  FP2/VP68-J3

The Shure FP2/VP68 is a portable handheld wireless transmitter with a VP68 omnidirectional microphone capsule and an FP5 portable receiver.
Learn More
Our Price: $299.00
List Price: $374.00
You save 20%!
Write the first review.
Shure FP2/VP68-J3
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Shure FP2/VP68 is a portable handheld wireless transmitter with a VP68 omnidirectional microphone capsule and an FP5 portable receiver.

When portability and flexibility are required, FP Wireless is the ideal solution. Featuring proven wireless technology, including Shure patented Audio Reference Companding, FP Wireless enables professional sound capture in demanding videography and electronic field production (EFP) environments.

Shure FP2/VP68 Features:

  • Shure patented Audio Reference Companding for crystal-clear audio
  • Automatic frequency selection locates an open frequency at the touch of a button
  • Automatic transmitter setup instantly syncs the transmitter to the receiver frequency
  • Up to 20 compatible systems simultaneously
  • All components powered by 2AA batteries – no power cord required
  • Transmitter gain attenuation control manages input level
  • Receiver output level control manages output to camera/mixer
  • Diversity antennas for consistent reception of signal transmission
  • Rugged and reliable Shure construction
  • Compatible with all Shure wireless microphones capsules
  • All components compatible with SLX® Wireless systems

Shure FP1 Bodypack Specifications:

  • Gain Adjustment Range -10 to +20 dBV
  • Input Impedance 1 MO
  • RF Output Power 10 to 30 mW
  • varies by region
  • Pin Assignments
    TA4M
    1: Ground (cable shield)
    2: + 5 V Bias
    3:Audio
    4: Tied through active load to ground (on instrument adapter cable, pin 4 floats)
  • Dimensions 108 mm x 64 mm x 19 mm (H x W x D)
  • Weight 81 g (3 oz.), without batteries
  • Housing Molded polycarbonate case
  • Power Requirements LR6 AA batteries, 1.5 V
  • Battery Life up to 12 hours (alkaline)

Shure FP5 Portable Receiver Features

  • 24 MHz bandwidth
  • Up to 20 compatible systems simultaneously
  • Power LED with low battery indicator
  • RF LED indicates transmitter sync when illuminated
  • Powered by 2AA batteries – no power cord required
  • Receiver output level control manages output to camera/mixer
  • TA3F cable output to either XLR or 1/8” connectors (included)
  • Diversity antennas for consistent reception of signal transmission
  • Rugged and lightweight Shure construction
  • Camera Shoe Mount (included)

Shure FP5 Portable Receiver Specifications:

  • Dimensions 108 mm X 64 mm X 19 mm (H x W x D)
  • Weight 81 g (3 oz.)
  • Housing Molded polycarbonate case
  • Sensitivity –108 dBm for 12 dB SINAD, typical
  • Power Requirements LR6 AA batteries, 1.5 V
  • Battery Life up to 12 hours (alkaline)

Audio

  • Type TA3F
  • Configuration Impedance balanced
  • Pin Assignments 1=ground, 2=hot, 3=cold
  • Maximum Audio Output Level: Ref. ±38 kHz deviation with 1 kHz tone: –5 dBV (into 600 Ohm load)
  • Impedance 200 Ohms

Consumer Alert

This particular wireless microphone device operates in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee’s wireless operations on these frequencies. For more information, visit the FCC’s wireless microphone website at www.fcc.gov/wireless-microphones-guide or call the FCC at 1- 888-CALL-FCC (TTY: 1-888-TELL-FCC).
