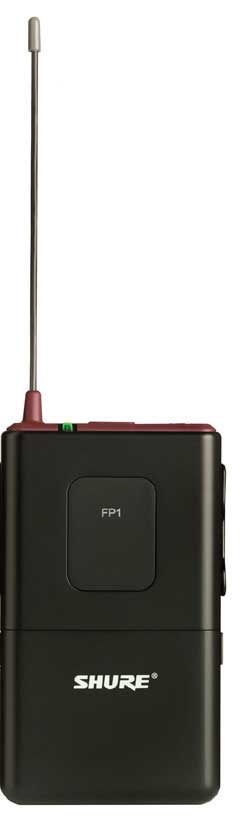

Shure FP1-G5
Bodypack Transmitter, 494-518

OUR PART #  FP1-G5

Our Price: $165.00
List Price: $206.00
You save 20%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The FP1 has a lightweight, durable housing; for use with TA4F-connection microphones including lavaliers and headsets.

Features:

  • Automatic Transmitter Setup instantly syncs the transmitter to the receiver frequency
  • LED indicator for control lockout, IR RF sync, low battery indicator
  • Audio Input Gain for adjustment of audio level
  • 4-Pin Microphone Input Jack for use with lavaliers or headset microphones with TA4F connectors.
  • Powered by 2AA batteries
  • Rugged and lightweight Shure construction

Specifications:

  • Gain Adjustment Range -10 to +20 dBV
  • Input Impedance 1 MO
  • RF Output Power 10 to 30 mW
  • varies by region
  • Pin Assignments
    TA4M
    1: Ground (cable shield)
    2: + 5 V Bias
    3: Audio
    4: Tied through active load to ground (on instrument adapter cable, pin 4 floats)
  • Dimensions 108 mm x 64 mm x 19 mm (H x W x D)
  • Weight 81 g (3 oz.), without batteries
  • Housing Molded polycarbonate case
  • Power Requirements LR6 AA batteries, 1.5 V
  • Battery Life up to 12 hours (alkaline)

Click to download

Shure FP1-G5
Bodypack Transmitter, 494-518

OUR PART #  FP1-G5

Product Videos:

Product Information:

The FP1 has a lightweight, durable housing; for use with TA4F-connection microphones including lavaliers and headsets.

Features:

  • Automatic Transmitter Setup instantly syncs the transmitter to the receiver frequency
  • LED indicator for control lockout, IR RF sync, low battery indicator
  • Audio Input Gain for adjustment of audio level
  • 4-Pin Microphone Input Jack for use with lavaliers or headset microphones with TA4F connectors.
  • Powered by 2AA batteries
  • Rugged and lightweight Shure construction

Specifications:

  • Gain Adjustment Range -10 to +20 dBV
  • Input Impedance 1 MO
  • RF Output Power 10 to 30 mW
  • varies by region
  • Pin Assignments
    TA4M
    1: Ground (cable shield)
    2: + 5 V Bias
    3: Audio
    4: Tied through active load to ground (on instrument adapter cable, pin 4 floats)
  • Dimensions 108 mm x 64 mm x 19 mm (H x W x D)
  • Weight 81 g (3 oz.), without batteries
  • Housing Molded polycarbonate case
  • Power Requirements LR6 AA batteries, 1.5 V
  • Battery Life up to 12 hours (alkaline)

Click to download
