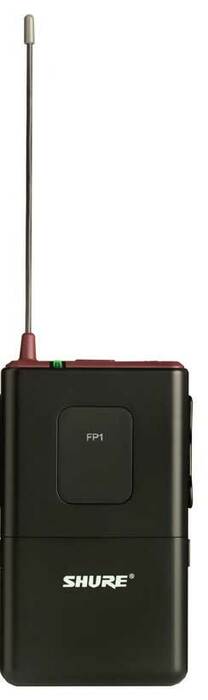

Shure FP1-G4
Bodypack Transmitter, 470-494

OUR PART #  FP1-G4

Our Price: $165.00
List Price: $206.00
You save 20%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories
The FP1 has a lightweight, durable housing; for use with TA4F-connection microphones including lavaliers and headsets.

Features:

  • Automatic Transmitter Setup instantly syncs the transmitter to the receiver frequency
  • LED indicator for control lockout, IR RF sync, low battery indicator
  • Audio Input Gain for adjustment of audio level
  • 4-Pin Microphone Input Jack for use with lavaliers or headset microphones with TA4F connectors.
  • Powered by 2AA batteries
  • Rugged and lightweight Shure construction

Specifications:

  • Gain Adjustment Range -10 to +20 dBV
  • Input Impedance 1 MO
  • RF Output Power 10 to 30 mW
  • varies by region
  • Pin Assignments
    TA4M
    1: Ground (cable shield)
    2: + 5 V Bias
    3: Audio
    4: Tied through active load to ground (on instrument adapter cable, pin 4 floats)
  • Dimensions 108 mm x 64 mm x 19 mm (H x W x D)
  • Weight 81 g (3 oz.), without batteries
  • Housing Molded polycarbonate case
  • Power Requirements LR6 AA batteries, 1.5 V
  • Battery Life up to 12 hours (alkaline)
Instrument Cable TA4F to Right Angle 1/4"Shure WA304 Instrument Cable TA4F to Right Angle 1/4"

Right Angle Guitar Cable, 2-foot (0.7m) 4-pin Mini Connector (TA4F) with Right-Angle 1/4-inch Connector, used with T1, SC1, SLX1, LX1, U1, UC1, ULX and UT1 Bodypack Transmitters T1, SC1, PG1, PGX1, SLX1, LX1, U1, UC1, ULX, UR1 and UT1 ...

In Stock

Our Price:$19.14List Price: $20.00

4 ft TA4F to XLR Female Adapter CableShure WA310 4 ft TA4F to XLR Female Adapter Cable

The Shure WA310 is a 4 ft TA4F to XLR Female adapter cable. This cable is designed to connect the T1, T11, LX1, SC1, U1, UC1 or UT1 body-pack transmitter to a dynamic or battery-powered condenser microphone.

In Stock

Our Price:$17.67List Price: $19.00You save 7%!

Instrument CableShure WA302 Instrument Cable

Instrument cable connects the T1, UT1, SC1, SLX1, LX1, ULX1, UC1 and U1 body-pack transmitter to a guitar or other instrument. Features a 2.5 foot (.75 m), length with 1/4-inch plug and 4-pin mini connector (TA4F) (supplied with instrument ...

In Stock

Our Price:$17.67List Price: $18.00

Click to download
