RCF LF18N401
18" Low Frequency Woofer

OUR PART #  LF18N401

Our Price: $599.00
List Price: $699.00
You save 14%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

RCF's LF18N401 offers linear frequency response characteristics and the highest power handling of any comparable 18" neodymium transducer, the lowest power compression.

The LF18N401 uses a fiber-loaded cone assembly along with a high excursion triple roll,constant geometry surround.

This combination provides remarkable strength venting system guarantee a very efficient voice coil ventilation for minimum power compression and higher power handling.

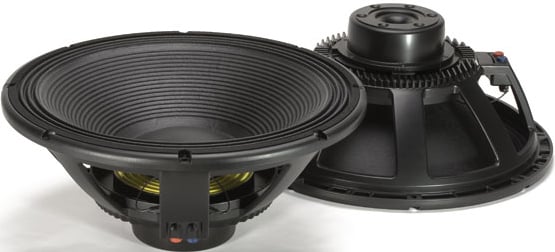

NOTE: Though two are shown above, only ONE woofer comes with purchase.

Features:

  • 4" fiberglass inside-outside copper voice coil
  • 2400W continuous program power handling
  • 98 dB Sensitivity
  • 30 Hz - 1 kHz Frequency range
  • Dual-forced air ventilation and 15mm top plate for minimum power compression
  • Dual spider design with silicon based dampening control
  • Triple-roll surround and corrugated straight cone geometry

General Specifications:

  • Nominal Diameter: 18" (460 mm)
  • Rated Impedance: 8 O
  • Program Power: 2400 W AES
  • Power handling capacity: 1200 W AES
  • Sensitivity: 98 dB
  • Frequency Range: 30 Hz ÷ 1000 Hz
  • Effective Piston Diameter: 15.6" (395 mm)
  • Max Excursion Before Damage (peak to peak): 2.1" (52 mm)
  • Minimum Impedance: 6.3 O
  • Voice Coil Diameter: 4" (100 mm)
  • Voice Coil Material: Copper
  • Voice Coil Winding Depth: 1" (25 mm)
  • Number of layers: 2
  • Kind of layer: inside / outside
  • Top Plate Thickness: 0.6" (15 mm)
  • Cone Material: No pressed pulp
  • Cone Design: Straight
  • Surround Material: Polycotton
  • Surround Design: Triple roll

Thiele/Small Parameters:

  • DC resistance: 5.1O
  • Mechanical factor: 6.5
  • Electrical factor: 0.27
  • Total factor: 0.26
  • BL Factor: 27.8 T · m
  • Effective Moving Mass: 201 g
  • Equivalent Cas air load: 257 liters
  • Effective piston area: 0.122 m²
  • Max. linear excursion (mathematical): 8.8 mm
  • Voice - coil inductance @ 1kHz: 2.5 mH
  • Half-space efficiency: 3.01%

Mounting information:

  • Overall Diameter: 18.3" (465 mm)
  • Bolt Circle Diameter: 17.4-17.6" (442-447 mm)
  • Bolt Hole Diameter: 0.3" (6.5 mm)
  • Front Mount Baffle Cut-out: 16.7" (424 mm)
  • Rear Mount Baffle Cut-out: 16.7" (424 mm)
  • Depth: 8.1" (205 mm)
  • Volume occupied by the driver: 0.19 ft³ (5.5 liters)
  • Net Weight: 20.2 lbs (9.1 kg)

Shipping weight: 21.8 lbs (9.8 kg)
