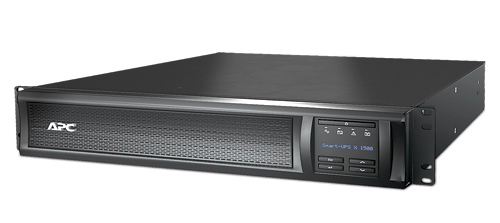

American Power Conversion SMX1500RM2U
Smart UPS, 1500VA, Rack/Tower, 120V

OUR PART #:  SMX1500RM2U

Award-winning Smart-UPS® protects critical data by supplying reliable, network-grade power in either traditional tower or rack- optimized convertible form factor..
Learn More
Our Price: $828.10
List Price: $1,150.00
You save 28%!
Write the first review.
American Power Conversion SMX1500RM2U
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Award-winning Smart-UPS® protects critical data by supplying reliable, network-grade power in either traditional tower or rack- optimized convertible form factor.. Included PowerChute® management software provides IT administrators the comfort of safe system shutdown and advanced UPS management.

Features:

  • Remote UPS management: Enable management of your UPS by connecting it directly to the network.
  • Intuitive LCD interface: Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
  • High frequency design: Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
  • Auto recognition of external batteries: UPS recognizes when external battery packs are attached and automatically adjusts runtime.
  • Predictive replace battery date: Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
  • Green mode: Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • Energy meter: Provides actual kilowatt hours of usage for energy conscious users.
  • Pure sine wave output on battery: Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  • Multiple switched outlet groups: Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
  • High online efficiency: Reduces utlility costs, generates less heat.
  • EPO: Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.
  • SmartSlot: Customize UPS capabilities with management cards.
  • Cold-start capable: Provides temporary battery power when the utility power is out.
  • Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature.
  • Scalable runtime: Allows additional run time to be quickly added as needed.
  • Rack/Tower convertible: Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
  • Plug-and-Play external batteries: Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
  • Boost and Trim Automatic Voltage Regulation (AVR): Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
  • Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging.
  • Power conditioning: Protects connected loads from surges, spikes, lightning, and other power disturbances.
  • Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature.
  • Automatic restart of loads after UPS shutdown: Automatically starts up the connected equipment upon the return of utility power.
  • Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Disconnected battery notification: Warns when a battery is not available to provide backup power.
  • Network manageable: Provides remote management of the UPS over the network.
  • Audible alarms: Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
  • LED status indicators: Quickly understand unit and power status with visual indicators.
  • Serial Connectivity: Provides management of the UPS via a serial port.
  • USB connectivity: Provides management of the UPS via a USB port (not available on all models).
  • Disconnected battery notification: Warns when a battery is not available to provide backup power.
  • User-replaceable batteries: Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
  • Hot-swappable batteries: Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
  • Predictive failure notification: Provides early-warning fault analysis ensuring proactive component replacement.
  • Resettable circuit breakers: Enables a quick recovery from overload events.
  • Battery failure notification: Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • Adjustable voltage-transfer points: Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
  • Adjustable voltage sensitivity: Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
  • Safety-agency approved: Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Specifications:

Output

  • Output Power Capacity: 1200 Watts / 1500 VA
  • Nominal Output Voltage: 120V
  • Output Frequency (sync to mains): 47 - 63 Hz
  • Waveform Type: Sine wave
  • Output Connections: (8) NEMA 5-15R

Input

  • Nominal Input Voltage: 120V
  • Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections: NEMA 5-15P
  • Cord Length: 8 feet (2.44 meters)
  • Input voltage range for main operations: 82 - 143V
  • Input voltage adjustable range for mains operation: 75 - 154V
  • Maximum Input Current: 12A
  • Input Breaker Capacity: 20.0  A
  • Maximum Short Circuit Withstand (Icw): 1000.0 kA

Batteries & Runtime

  • Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
  • Typical recharge time: 3 hour(s)
  • Replacement Battery: APCRBC115
  • RBC™ Quantity: 1
  • Extended Run Options: APC Smart-UPS X 1500VA Rack/Tower LCD 120V

Communications & Management

  • Interface Port(s): SmartSlot,USB
  • Available SmartSlot™ Interface Quantity: 1
  • Control panel: Multi-function LCD status and control console
  • Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
  • Emergency Power Off (EPO): Yes

Surge Protection and Filtering

  • Surge energy rating: 645 Joules
  • Filtering: Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

  • Maximum Height: 3.50 inches (89 mm)
  • Maximum Width: 17.00 inches (432 mm)
  • Maximum Depth: 19.30 inches (490 mm)
  • Rack Height: 2U
  • Net Weight: 54.60 lbs. (24.82 kg)
  • Shipping Weight: 66.00 lbs. (30.00 kg)
  • Shipping Height: 9.70 inches (246 mm)
  • Shipping Width: 23.20 inches (589 mm)
  • Shipping Depth: 24.40 inches (620 mm)
  • Color: Black

Environmental

  • Operating Environment: 32 - 104 °F (0 - 40 °C)
  • Operating Relative Humidity: 0 - 95%
  • Operating Elevation: 0-10000 feet (0-3000 meters)
  • Storage Temperature: 5 - 113 °F (-15 - 45 °C)
  • Storage Relative Humidity: 0 - 95%
  • Storage Elevation: 0-50000 feet (0-15000 meters)
  • Audible noise at 1 meter from surface of unit: 40.00 dBA
  • Online Thermal Dissipation: 133.00 BTU/hr

Conformance

  • Regulatory Approvals: cUL Listed,UL 1778
  • Standard Warranty: 3 years repair or replace (excluding battery) and 2 year for battery
  • Equipment protection policy: Lifetime : $150000
  • Environmental Compliance: RoHS 7b Exemption,REACH: Contains No SVHCs
