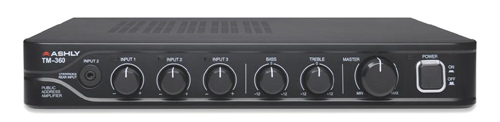

Ashly TM-360
60W, 3 input Amp, 4/8 Ohms

OUR PART #:  TM-360

The Ashly TM-360 is a table-top mixer and 60W mono amplifier suitable for applications that require background music with priority paging from a single microphone.
Learn More
Our Price: $315.00
List Price: $395.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Ashly TM-360
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Ashly TM-360 is a table-top mixer and 60W mono amplifier suitable for applications that require background music with priority paging from a single microphone. There are two line level inputs and one mic/line input with switchable phantom power. Input 3 is a line input, input 2 is a line input with priority over input 3, and input 1 is a mic/line input with priority over input 2. Main speaker outputs include a 60 watt 4W connection as well as 25V and 70V outputs. 230V export versions have 60 watt 4W, 70V, and 100V outputs. A second zone output is available with a 1W 8W output as well as a balanced 600W output, and an independent 600W PRE output is available as well.

All input and speaker connections use Euroblock connectors, with inputs 2 and 3 also using summed mono dual RCA jacks. A rear panel DIP switch determines each input’s zone 2 assignment status, inputs 1 and 2 priority (mute trigger) status, inputs 2 and 3 mute link status, low cut filter, and phantom power status for input 1. The TM-360 has a power saving standby mode which can be triggered by audio inactivity or by contact closure.

Ashly TM-360 Features:

  • 3 Inputs
  • Priority Mute
  • Zone 2 Output for Selected inputs
  • Bass & Treble Controls
  • 60W Output @ 4 Ohms, 25V, 70V (100V)
  •  Power Saving Mode
  • Optional Rack Kit
  • 5 Year Warranty

Ashly TM-360 Specifications:

  • Rated Output Power (THD 1%): 60W (RMS)
  • OutputVoltage/Impedance:
    • USA/Canada & Associated: 4Ohms/15.5V    10.4Ohms/25V    82Ohms/70V
    • EC & Associated, Japan: 4Ohms/15.5V    82Ohms/70V    167Ohms/100V
  • Frequency Response(1W @ 1KHz):
    • Input 1,2,3 +1/-3dB, 80Hz – 15KHz
  • THD (60W @ 1KHz): <1%
  • S/N Ratio (60W @ 1KHz, A weighted): Input 1,2,3>80dB
  • Input Sensitivity:
    • Input 1 -10dBV to -50dBV
    • Input 1,2 0dBV to -20dBV
  • Tone Control:
    • Treble (10KHz) +10dB
    • Bass (100Hz) +10dB
  • Residual Noise (Input 1-3 volume min, tone at center):
    • Master volume minimum: -72dB
    • Master volume maximum: -57dB
  • Zone 2 Output:]
    • Rated power 8Ohms (RMS, THD 3%)1W
    • Balanced 600Ohms 2.4V
  • PRE Out (input -10dBV): 0dBV
  • Mix Configuration Switches:
    • SW1 Zone 2 Assign Input 1
    • SW2 Zone 2 Assign Input 2
    • SW3 Zone 2 Assign Input 3
    • SW4 VOX Trigger Input 1
    • SW5 VOX Trigger Input 2
    • SW6 Mute Link Input 2 & 3
    • SW7 Low Cut, 400Hz 6dB/Oct.
    • SW8 Ch1 Phantom Power, +18V
  • Manual Mute Contact Closure: Pins 1 & G = Input 1Mute Trigger
  • Master System Standby Contact Closure: Pins G & 2= Power Standby
  • AC Requirements:
    • 120VAC, 60Hz, 24W (USA & Canada and Associated)
    • 230VAC, 50/60Hz, 24W (EC and Associated)
  • Line Current Draw @ 120VAC 60Hz (for 230VAC models, divide line currentdraw values by 2):
    • Standby: 0.15A
    • Idle: 0.24A
    • 1/8th Power Pink Noise: 0.38A
    • 1/3rd Power Sine Wave: 0.66A
  • Thermal Dissipation (BTU/hr):
    • Standby: 26
    • Idle: 43
    • 1/8th Power Pink Noise: 53
    • 1/3rd Power Sine Wave: 75
  • Environmental: 40°F ~ 120°F (4° ~ 49°C)non-condensing
  • Weight: 8.6lb (3.9kg)
  • Dimensions (WxHxD): 11.4” x 3” x 7.3” (290mm x 76mm x 185mm)
