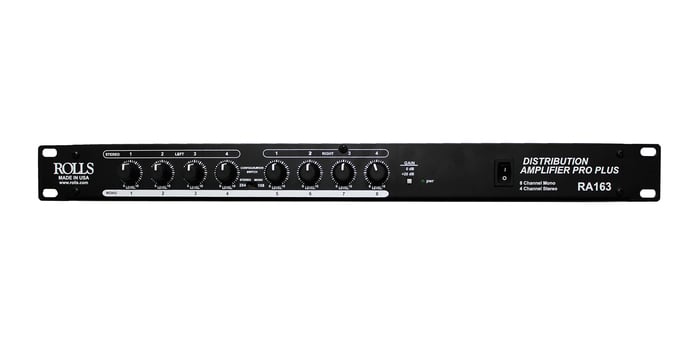

Rolls RA163
8 Mono/4 Stereo Channel Distribution Amplifier with Rear XLR I/O Jacks

OUR PART #:  RA163

Rolls' RA163 is an 8-channel mono, or 4-channel stereo distribution amplifier designed for the contractor/install market.
Learn More
Our Price: $150.00
List Price: $195.00
You save 23%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Rolls RA163
Qty:
In Stock

Similar Products

Rolls' RA163 is an 8-channel mono, or 4-channel stereo distribution amplifier designed for the contractor/install market.  The outputs are designed to drive high-level balanced lines in a sound distribution system.  The XLR jacks on the rear panel are for input and output, and each output may power more than one line.

Rolls RA163 Features:

  • Mono or Stereo Operation - mono input to 8 outputs,or stereo inputs to 4 stereo outputs.
  • +20 dB Gain switch.
  • All XLR jack inputs and outputs

Rolls RA163 Specifications:

  • Input Impedance: 100 K Ohms balanced
  • Max Input Level: +24 dBV
  • I/O Connectors: XLR
  • Output Impedance: 50 Ohms balanced
  • Max Output Level: +24 dB
  • Max Gain: 20 dB
  • S/N Ratio: >90 dB
  • Frequency Response: 10 Hz - 40 kHz, +/- 1 dB
  • THD: <.008%
  • Power: 120 VAC 50-60 Hz, 15VA
  • Size: 19" W x 1.75" H x 6.5" D (48 x 4.5 x 17cm)
  • Weight: 7 lbs. (3 kg)
