Product Overview
Philips Color Kinetics' iColor Flex LMX are flexible strands of large, high-intensity, full-color LED nodes designed for extraordinary effects and expansive installations without the constraints of fixture size or shape. Each iColor Flex LMX strand consists of 50 individually addressable LED nodes, featuring dynamic integration of power, communication, and control.
Philips Color Kinetics 101-000067-06 Features:
- Each node produces full-color output of up to 6.56 candela (full on)
- Flexible form factor allows unique, cost-effective lighting installations,including two- and three-dimensional video displays
- Works seamlessly with the complete Philips line of controllers, includingVideo System Manager, Light System Manager, and iPlayer 3, or third-party controllers
- Single node mounts can be positioned individually to support complex geometries. Standard 50-node lengths can be shortened in the field.
- Strands can be mounted to a surface, like traditional string lights, and on tracks to ensure straight linear runs. Snap-on spacers hide cabling and mounting hardware.
- Leader cables available in different lengths
- Durable and weather-resistant — Fully sealed for maximum fixture life and IP66-rated for outdoor applications
Philips Color Kinetics 101-000067-06 Specifications:
- Output:
- Lumen Maintenance*: 50,000+ hours L50 @ 50° C (full output)
- *L50 = 50% lumen maintenance (when light output drops below50% ofinitial output). Ambient luminaire temperatures specified. Lumen maintenance calculations are based on lifetime prediction graphs supplied by LED source manufacturers. Calculations for white-light LED fixturesare based on measurements that comply with IES LM-80-08 testing procedures.
- LED Channels: Red / Green / Blue
- Electrical:
- Input Voltage: 24 VDC via sPDS-480ca, PDS-60ca, sPDS-60ca
- Power Consumption: 1 W max. per node at full output,steady state
- Control Interface:
- - sPDS-60ca 24 V (DMX / Ethernet)
- -PDS-60ca24V (Pre-programmed, DMX, or Ethernet)
- - PDS-480ca24V(Ethernet)
- Control System: Philips full range of controllers, including Video System Manager Pro, Light System Manager, and iPlayer3,or
- third-party controllers
- Node Dimensions (HxWxD): 1.2" x 1.25" x 1" (31 x 32 x 25 mm)
- Weight: 2.2 lbs (1 kg)
- Housing: White polycarbonate
- Lens: Translucent plastic
- Fixture Connections: Integrated watertight 3-pin connector
- Temperature Ranges:
- -4° – 122° F (-20° – 50° C) Operating
- = 32° F(=0° C) Handling
- -4° – 122° F (-20° – 50° C) Startup
- -22° – 185° F (-30°– 85° C) Storage
- Humidity: 0 – 95%, non-condensing
- Maximum Fixtures Per Power / Data Supply:
- sPDS-480ca 24V:8strands
- sPDS-60ca 24V: 1 strand
- PDS-60ca 24V : 1 strand
- Certification: UL / cUL, FCC Class A, CE
- Environment: Dry / Damp / Wet Location, IP66
Note

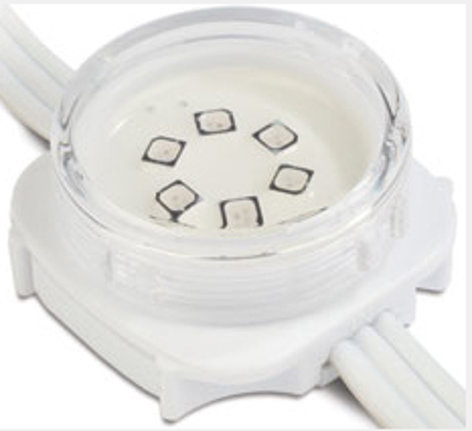

NOTE: Shown above with both flat and half-dome lenses. This version comes with translucent dome lenses ONLY.
