Ace Backstage Co. BRK1028BBXW

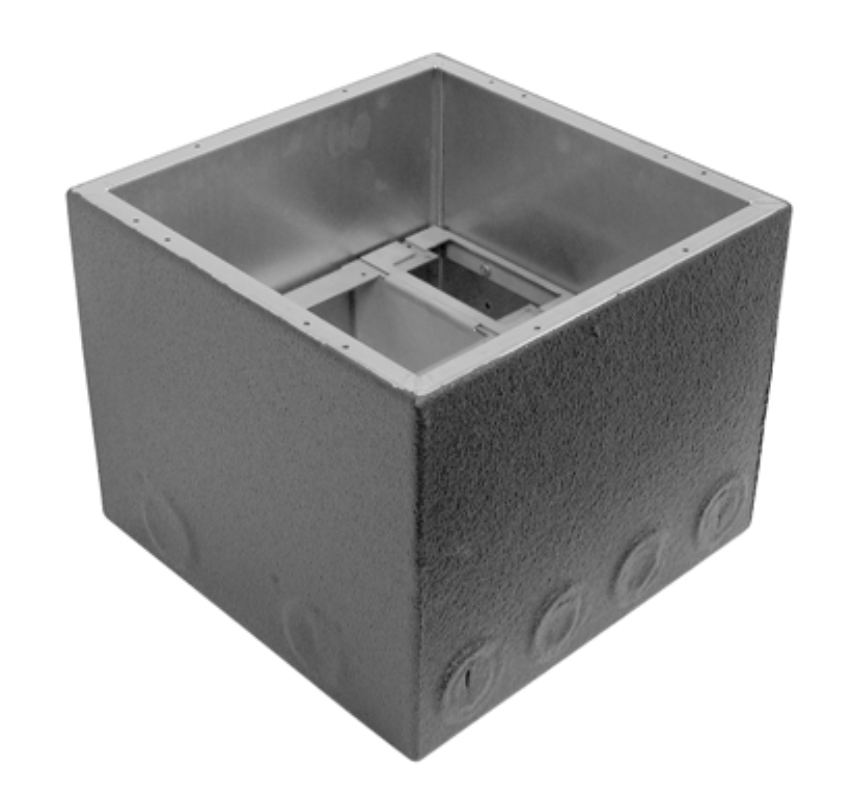

8" Polyurethane Encapsulated Extra Deep Full Stage Pocket Back Box

OUR PART #:  BRK1028BBXW

The Ace Backstage BRK1028BBXW polyurethane encapsulated back box provides extra protection from incursion of moisture and water by sealing seams, knock-outs, and holes.
Learn More
Our Price: $218.62
List Price: $274.77
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Ace Backstage Co. BRK1028BBXW
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Ace Backstage BRK1028BBXW polyurethane encapsulated back box provides extra protection from incursion of moisture and water by sealing seams, knock-outs, and holes. Using Ace's extra deep, double zinc plated back boxes (BRK8BBXW) a 1/16" thick jacket of polyurethane is applied to the exterior sides and bottom of the back boxes, permanently bonding with surfaces to form a moisture resistant seal. The polyurethane back box provides protection against harsh climate, chemicals, impact and abrasion. All polyurethane back boxes will have a model number suffix of "W".

The BRK1028BBXW is slightly deeper (8”) as compared with Standard BBX Series Back Boxes (6”) and may be used exclusively with Ace's Full and Double Wide Stage Pockets. The BRK1028BBXW polyurethane encapsulated Extra Deep Back Box is constructed of welded 14 gauge steel with a protective cover that is discarded when the pocket body is finally installed. The box and cover have a clear zinc corrosion resistant finish. A 1/2” mounting flange is predrilled to mate with the pocket body flange. The pocket body assembly is 4.5” deep and the extra deep back box is 8” deep providing a 3.5” work clearance in the bottom of the back box, which is ideal for feed thru or distribution junction.

The clearance volume (volume between bottom of pocket body and bottom of the extra deep back box) is 338 cubic inches and comes with standard Electrical Conduit Combination 1/2”, 3/4”, 1”, and 1-1/4” Knock Outs, 4 places typical on opposing sides and Electrical Conduit Combination 1/2”, 3/4”, 1”, and 1-1/4” Knock Outs, 2 places typical on one side.

Ace Backstage BRK1028BBXW Includes:

  • (1) #BRK1028BBXW Series Back Box
  • (1) Disposable Protective Cover
  • (4) Self Tapping Screws

Ace Backstage BRK1028BBXW Features:

  • MOISTURE PROTECTION: ACE polyurethane encapsulated back boxes are made from our standard extra deep, double zinc plated back boxes (BRK1028BBX). A 1/16” thick jacket of polyurethane is applied to the exterior sides and bottom of the Back Boxes. The polyurethane encapsulates and permanently bonds with the back box surfaces providing protection against the harsh climate, chemicals, accidental impacts, and abrasions.
  • CLEARANCE VOLUME: Standard Stage Pocket body assemblies are 4.5" deep while the polyurethane encapsulated Extra Deep Back Box is 8" deep providing 3.5" work clearance in the bottom of the Extra Deep Back Boxes, making them ideal for feed thru or distribution junctions. Clearance volumes for individual Pocket/Extra Deep Back Box assemblies are as follows:
    • #BRK1028BBXW Back Box with Full Pocket Clearance volume: 338 Cubic Inches
  • DURABLE CONSTRUCTION: ACE polyurethane encapsulated Extra Deep Back Boxes (#BRK8BBXW) are made from tough, welded 14 gauge steel (.071" thick).
  • EASY INSTALLATION: ACE polyurethane encapsulated Extra Deep Back Boxes are easily installed into the floor or stage in a few steps. First make the cutout in the floor/stage. Second, securely brace the Back Box into the floor and be sure to provide support equal to the floor loading requirements, accounting for any height offset required for the finished floor. Third, attach any standard electrical conduit to the back box on any side via the combination knock outs. Fourth, secure Stage Pocket to Back Box using mating screw holes provided on the Stage Pocket flange and the Back Box flange.
  • DURABLE FINISH: ACE Back Boxes have a clear zinc corrosion resistant finish (before applying the Polyurethane Encapsulation).
  • ELECTRICAL KNOCKOUTS: ACE Standard Extra Deep BackBoxes come with standard Electrical Conduit Combination Knockouts. 1/2", 3/4", 1", and 1-1/4" Knock Outs 4 places typical on opposing sides. 1/2”, 3/4”, 1”, and 1-1/4” Knock Outs 2 places typical on one side.
  • PROTECTIVE COVER: Included with the polyurethane encapsulated Extra Deep Back Box(es) is a protective cover with a clear zinc corrosion resistant finish. This cover maintains a clean Back Box until the pocket is finally installed. The protective cover may be discarded after the pocket has been installed.

Ace Backstage BRK1028BBXW Specifications:

  • Back Box Stage Pocket Capabilities: 1 Full Stage Pocket
  • Back Box Coating: Black 1/16" thick coating of polyurethane
  • Back Box Finishes: Clear zinc corrosion resistant finish
  • Back Box Materials: 14 Gauge Steel (.071" Thick)
  • Size: 10.000” W x 8.000” H x 10.000" L
