Ace Backstage BRK1028BBX 8" Extra Deep Back Box for Full Stage Pocket

OUR PART #: BRK1028BBX MFR #: BRK1028BBX

Copied to clipboard

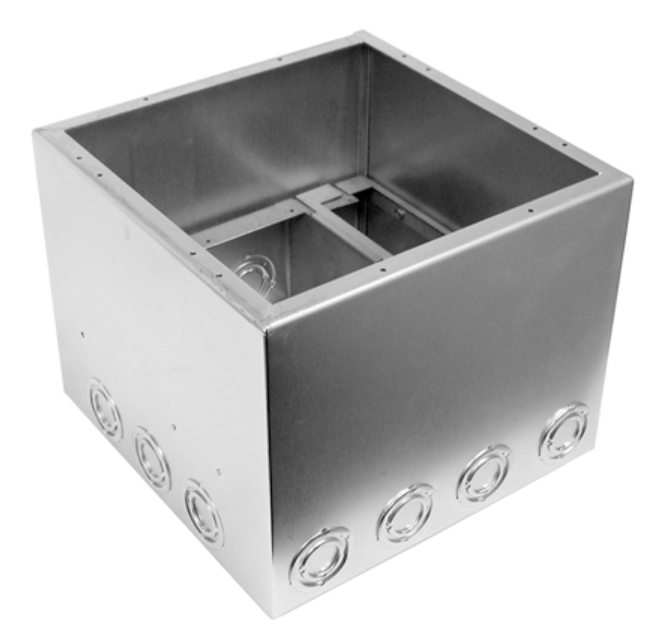

Ace Backstage BRK1028BBX 8" Extra Deep Back Box For Full Stage Pocket Image 1
OKLwESuZtvA
1 Video
Ace Backstage BRK1028BBX 8" Extra Deep Back Box For Full Stage Pocket
Our Price: $333.62
List Price: $391.18
You save 15%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Ace Backstage BRK1028BBX Extra Deep Back Box is slightly deeper (8”) as compared with Standard BBX Series Back Boxes (6”) and may be used exclusively with Ace's Full and Double Wide Stage Pockets. The BRK1028BBX are constructed of welded 14 gauge steel with a protective cover that is discarded when the pocket body is finally installed. The box and cover have a clear zinc corrosion resistant finish. A 1/2” mounting flange is pre-drilled to mate with the pocket body flange. The pocket body assembly is 4.5” deep and the extra deep back box is 8” deep providing a 3.5” work clearance in the bottom of the back box, which is ideal for feed thru or distribution junction.

The clearance volume (volume between bottom of pocket body and bottom of the extra deep back box) is 338 cubic inches in the BRK1028BBX and comes with standard Electrical Conduit Combination 1/2”, 3/4”, 1”, and 1-1/4” Knock Outs, 4 places typical on opposing sides and Electrical Conduit Combination 1/2”, 3/4”, 1”, and 1-1/4” Knock Outs, 2 places typical on one side.

Ace Backstage BRK1028BBX Includes:

  • (1) #BRK8BBX Series Back Box
  • (1) Disposable Protective Cover
  • (4) Self Tapping Screws

Ace Backstage BRK1028BBX Features:

  • CLEARANCE VOLUME: Standard Stage Pocket bodyassemblies are 4.5" deep while the Extra Deep Back Box is 8" deep providing3.5" work clearance in the bottom of the Extra Deep Back Boxes, making themideal for feed thru or distribution junctions. Clearance volumes forindividual Pocket/Extra Deep Back Box assemblies are as follows:
    • #BRK1028BBX Back Box with Full Pocket Clearance volume: 338 Cubic Inches
  • DURABLE CONSTRUCTION: ACE Standard Extra Deep Back Boxes (#BRK8BBX) are made from tough, welded 14 gauge steel (.071" thick).
  • EASY INSTALLATION: ACE Standard Extra Deep Back Boxes are easily installed into the floor or stage in a few steps. First make the cutout in the floor/stage. Second, securely brace the Back Box into the floor and be sure to provide support equal to the floor loading requirements, accounting for any height offset required for the finished floor. Third, attach any standard electrical conduit to the back box on any side via the combination knock outs. Fourth, secure Stage Pocket to Back Box using mating screw holes provided on the Stage Pocket flange and the Back Box flange.
  • DURABLE FINISH: ACE Standard Extra Deep Back Boxes have a clear zinc corrosion resistant finish.
  • ELECTRICAL KNOCKOUTS: ACE Standard Extra Deep BackBoxes come with standard Electrical Conduit Combination Knockouts. 1/2", 3/4", 1", and 1-1/4" Knock Outs 4 places typical on opposing sides. 1/2”, 3/4”, 1”, and 1-1/4” Knock Outs 2 places typical on one side.
  • PROTECTIVE COVER: Included with the Extra Deep Back Box(es) is a protective cover with a clear zinc corrosion resistant finish. This cover maintains a clean Back Box until the pocket is finally installed. The protective cover may be discarded after the pocket has been installed.

Ace Backstage BRK1028BBX Specifications:

  • Pocket Capacities: 1 Full Stage Pocket
  • Back Box Finishes: Clear zinc corrosion resistant finish
  • Back Box Materials: 14 Gauge Steel (.071" Thick)
  • Size: 10.000” W x 8.000” H x 10.000" L
