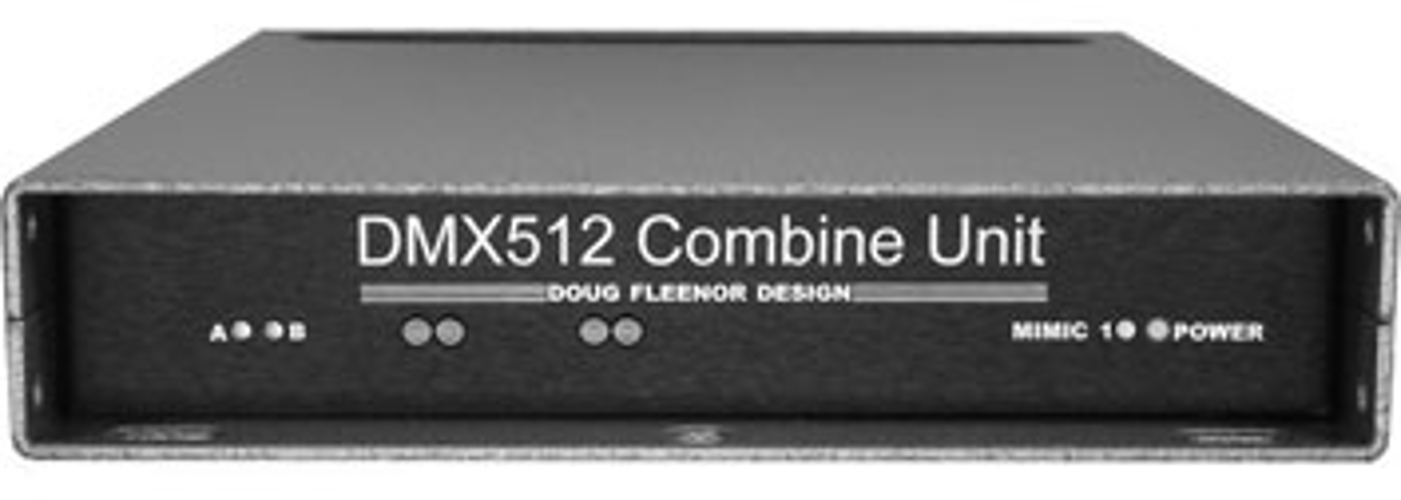

Doug Fleenor Designs 621E DMX Combiner
6 IN/ 1 OUT

OUR PART #:  621E

The DMX512 Combine Unit solves the problem of combining multiple DMX input signals into a single DMX output signal.
Learn More
Selected Model Price: $3,675.65
List Price: $4,786.00
Save up to 23%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Doug Fleenor Designs 621E DMX Combiner
Select model: (shipping times are approximate)
Qty:

Similar Products

The DMX512 Combine Unit solves the problem of combining multiple DMX input signals into a single DMX output signal. The most common configuration of the unit allows two consoles to control a single set of dimmers in a highest takes precedence or pile on mode. Examples of where this might be necessary include booth console/stage manager's console, primary console/backup console, and where one console controls intensity of a moving light fixture while a second console is used for color and/or position. Units with up to six inputs are available. More than six inputs can be accommodated using a Master/Slave arrangement.

Units that patch and/or route the DMX dimmer channels are available for applications where two consoles control a single dimmer rack with loads in separate rooms. Such units prevent the operator in room "A" from bringing up the lights in room "B".

The custom possibilities based on the DMX512 Combine Unit are almost endless. The 621E can accept Colortran Multiplex (CMX) on one or both inputs as well as output CMX. It can also concatenate the two DMX inputs to form a 1024 dimmer look up table and output from that table in any order in DMX or CMX protocols.

Doug Fleenor Designs 621E DMX Combiner Specifications:

  • Baud rate:  250 Kilo baud
  • Input circuit:  EIA-485 receiver with 120 ohm termination between +data and -data
  • Input connectors:  Gold plated 5 pin male (Neutrik D1 series)
  • Terminal Block Optional
  • Output circuit: EIA-485 driver
  • Output connector:  Gold plated 5 pin female (Neutrik D1 series)
  • Terminal Block Optional
  • Input to output delay:  1/100 second average 1/50 second maximum
  • Power input:  100 - 120 volts, 50/60 hertz, 12watts (208 - 240 volt optional)
  • Power cord:  Attached 5' 18/3 cord with parallel blade with ground plug.
  • Color:  Silver hammertone with black front and back panels.
  • Size and weight (DxHxW):
    • Table Top - 11.25" x 1.74" x 8.25", 4.9 pounds
    • Wall Mount - 2" x 8.5" x 10.5", 5 pounds
  • Mounting Hole Locations 6" Vertical 9.5" Horizontal
Rack Kit
Doug Fleenor Designs RK8-1 Rack Kit
This unit is an 8" wide 1U rack kit, allowing you to mount equipment in a standard rack.
