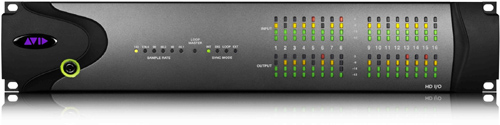

Avid HD I/O 16x16 Analog [EDUCATIONAL PRICING]
Pro Tools Audio Interface for Educational Institutions

OUR PART #:  HD-I/O-16X16-A-EDU

Note: This product is specially priced for Educational Institutions . A purchase order from your organization is required to fulfill an order at this price.
Learn More

Call for info!

Similar Products

Note: This product is specially priced for Educational Institutions . A purchase order from your organization is required to fulfill an order at this price. For more information on how to place your order, please call us at 800-356-5844.

Comes with upgrade/standard Avid support plan good for 1 year.

Get the absolute highest audio quality and unprecedented I/O flexibility with HD I/O, a high-performance Pro Tools HD Series audio interface that's designed to completely integrate with Pro Tools|HD systems. While its sleek look resembles its prior generation interfaces, HD I/O has been completely redesigned on the inside with high-quality electronics, giving you pristine, best-in-class A/D and D/A conversion and the lowest possible latency. Plus, with three configurations to choose from and a modular design, you can expand and customize the interface for your connection needs.

Features:

  • Pristine audio clarity and ultra low latency through state-of-the-art A/Dand D/A conversion, premium analog circuitry, and meticulous attention todesign
  • Versatile digital I/O on all interfaces, with built-in sample rateconversion
  • Expand or customize the I/O with analog or digital option cards
  • Completely integrates with Pro Tools|HD for full input, output, androuting control
  • Track hotter signals and smooth out sounds with Curv, a new built-insoft-knee limiter
  • Keep things in sync with dedicated Word Clock and Loop Sync I/O
  • Keep an eye on your levels easily through 32 4-segment metering LEDs
  • Robust 2U rack-mountable chassis
  • Connects to Pro Tools|HD through a DigiLink Mini connection (cable andadaptor included)

Specifications:

System Requirements:

  • Avid-qualified Pro Tools|HD system running Pro Tools HD 8.1 or highersoftware
  • Avid-qualified Pro Tools|HD system running a Core Audio or ASIO compliantapplication

Hardware:

  • Analog Inputs: 16
  • Analog Outputs: 16
  • AES/EBU I/O: 2
  • AES Single-Wire (192kHz): Yes
  • S/PDIF I/O: 1 In + 1 Out (coax or optical)
  • ADAT I/O: 8
  • S/MUX: S/MUX II and IV
  • SRC: n/a
  • Word Clock I/O: 1 In + 1 Out
  • Loop Sync I/O: 1 In + 1 Out
  • Digital Interface: DigiLink Mini
  • Dynamic RangeL
      -  ADC: 122dB
      -  DAC:125dB
  • THD+N:
      -  ADC: -114dB (0.0002%)
      -  DAC:-110dB (0.00032%)
  • Frequency Response:
      -  ADC: 20Hz - 20kHz (+/-.03dB)
      -  DAC: 20Hz - 20kHz (+/- .15dB)
  • Expansion: None (card swaps only)
  • Curve: Yes
  • Soft Clip: Yes
  • Cal Trims: Yes
  • Metering 32 4-segment LEDs
  • Internal Fan: Yes
  • Chassis: 2 RU
