Belden 7938A-B59-BY-FOOT
Black 24 AWG Cable, PVC, Price By The Foot

OUR PART #:  7938A-B59-BY-FOOT

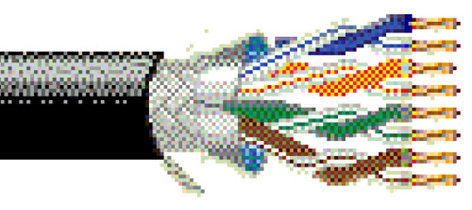

The Belden 7938A-B59 is a data cable with four pairs of 24 AWG stranded (7x32) bare copper alloy conductors.
Learn More
Our Price: $2.88

5.0 / 5

★★★★★ 1 Review. Write Yours
Belden 7938A-B59-BY-FOOT
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Belden 7938A-B59 is a data cable with four pairs of 24 AWG stranded (7x32) bare copper alloy conductors. The cable also features polyolefin insulation, polyester separator, TPE inner jacket, Beldfoil┬« shield (100% coverage), 85% TC Braid, and an industrial grade sunlight-, oil- and splatter-resistant TPE jacket.

Applications:

  • Industrial Ethernet
  • Harsh Environments
  • Robotic Applications
  • Flexible Applications
  • 100MHz Category 5e
  • Industrial Patch Cable
  • Gigabit Ethernet
  • 100BaseTX
  • 100BaseVG ANYLAN
  • 155ATM
  • 622ATM
  • NTSC/PAL Component or Composite Video
  • AES/EBU
  • Digital Video
  • RS-422
  • CMX - Outdoor
  • RJ-45 Compatible

Belden 7938A-B59 Specifications:

  • # of Pairs: 4
  • AWG: 24
  • Stranding: 7x32
  • Conductor Material: Copper Alloy
  • Insulation Material: PO - Polyolefin
  • Inner Jacket:
    • Material: TPE
    • Nom. Wall: 0.020"
    • Nom, Diameter: 0.254"
  • Outer Shield:
    • Tape: Aluminum Foil - Polyester Tape
    • Braid: Tinned Copper
  • Outer Jacket:
    • Material: Industrial Grade TPE: Theroplastic Elastomer
    • Nom. Wall Thickness: 0.030"
    • Diameter: 0.342"
