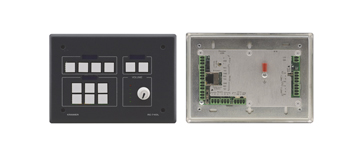

Kramer RC-74DL
12-Button Master Room Controller with Digital Volume Knob


The RC-74DL is a 12-button master room controller with a digital volume knob for multimedia rooms.
Learn More
Selected Model Price: $796.00
List Price: $995.00
Save up to 20%!
Write the first review.
Kramer RC-74DL
Select a Model: (shipping times are approximate)

Related Products

The RC-74DL is a 12-button master room controller with a digital volume knob for multimedia rooms. The unit can function either as a standalone controller or as part of a more complex room control system to control audio components, video components and other room facilities such as lights and screens.

Kramer RC-74DL Features:

  • 12 Programmable Buttons - 3 groups; color, back-lit& label capable.
  • Configurable Digital Volume Control Knob.
  • Programmable Back-Lit LCD Group Labels.
  • Macro Capability - Carries out multiple commands witha single press of a button.
  • Command Banks - Each button offers multiple layers offunctions for alternate behavior, toggle functionality, and more.
  • 1 USB Port - For programming.
  • 3 Bidirectional RS-232 Ports - Controls AV equipmentsuch as projectors, LCD and PDP displays, power amplifiers, switchers andscalers.
  • 2 IR Outputs - Additional control port for AVequipment.
  • IR Learning Function - Learns commands from IRremotes.
  • 4 Contact Closure Ports - Conveniently control otherroom items related to the AV system such as raising and lowering drapes, thescreen or the projector.
  • 2 GPI/O Ports - General purpose I/O ports that can beconfigured by K-Config as digital inputs, digital outputs or analog inputs forinterfacing with a variety of devices such as sensors, switches, LEDs, orrelays.
  • 2 K-NET™ Connectors - Connect to other control panelsor a central control processor.
  • K-NET™ Control Channel - Provides power and controldata to the wall plate controllers over a single cable.
  • Kramer Site-CTRL Compatible - For network remotecontrol and management using Kramer Site-CTRL software over the Ethernet port.
  • Configured with Kramer K-Config Software.
  • Dimensions - 6.4" x 1.0” x 4.5" W, D, H. (16.2cm x2.6cm x 11.4)
  • Wall Plate Size - 3 gang US.
