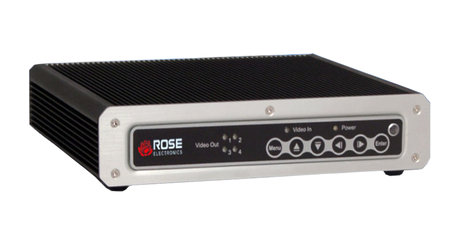

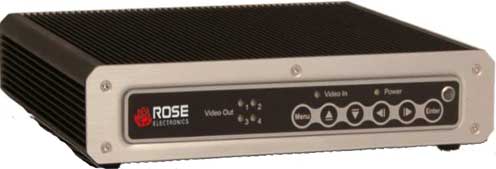

Rose Electronics VWL-B122FD
UltraVista LC 2 AV Video Wall Controller for 2x2 Displays, DVI I/O


Rose Electronics' UltraVista LC is designed for those who need to produce an inexpensive, high-quality video wall.
Learn More
Our Price: $2,339.06
List Price: $2,495.00
You save 6%!
Write the first review.
Rose Electronics VWL-B122FD
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Rose Electronics' UltraVista LC is designed for those who need to produce an inexpensive, high-quality video wall.  The 2x2 VWL-B122FD model can be expanded to produce a 4x4 video array.

Connect the UltraVista LC directly to a laptop or desktop computer with a single DVI cable and instantly the hi-definition computer image is displayed on a large video wall.  No extra set-up is required because the UltraVista LC automatically detects the correct settings.

UltraVista LC requires a high-resolution dual link DVI input from the video source.  The video source is split directly over the display array with no image scaling or adjustments.  Control of the UltraVista LC can be performed remotely using the remote control or from a connected computer with an RS232 serial port.

The UltraVista LC can be automatically configured to produce three output modes; video wall mode, clone mode, and replication mode.   These modes are automatically configured based on the input resolution received from the video source.

  • The video wall mode accurately splits the input image over the display array
  • The clone mode displays the same image on all monitors
  • The replication/clone mode shows the same image on each row of monitors

Rose Electronics VWL-B122FD Features:

  • Supports: 1 single-link DVI video input, 4 single-link DVI video outputs
  • Video input resolutions up to 3840 x 2400
  • Output resolutions up to 1920 x 1200
  • Easy adjustments for bezel compensation
  • Adjustments and control can be performed using a remote control or commands from a connected computer using the OSD functions
  • Compatible with most monitor that supports DVI input. Displays can be LCD, HD Plasma, DLP, Projectors, or others.

Rose Electronics VWL-B122FD Specifications:

  • Dimensions (WxDxH): 9.1" x 7" x 1.85" (230 x 178 x 47 mm)
  • Dual link: DVI-D
  • Resolution:
    • Input – up to 3840 x 2400
    • Output – up to 1920 x 1200
  • Connectors:
    • DVI in: Dual-link DVI-D female
    • DVI out: Single-linkDVI-D
    • Power: Male barrel jack
  • Controls: Front Panel push buttons
  • Power: Adapter – 90-264 VAC in / +12V out (10W)
  • Operating Temperatue: 32ºF - 104ºF (0ºC - 40ºC)
  • Approvals: CCC, CE, FCC
