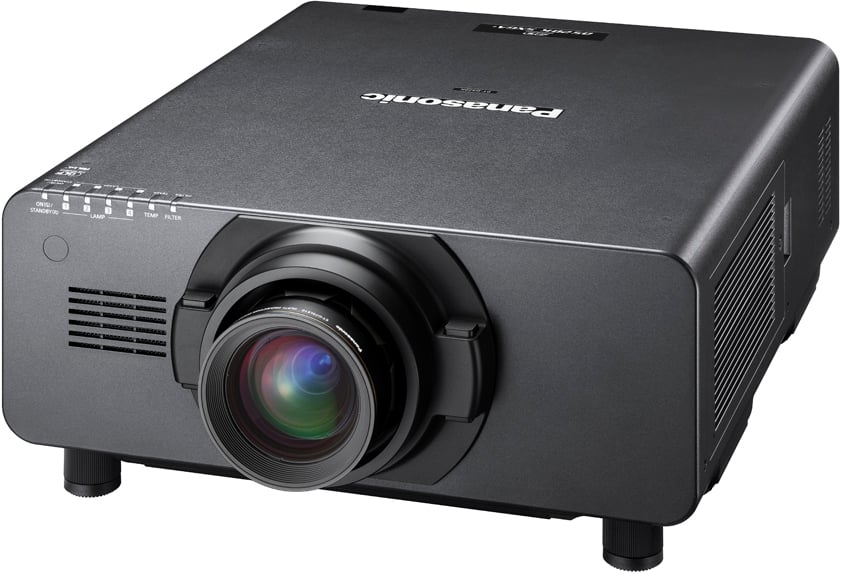

Panasonic PT-DS20K
SXGA+ 3DLP Projector, 20,000 Lumens

OUR PART #  PTDS20KU

Call for price! Not available online.


Recommended Accessories

Panasonic's PT-DS20K has a unique quad-lamp system with high-power UHM lamps, which makes the projector's body extremely compact while providing 20,000 lumens of brightness.

Panasonic's Dynamic Iris uses a scene-linking aperture mechanism to achieve a remarkable 10,000:1* contrast without lowering its high brightness.  This helps to reproduce deeper, richer blacks, and provides images with more detailed textures.
*Full on/off, with dynamic iris set to "3".

Panasonic's Detail Clarity Processor 3 circuit optimizes the sharpness of each image, based on the super-high-, high-, medium-, and low-frequency components of the extracted image information.  The resulting images have more natural, lifelike expression.

Panasonic's System Daylight View 2 technology optimizes image quality to improve the color perception of the projected image in bright rooms.  With a brightness of 20,000 lumens, it provides highly comfortable viewing even in bright lighting, and allows viewers to concentrate easily on the images.

DICOM simulation mode is similar to DICOM part 14, which is a medical imaging standard.  It reproduces X-ray images with remarkable clarity.*
*This product is not a medical instrument.  Do not use it for actual medical diagnosis.

The PT-DS20K is compatible with both passive and active 3D projection systems.  It combines with either a separate, external 100/120/144 Hz drive with IR emitter and active shutter glasses, or an active filter and passive glasses, for viewing 3D images.

3D Image Transmission Format:

  • Frame Sequential: Images for each of the left and right eyes are transmitted alternately at the rate of 60 frames per second.
  • Frame Packing: Images for the left and right eyes are transmitted in one frame while the resolution for each remains as it is.
  • Side by Side: Images for the left and right eyes are transmitted in one frame while horizontal resolution is reduced by half.
  • Top and Bottom: Images for the left and right eyes are transmitted in one frame while the vertical resolution is reduced by half.
  • Line by Line: Images for the left and right eyes are allocated to odd numbered lines and even numbered lines.
  • Simultaneous: Images for the left and right eyes are transmitted by using two cables.

Advanced Technologies for Excellent Image Quality:

  • 3D color management system
  • Full 10-bit image processing
  • Progressive cinema scan (3:2 pulldown)
  • Dynamic sharpness control
  • Digital noise reduction
  • IP conversion
  • AI scene control
  • 2:2 pulldown mode
  • sRGB compatibility
  • Fine-adjustable color temperature
  • Waveform monitor function

The PT-DS20K projector lowers the total cost of ownership (TCO) because it has a lamp replacement cycle of up to 2,000 hours*.  Its environmentally friendly design also includes a low power consumption of 2,300 W.
*The usage environment affects the lamp replacement cycle.

The four-lamp system allows the projector to keep working even if a lamp should fail.  The Lamp Relay mode also operates the lamps alternately to enable 24/7 projection.  Quad, Triple, Dual and Single Lamp modes can be used.

For easier maintenance, you can replace the lamp from the rear.  This makes it easy to replace a lamp while the projector is still in the mounting bracket or dual stacked.

The PT-DS20K's liquid cooling system directly cools the DLP™ chip to improve performance and enable operation up to 45 °C (113 °F).*  It allows quiet (49 dB) and versatile use while stabilizing performance.  It also helps to make the body compact.  And the system is hermetically sealed, so you don't need to replenish the liquid.
*The operating temperature range is 0 °C to 40 °C (32 °F to 104 °F) when the fan control is set to HIGH ALTITUDE MODE (for altitudes from 1,400 m to 2,700 m (4,593 ft to 8,858 ft) above sea level).  When the projector is used with the ET-SFR510 Smoke Cut Filter, the operating temperature range is 0 °C to 35 °C (32 °F to 95 °F), and the projector cannot be used in places at high altitude.

The Eco Filter has an electrostatic Micro Cut Filter that collects minute dust particles with an ion effect.  It combines with the dust-resistant cabinet to enable long-term use even under harsh conditions.  Its maintenance cycle of up to 12,000 hours reduces hassle, and the environmental design lets you wash the filter with water and reuse it.**
*The usage environment affects the filter maintenance cycle.
**When washing with water, please follow the procedures listed in the operating instructions.  Also, we recommend replacing the filter with a new one after it has been washed and reused twice.  If the filter is not sufficiently clean after washing, replace it with a new one.

The wide adjustment range of the powered horizontal/vertical lens shift function can be easily adjusted with the remote control.  The unit can also be rotated 360° vertically*, to accommodate various installation conditions.  The lens-centered design contributes to easy installation.
*A special fixture must be attached to the lamp case when the projector is placed at an angle within ±30° (upward/downward) of the vertical.

Multi-Unit Brightness Control automatically corrects the brightness fluctuations that occur over time in the individual projectors of a multi-screen system.  Up to eight projectors can be controlled by connecting to each other via a hub, and this can be increased to a maximum of 2,048 projectors by using "Multi Projector Monitoring & Control Software Ver. 2.7."

The Multi-Screen Support System optimally adjusts multiple screens:

  • Edge Blending: The edges of adjacent screens can be blended and their luminance controlled.
  • Color Matching: This function corrects for slight variations in the color reproduction range of individual projectors.
  • Multi-Screen Processor: The PT-DS20K Series can project large, multi-screen images without any additional equipment.  Up to 100 units (10 x 10) can be edge-blended at a time.

Geometric Adjustment adjusts the image for projection onto spherical, cylindrical and other specially shaped screens.  You can make the adjustment easily using only the remote control, with no external equipment needed.

Panasonic's original Multi Projector Monitoring & Control Software Ver. 2.7 freeware lets you control and monitor multiple projectors at the same time over a wired LAN.  If a problem occurs, an alarm message is sent to the monitoring/controlling PC.  The terminal connection area is LED illuminated, and a backlight is provided for the control panel buttons, ensuring smooth and easy operation in the dark.

Additional Features:

  • Mechanical lens shutter with fade in/out effect
  • P-in-P function*
    *This function cannot be used with some input signals and selected inputs.
  • 30 m (98.4 ft) long-range wireless remote control with LED backlight
  • ID assignment for up to 64 units
  • Control device setup function
  • Built-in test pattern
  • Selectable 10-language on-screen menu (English, German, French, Spanish, Italian, Portuguese, Russian, Japanese, Chinese, Korean)
  • RoHS Directive compliant
  • Effective theft prevention with the Startup Logo** and chain opening
    **Logo Transfer Software required.

Specifications:

  • Power supply: 200–240 V AC, 50/60 Hz (Max current requirements: 12 A @200 V)
  • Power consumption: 2,300 W (0.3 W with Standby Mode set to ECO,* 9 W with Stnadby Mode set to Normal.)
  • DLP™ chip:
    Panel size: 0.95" (24.1 mm) diagonal (4:3 aspect ratio)
    Display method: DLP™ chip x 3, DLP™ projection system
    Pixels: 1,470,000 (1,400 x 1,050) x3, total of 4,410,000 pixels
  • Lens: Optional powered zoom and fixed-focus lenses (sold separately)
  • Lamp: 465W UHM lamp x4, replacement cycle of up to 2,000 hours*2
  • Screen size (diagonal): 70"-600" (1.78–15.24 m), 70"-300" (1.78–7.62 m) with the ET-D75LE50, 4:3 aspect ratio
  • Brightness*3: 20,000 lm (four-lamp)
  • Center-to-corner uniformity*3: 90%
  • Contrast*3: 10,000:1 (full on/off, with dynamic iris set to "3")
  • Resolution: 1,400 x 1,050 pixels (Input signals that exceed this resolution will be converted to 1,400 x 1,050 pixels.)
  • Scanning frequency:
    SDI:
    - SD-SDI: SMPTE ST 259 compliant, [YCBCR 4:2:2 10-bit] 480i, 576i
    - HD-SDI: SMPTE ST 292 compliant, [YCBCR 4:2:2 10-bit] 720/50p, 720/60p, 1035/60i, 1080/50i, 1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p
    - Dual-link HD-SDI: SMPTE ST 372 compliant, [RGB 4:4:4 12-bit /10-bit] 1080/50i, 1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p, [X´Y´Z´ 4:4:4 12-bit] 2,048 x 1,080/24p, 2,048 x 1,080/24sF
    - 3G-SDI: SMPTE ST 424 compliant, [YPBPR 4:2:2 10-bit] 1080/50p, 1080/60p, [RGB 4:4:4 12-bit /10-bit]1080/50i, 1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p
    HDMI/DVI-D: 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p, VGA (640 x 480)–WUXGA*4 (1,920 x 1,200), compatible with non-interlaced signals only, dot clock: 25–162 MHz
    RGB: fH: 15–100 kHz, fV: 24–120 Hz, dot clock: 20–162 MHz
    YPbPr (YCbCr):
    fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
    fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
    fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
    fH: 33.75 kHz, fV: 60 Hz [1035/60i]
    fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
    fH: 27.00 kHz, fV: 24 Hz [1080/24p]
    fH: 33.75 kHz, fV: 30 Hz [1080/30p]
    fH: 56.25 kHz, fV: 50 Hz [1080/50p]
    fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
    fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
    fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
    fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
    fH: 28.13 kHz, fV: 25 Hz [1080/25p]
    fH: 27.00 kHz, fV: 48 Hz [1080/24sF]
    fH: 67.50 kHz, fV: 60 Hz [1080/60p]
    Video/YC: fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
  • Optical axis shift*5:
    Vertical: ±50 % (±40 % with the ET-D75LE6) from center of screen (powered)
    Horizontal: ±30 % (±20 % with the ET-D75LE6) from center of screen (powered)
  • Keystone correction range: Vertical: ±40°*6, horizontal: ±15°
  • Keystone correction range with optional Upgrade Kit: Vertical: ±45°*6,*8, horizontal: ±40°*7,*8
  • Installation: Ceiling/floor, front /rear
  • Terminals:
    SDI 1 In: BNC x1 (3G/HD/SD-SDI)
    SDI 2 In: BNC x1 (HD/SD-SDI)
    3D SYNC In/Out: BNC x1 (3D timing signal)
    3D SYNC Out: BNC x1 (3D timing signal)
    DVI-D In: DVI-D 24-pin x1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
    HDMI In: HDMI 19-pin x1 (Deep Color, compatible with HDCP)
    RGB 1 In: BNC x5 (RGB/YPbPr/YCbCr/YC x1)
    RGB 2 In: D-Sub HD 15-pin (female) x1 (RGB/YPbPr/YCbCr x1)
    VIDEO In: BNC x1 (composite video)
    SERIAL In: D-sub 9-pin (female) x1 for external control (RS-232C compliant)
    SERIAL Out: D-sub 9-pin (male) x1 for link control (RS-232C compliant)
    REMOTE 1 In: M3 x1 for wired remote control
    REMOTE 1 Out: M3 x1 for link control (for wired remote control)
    REMOTE 2 In: D-sub 9-pin (female) x1 for external control (parallel)
    LAN: RJ-45 x1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink™)
  • Cabinet materials: Molded plastic
  • Dimensions: 24-7/16" W x 11-15/32"*9 H x 31-1/2" D (620 x 291 x 800 mm) (optional lens not included)
    Weight*10: Approximately 94.8 lbs (43 kg) (optional lens not included)
  • Shipping dimensions: 38" W x 16-15/32" H x 34-1/16" D (965 x 418 x 865 mm)
  • Shipping weight: 116.8 lbs (53 kg)
  • Operation noise*3: 49 dB (quad lamp operation)
  • Operating environment: Operating temperature: 0–45°C (32–113°F)*11, operating humidity: 20– 80 % (no condensation)
  • Applicable software: Logo Transfer Software, Multi Projector Monitoring & Control Software, Geometry Manager Pro (included in the ET-UK20)
  • Supplied accessories: Power cord with secure lock, wireless/wired remote control unit, batteries (R6/AA type x 2)

* When the STANDBY MODE is set to ECO, network functions such as power on over the LAN will not operate. Also, only certain commands can be received for external control using the serial terminal.
*2 The usage environment affects the lamp replacement cycle.
*3 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*4 WUXGA resolution is supported only when the signals are compliant with VESA CVT-RB (Coordinated Video Timing-Reduced Blanking).
*5 Optical axis shift cannot be operated with the ET-D75LE50.
*6 ±22° with the ET-D75LE50, ±28° with the ET-D75LE6, and ±40° with the ET-D75LE10 and ET-D75LE20.
*7 Up to ±15° with the ET-D75LE50 and ET-D75LE6.
*8 Up to a total of ±55° during simultaneous horizontal and vertical correction.
*9 With legs at shortest position.
*10 Average value. May differ depending on the actual unit.
*11 The operating temperature range is 0 °C to 40 °C (32 °F to 104 °F) when the fan control is set to HIGH ALTITUDE MODE (for altitudes from 1,400 m to 2,700 m (4,593 ft to 8,858 ft) above sea level). When the projector is used with the ET-SFR510 Smoke Cut Filter, the operating temperature range is 0 °C to 35 °C (32 °F to 95 °F), and the projector cannot be used in places at high altitude.

NOTES:
1. Do not install the projector in locations that are subject to excessive water, humidity, steam, or oily smoke. Doing so may result in fire, malfunction, or electric shock.
2. The projector uses a high-voltage mercury lamp that contains high internal pressure. This lamp may break, emitting a large sound, or fail to illuminate, due to impact or extended use.
3. The projector uses of high-wattage lamp that becomes very hot during operation. Please observe the following precautions:

  • Never place objects on top of the projector while it is operation.
  • Make sure there is an unobstructed space of 500 mm (19-11/16 inches) or more around the projector’s exhaust openings.
  • Do not stack projector units directly on top of one another for the purpose of multiple (stacked) projection. When stacking projector units, be sure to provide the amount of space indicated between them. These space requirements also apply to installation where only one projector unit is operating at one time and the other unit is used as a backup.
  • If the projector is placed in a box or enclosure, temperature of the air surrounding the projector must be between 0 °C (32 °F) and 35 °C ( 95 °F). Also make sure the projector’s intake and exhaust openings are not blocked. Take particular care to ensure that hot air from the exhaust openings is not sucked into the intake.

4. If the projector is to be operated continuously 24 hours a day / 7 days a week, use the multi-lamp optical system’s alternating lamp operation (lamp changer) function. The projector can be operated continuously 24 hours a day / 7 days a week in four-lamp operation mode, but it will automatically operate with three lamps for 8 hours of the 24 hours / 7 days.
5. The lamp replacement cycle duration becomes shorter if the projector is operated repeatedly for short periods.

  • The length of time that it takes for the lamp to break or fail to illuminate varies greatly depending on individual lamp characteristics and usage conditions.
  • The brightness of the lamp will gradually decrease with use.

6. Because the ET-D75LE50 is a fixed short-throw lens, the lens shift function cannot be used with it.
7. Due to natural characteristics of lamps, screen brightness may vary (flicker). This is not an indication of faulty lamp performance.
