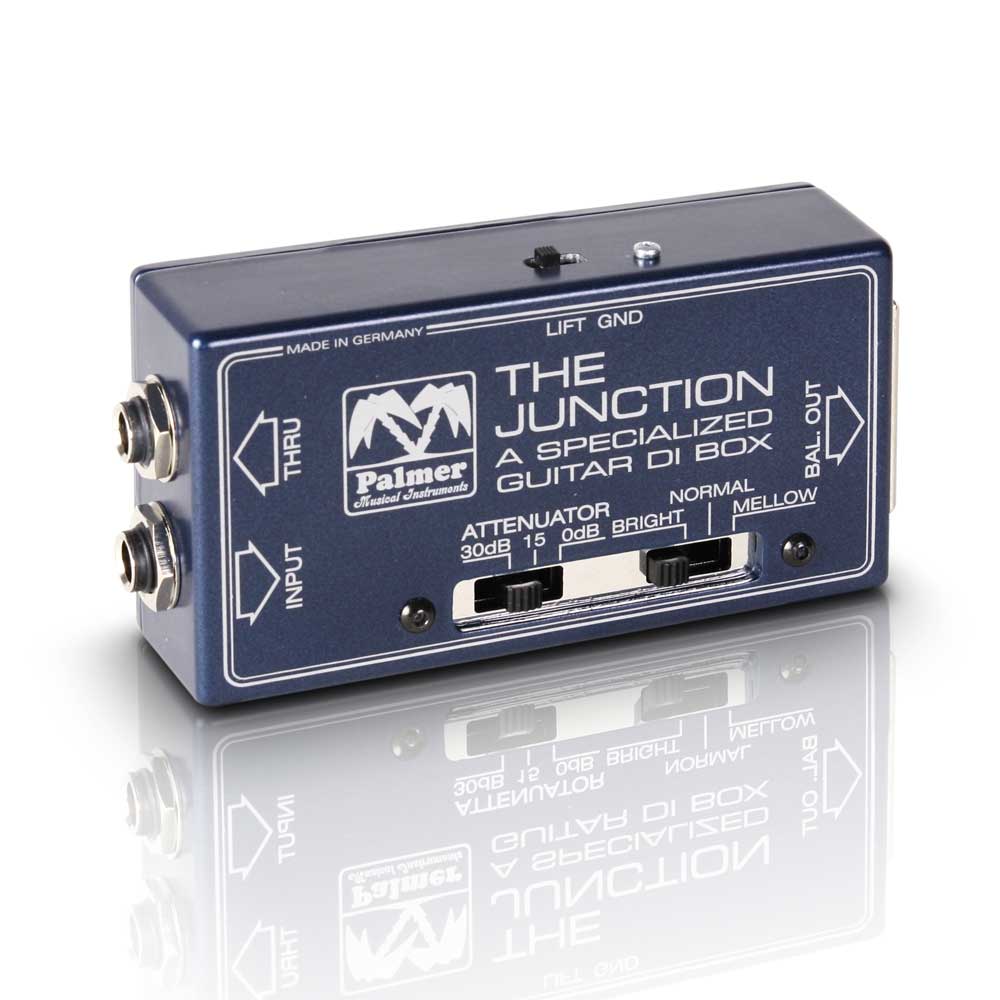

Palmer PDI09 Passive DI Box for Guitars

OUR PART #: PDI09 MFR #: PDI09

Copied to clipboard

The PDI09 can be connected between an effect device or amplifier and the mixing console. The PDI09 is not suitable for direct connection to a guitar. ...Read more

Palmer PDI09 Passive DI Box For Guitars Image 1
Palmer PDI09 Passive DI Box For Guitars Image 2
Palmer PDI09 Passive DI Box For Guitars Image 3
Palmer PDI09 Passive DI Box For Guitars
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The PDI09 can be connected between an effect device or amplifier and the mixing console. The PDI09 is not suitable for direct connection to a guitar. Integrated filter circuits simulate the authentic "speaker" sound. Tone can be varied between "Mellow", "Normal", or "Bright".

Palmer PDI09 Specifications:

  • Product type: speaker simulator
  • Type: passive
  • Channels: 1
  • Input type: unbalanced
  • Inputs: 1
  • Input connectors: 6.3 mm Jack
  • Dummy load: no
  • Outputs: 1
  • Output connectors: XLR, 6.3 mm Jack
  • Max. load: In Abhängigkeit der Last, max. 200
  • Output type: balanced
  • Voicing filter: yes
  • Output impedance: 600 Ohm(s)
  • Power attenuator: no
  • Controls: voicing, attenuator
  • Transformer isolated outputs: yes
  • Cabinet material: die-cast aluminium
  • Cabinet / Housing surface: powder coated
  • Dimensions (WxDxH): 120 x 60 x 35 mm
