RapcoHorizon Music G1S-20

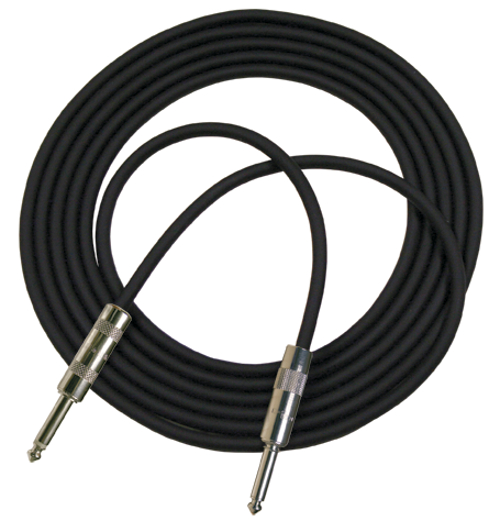

20 ft G1 Series 1/4" Male to Male Instrument Cable with Shrink Over Barrel

OUR PART #  G1S-20

Selected Model Price: $13.38
List Price: $21.12

Save up to 37%! (Low Price Guarantee)
Select model: (shipping times are approximate)

The RapcoHorizon G1S is their most popular guitar cable, utilizing an ultra-flexible matte PVC jacket material for durability. Each RapcoHorizon G1 cable is terminated with high-quality nickel-plated 1/4" connectors which offer years of superior performance and maximum value. Like all RapcoHorizon assemblies, the G1 Series cables are individually tested for performance and quality.

RapcoHorizon G1S-20 Features:

  • Hi-Z unbalanced instrument cable for interfacing instrument level gear with amplifiers (Guitars, Bass Guitars, Keyboards and other unbalanced Hi-Z signal sources)
  • Utilizing a serve shield for quiet operation yielding maximum flexibility
  • Low capacitance cable offers an expanded frequency response
  • Matte jacket PVC material is very flexible yet durable with very low memory
  • Pure copper conductor and shield
  • G1S Series features an added shrink strain relief utilizing a heat shrink process over the barrel of each connector

RapcoHorizon G1S-20 Specifications:

  • Cable: INST1
  • Conductor Gauge: 1x 24 gauge
  • Shield: Composite conductive vinyl and copper serve
  • Shield Coverage: 70%
  • Jacket: Matte PVC
  • O.D.: 0.242"
  • Capacitance: 25 pF/ft @ 1 kHz
  • Characteristic Impedance: 60 Ohms nominal
  • D.C. Resistance @ 20┬░C: 23 Ohms per 1000 ft
