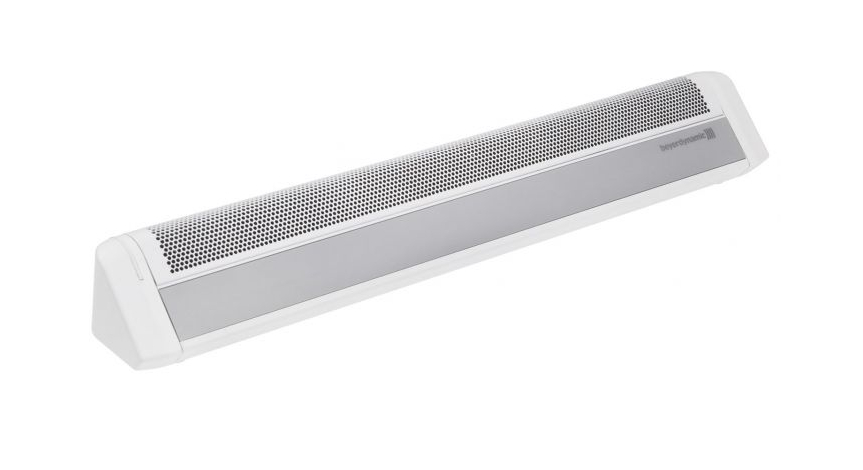

Beyerdynamic MPR210-W Horizontal Revoluto Desktop Array Microphone, White

The MPR 210 from beyerdynamic is a modern desktop array microphone. It works great for discussions, tele/video conferencing, and announcements. It features Revoluto technology with integrated microphone capsules that offer a so-called "corridor" characteristic. This ensures a wide pickup range with good voice quality. Within this range the speaker can freely move about, i.e. he/she can stand up or sit down, move his/her head and move towards or away from the microphone, with minimium variations in quality.

beyerdynamic MPR 210 W Features:

• Revoluto Technology
• Corridor characteristic
• State-of-the-art metal casing
• Fixed connecting cable 3-pin XLR connector
• Linear frequency response with high bandwidth

beyerdynamic MPR 210 W Specifications:

• Color: White
• Transducer type: Condenser (back electret)
• Frequency response: 130 - 17,000 Hz
• Microphone: Microphone Array, patented
• Polar pattern: Corridor
• Optimal distance when speaking: 60 - 80 cm
• Open circuit voltage at 1 kHz: approx. 200 mV/Pa
• Output level depending on the selected position:
  • Hi: 200 mV/Pa
  • Mid: 60 mV/Pa (-10 dB)
  • Lo: 20 mV/Pa (-20 dB)
• Nominal impedance: 200 Ohms
• Load impedance: > 1 kOhms
• Max. SPL at f = 1 kHz, k < 1%: 112 dB
• Signal-to-noise ratio rel. to 1 Pa: 60 dB
• Voltage supply: Phantom power:
  • 48 V ±4 V to 6.8 kOhms supply impedance
  • 24 V ±4 V to 1.2 kOhms supply impedance
• Power consumption: 3 mA
• T.H.D: < 0.1%
• Connection: 3-pin XLR, male
• Temperature range: -10 °C to +40 °C
• Dimensions (L x H x D): 300 x 40 x 45.5 mm
• Weight (without cable): 230 g
