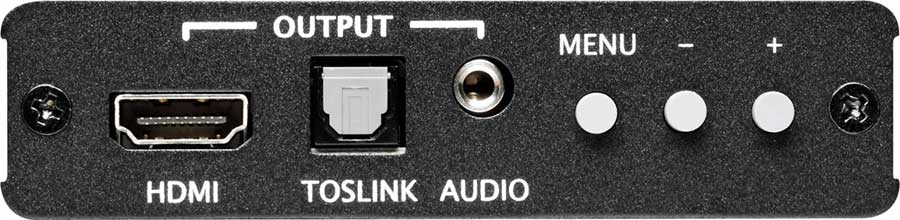

TV One 1T-VS-626
HDMI to HDMI Converter w/Delay

OUR PART #  1T-VS-626

Our Price: $349.00
In Stock

The 1T-VS-626 HDMI Scaler can accept audio embedded in the incoming HDMI signal or from the separate Toslink or analog Stereo inputs. The HDMI output can be the same resolution or scaled to a different resolution. Output audio is simultaneously present embedded in the HDMI signal and separately as Toslink and analog Stereo. This provides maximum flexibility for systems integration. The unit is ideal for situations where the HDMI source resolution and/or frame rate is incompatible with the display device’s resolution/frame rate. A comprehensive OSD menu and buttons allows selection of output resolution, adjustments of picture quality and audio source selection. It’s also possible to add up to 150ms of audio delay to compensate for lip sync errors.

Advanced features, such as 3D Motion Adaptive De- Interlacing and 50/60 Frame Rate Conversion combine to provide extremely high quality signal conversion. The unit is HDCP Compliant. A small inline power adapter is provided with locking DC connector for security.

Features:

  • HDMI v1.1, HDCP 1.1 Compliant
  • Maximum I/O Resolutions WUXGA and 1080p
  • Accepts 480i or 576i SDTV input
  • Automatically Detects Input Resolution
  • 50/60Hz Frame Rate Conversion
  • 3-D Motion Adaptive De-interlace
  • 3:2 and 2:2 Pull-Down
  • Video Level Adjustments
  • Supports embedded and external audio in and out
  • Up to 150ms Audio Delay
  • Locking DC Power Adapter

Specifications:

  • Video Input/Output
    HDMI 1.2 1x via HDMI Connector
  • Resolutions Supported
    PC Input/Output VGA through WUXGA
    HDTV Input/Output 480p, 576p, 720p, 1080i, 1080p
    SDTV Input 480i, 576i
  • Video Adjustments Contrast, Brightness, RGB Levels,
    Sharpness, Saturation, Hue
  • Scaling Engine
    De-Interlace 3D Motion Adaptive
    Pull-Down 3:2 + 2:2 Recovery
    Compliance HDMI v1.2, HDCP v1.1, DVI v1.0
    Image Processing Full Time/Full Range
    Frame Rate Conversion 50/60Hz
    Scan Conversion Converts all Standard Formats
  • Audio Inputs/Outputs
    Analog Stereo 1x via 3.5mm Connectors
    Digital 1x SPDIF via Toslink Connectors
  • Audio Performance
    Output Delay Off/40ms/110ms/150ms
    Analog Stereo Level In 2Vrms max @ 47KO
    Analog Stereo Level Out 1Vrms @ 47KO
    Toslink Sampling Rate 48KHz, 2CH, LPCM
    Analog Bandwidth 20Hz to 20 KHz
  • Mechanical
    Size (H-W-D) 25x102x145mm (1x4x5.7”)
    Weight (Net) 324g (0.71 lbs)
  • Warranty
    Limited Warranty 2 Years Parts and Labor
  • Environmental
    Operating Temperature 0° to +50°C (+32° to +122°F)
    Operating Humidity 10% to 90%, Non-condensing
    Storage Temperature -10° to +60° C (+14° to +140° F)
    Storage Humidity 10% to 90%, Non-condensing
  • Power Requirement
    External Power Supply 5VDC @ 2A – Locking DC
  • Regulatory Approvals
    Converter Unit FCC, CE, RoHS
    Power Supply UL, CUL, CE, PSE, GS, RoHS
  • Accessories Included
    1x AC Power Adapter US, UK or Euro
    1x Operations Manual

TV One 1T-VS-626
HDMI to HDMI Converter w/Delay

OUR PART #  1T-VS-626

Product Information:

The 1T-VS-626 HDMI Scaler can accept audio embedded in the incoming HDMI signal or from the separate Toslink or analog Stereo inputs. The HDMI output can be the same resolution or scaled to a different resolution. Output audio is simultaneously present embedded in the HDMI signal and separately as Toslink and analog Stereo. This provides maximum flexibility for systems integration. The unit is ideal for situations where the HDMI source resolution and/or frame rate is incompatible with the display device’s resolution/frame rate. A comprehensive OSD menu and buttons allows selection of output resolution, adjustments of picture quality and audio source selection. It’s also possible to add up to 150ms of audio delay to compensate for lip sync errors.

Advanced features, such as 3D Motion Adaptive De- Interlacing and 50/60 Frame Rate Conversion combine to provide extremely high quality signal conversion. The unit is HDCP Compliant. A small inline power adapter is provided with locking DC connector for security.

Features:

  • HDMI v1.1, HDCP 1.1 Compliant
  • Maximum I/O Resolutions WUXGA and 1080p
  • Accepts 480i or 576i SDTV input
  • Automatically Detects Input Resolution
  • 50/60Hz Frame Rate Conversion
  • 3-D Motion Adaptive De-interlace
  • 3:2 and 2:2 Pull-Down
  • Video Level Adjustments
  • Supports embedded and external audio in and out
  • Up to 150ms Audio Delay
  • Locking DC Power Adapter

Specifications:

  • Video Input/Output
    HDMI 1.2 1x via HDMI Connector
  • Resolutions Supported
    PC Input/Output VGA through WUXGA
    HDTV Input/Output 480p, 576p, 720p, 1080i, 1080p
    SDTV Input 480i, 576i
  • Video Adjustments Contrast, Brightness, RGB Levels,
    Sharpness, Saturation, Hue
  • Scaling Engine
    De-Interlace 3D Motion Adaptive
    Pull-Down 3:2 + 2:2 Recovery
    Compliance HDMI v1.2, HDCP v1.1, DVI v1.0
    Image Processing Full Time/Full Range
    Frame Rate Conversion 50/60Hz
    Scan Conversion Converts all Standard Formats
  • Audio Inputs/Outputs
    Analog Stereo 1x via 3.5mm Connectors
    Digital 1x SPDIF via Toslink Connectors
  • Audio Performance
    Output Delay Off/40ms/110ms/150ms
    Analog Stereo Level In 2Vrms max @ 47KO
    Analog Stereo Level Out 1Vrms @ 47KO
    Toslink Sampling Rate 48KHz, 2CH, LPCM
    Analog Bandwidth 20Hz to 20 KHz
  • Mechanical
    Size (H-W-D) 25x102x145mm (1x4x5.7”)
    Weight (Net) 324g (0.71 lbs)
  • Warranty
    Limited Warranty 2 Years Parts and Labor
  • Environmental
    Operating Temperature 0° to +50°C (+32° to +122°F)
    Operating Humidity 10% to 90%, Non-condensing
    Storage Temperature -10° to +60° C (+14° to +140° F)
    Storage Humidity 10% to 90%, Non-condensing
  • Power Requirement
    External Power Supply 5VDC @ 2A – Locking DC
  • Regulatory Approvals
    Converter Unit FCC, CE, RoHS
    Power Supply UL, CUL, CE, PSE, GS, RoHS
  • Accessories Included
    1x AC Power Adapter US, UK or Euro
    1x Operations Manual
