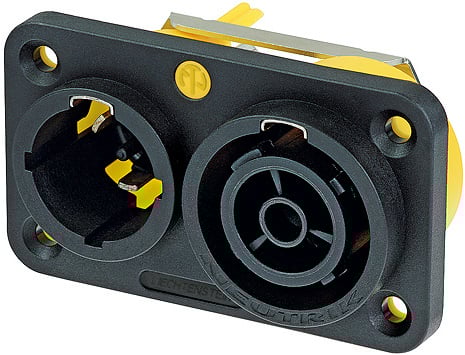

Neutrik NAC3PX
Appliance Inlet/Outlet Combo Receptacle with 1/4" Flat Tab Terminals

OUR PART #:  NAC3PX

Neutrik's NAC3PX powerCON TRUE1 is a locking 16/20 A true mains connector.
Learn More
Our Price: $9.61
List Price: $13.70
Save up to 41% when you order by quantity!
  • Buy 25: $8.68 each.
  • Buy 50: $8.37 each.
  • Buy 100: $8.06 each.
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NAC3PX
Qty:
Similar Products

Neutrik's NAC3PX powerCON TRUE1 is a locking 16/20 A true mains connector.  It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.


Neutrik NAC3PX powerCON TRUE1 Features:

  • Appliance inlet-outlet combination for daisy-chaining
  • True mains connector with breaking capacity (CBC)
  • Lockable 16 A single phase connector (USA: 20 A)
  • Easy and reliable twist lock system
  • Extremely robust and reliable
  • ENEC certified according to IEC 60320
  • UL recognized components
  • IP65 – water resistant when mated with ready-made cord sets

Neutrik NAC3PX powerCON TRUE1 Specifications:

Electrical Specifications:

  • Contact resistance: = 3 mOhm (inner)
  • Dielectric strength: 4 kVdc
  • Insulation resistance: > 0.1 GOhm (after damp heat test IEC 68-2-30)
  • Number of electronical contacts: 2 + PE
  • Rated current per contact: 16 A rms (USA: 20 A)
  • Rated voltage: 250 V ac

Mechanical Specifications:

  • Lifetime: > 5000 mating cycles
  • Wiresize: 2.5 mm²
  • Wiresize: 12 AWG

Material Specifications:

  • Contact plating: 2 µm Ag
  • Contacts: Bronze (CuSn0.2)
  • Insert: PA 6.6 30 % GF
  • Shell: PA 6.6 30 % GF

Environmental Specifications:

  • Flammability: UL 94 V-0
  • Protection class: IP 20 (mated), IP 65 (ready-madecord sets)
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C - +80 °C
