Radial Engineering Workhorse 8-Slot Power-Rack with 8-Channel Summing Mixer and Headphone Amp

OUR PART #: WORKHORSE-500

Copied to clipboard

The Radial Workhorse is a modular rack and mixer that combines the popular 500 series platform with a flexible patching system. ...Read more

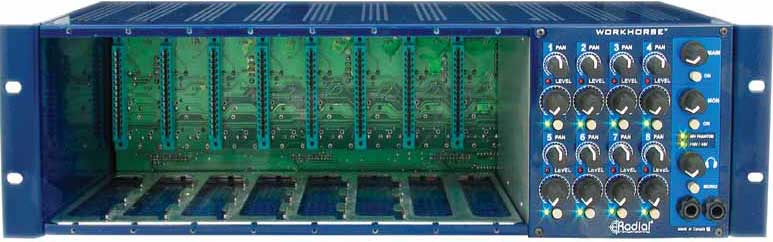

Radial Engineering Workhorse 8-Slot Power-Rack With 8-Channel Summing Mixer And Headphone Amp Image 1
Radial Engineering Workhorse 8-Slot Power-Rack With 8-Channel Summing Mixer And Headphone Amp Image 2
kd4zG8Alhyo
1 Video
Radial Engineering Workhorse 8-Slot Power-Rack With 8-Channel Summing Mixer And Headphone Amp
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Radial Workhorse is a modular rack and mixer that combines the popular 500 series platform with a flexible patching system.

Equipped to handle up to 8 modules, the Workhorse lets you mix and match preamps, EQs and compressors and bring them all together in one rack. Individual modules may be accessed on the rear panel following the traditional API™ format or bused to the built-in 8x2 summing mixer for left-right signal panning, level control and muting. Once mounted, a unique 'feed' functon lets you configure modules to feed one another in series to create a channel strip to your liking.

The master section features a traditional virtual ground mix bus combined with the superb sonic performance of Jensen Transformers on the main mix outs. A separate stereo monitor output provides playback, plus a super-loud dual-output headphone amp lets the engineer share the mix with the artist. Multiple Workhorses may be ganged together using the expansion buss to build 16, 24 or even 32 channel systems.

Rear panel connectivity is extensive: Each channel is equipped with traditional XLR input and output. This is augmented with 1/4" TRS jacks for balanced or unbalanced connectivity. A special Omniport™ jack delivers module-specific functionality that can range from an extra output, ducking input or effects insert depending on the module design. The Workhorse comes ProTools™-ready with 8-channel D-subs for the inputs and outputs plus third D-Sub gives you access to the built-in summing mixer for those that prefer the added warmth of analogue summing. Powering concerns are addressed with a unique 'pooled' supply that shares 1200 milliamps of current between the available 8 slots. This allows high current demand modules to exceed the usual limitations of other 500 series racks without the worry of brown outs.

Features

  • 500 series 8 slot rack with 8x2 summing mixer
  • Backwards compatible
  • Plenty of current for power-hungry modules
  • Dual output headphone bus for monitoring

Specifications

  • Audio Circuit Type: Connection bus from modules to connectors
  • Transformer: Jensen Transformer, isolation on main outputs
  • # of Channels: 8 card slots (inputs), stereo outputs
  • Total Harmonic Distortion:
    • 0.007% @ 1 kHz with 10 dB in and 10 dB out
    • 0.05% @ 20 Hz with 10 dB in and 10 dB out
  • Noise: -91 dB with +20 dB output
  • Voltage Gain: Up to +23 dB on the main output
  • Cross Talk: -65 dB
  • Features: Level control, phantom power, headphone, OmniPort
  • Input Connectors (Card Slot Inputs): 8 x XLR, 1/4", D-sub
  • Output Connectors (Card Slot Outputs): 8 x XLR, 1/4", D-sub
  • Output Connectors (Summing Mixer):
    • XLR, 1/4" TRS Jensen Transformer isolated main outputs, 1/4" Headphone outputs
  • Power: 100V - 240V AC with +48V phantom input (1200mA output)
  • Conditions: For use in dry locations only, 5-40°C
  • Dimensions: 5.25" x 19" x 7.44"
  • Weight: 12.4 lbs (5.6 kg)
