Belden 1855-ABHD1

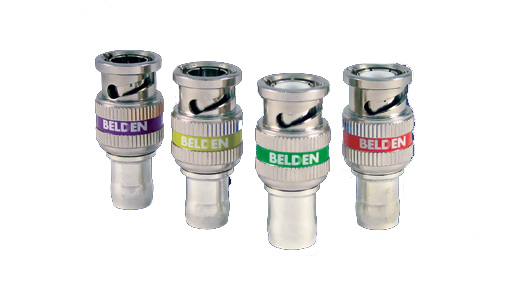

1-Piece BNC Connector, RF/Coax

OUR PART #:  1855-ABHD1

Belden introduces the new 1-Piece HD Brilliance® BNC Compression Connector.
Learn More
Our Price: $2.97
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Belden 1855-ABHD1
Qty:
Similar Products

Belden introduces the new 1-Piece HD Brilliance® BNC Compression Connector. This 1-piece connector offers faster, more consistent field installation with the same excellent signal quality and performance as traditional three-piece connectors. Brilliance® connectors are
specifically designed for use with Brilliance® cable, creating the perfect connector-to-cable combination.

Features:

  • Offers excellent Return Loss performance
  • Faster and simpler installation
  • Belden end-to-end solution using proven compression technology
  • Belden’s patented extended head knurl nut design for easy gripping when installing
  • Limited Lifetime Connector Warranty when partnered with Belden Brilliance® Cable
  • Superior pullout strength

Specifications:

Physical Properties

  • Material: Brass

Environmental Properties

  • Temperature Rating: -40 ºF (-40 ºC) to 140 ºF (60 ºC)
  • Corrosion: ASTM B117

Mechanical Properties

  • Durability: 500 Cycles Minimum

Electrical Properties

  • Return Loss: < -22 dB to -32 dB (1 GHz to 4.5 GHz)
    Voltage Rating: 500V RMS
  • Insulation Resistance: >5000 Megaohms at 100 Vdc

To be the first to review this item, click here.
