Product Overview
Compatibility: All Sennheiser transmitters using Lemo connector.

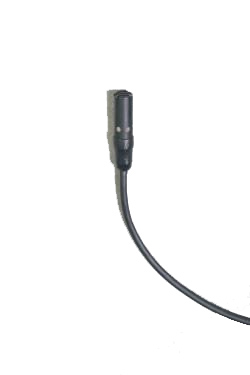

Designed to be worn as a lavalier or hidden in clothing, Audio-Technica’s discreet-design cardioid AT898 offers maximum intelligibility, accurate voice reproduction and unobtrusive appearance for use in houses of worship, broadcast studios, theaters, etc. Its switchable low-frequency roll-off reduces sensitivity to popping.
Features:
- Maximum intelligibility and clean, accurate reproduction for lecturers, stage and television talent, and houses of worship
- Low-profile design (a mere 5 mm in diameter) is ideal for applications requiring minimum visibility
- Operates on battery or phantom power
- Extensive array of provided accessories includes a clothing clip, viper clip, magnet clip and lanyard (black models only), windscreens, interchangeable single and double mic holders
- 55" (1.4m) cable permanently attached to mic, TA3F connector at power module
- RoHS compliant—free from all substances specified in the EU directive on hazardous substances
Specifications:
- Element: Fixed-charge back plate, permanently polarized condenser
- Polar Pattern: Cardioid
- Frequency Response: 200-15,000 Hz
- Low Frequency Roll-Off: 80 Hz, 12 dB/octave
- Open Circuit Sensitivity:
- Phantom: -43 dB (7.0 mV) re 1V at 1 Pa
- Battery: -46 dB (5.0 mV) re 1V at 1 Pa
- Impedance:
- Phantom: 200 ohms
- Battery: 250 ohms
- Maximum Input Sound Level:
- Phantom: 131 dB SPL, 1 kHz at 1% T.H.D.
- Battery: 115 dB SPL, 1 kHz at 1% T.H.D.
- Dynamic Range (Typical):
- Phantom: 100 dB, 1 kHz at Max SPL
- Battery: 84 dB, 1 kHz at Max SPL
- Signal To Noise Ratio: 63 dB, 1 kHz at 1 Pa
- Phantom Power Requirements: 11-52V DC, 2 mA typical
- Battery Type: 1.5V AA/UM3
- Battery Current/ Life: 0.4 mA / 1200 hours typical (alkaline)
- Switch: Flat, roll-off (recessed)
- Weight:
- Microphone: 0.03 oz (0.9 g)
- Power Module: 3.6 oz (102 g)
- Dimensions:
- * 0.91" (23.0 mm) long
- * 0.21" (5.3 mm) diameter
- Output Connector (Power Module): Integral 3-pin XLRM-type
