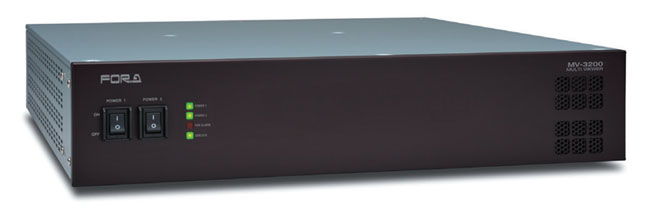

FOR-A Corporation MV-3200MF
Multi-Viewer, 2RU Main Frame

OUR PART #:  MV-3200MF

Our Price: $3,648.00
List Price: $3,800.00
Write the first review.
FOR-A Corporation MV-3200MF
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The MV-3200 series is a multi viewer offering a multi-monitor display environment suited to your system by selecting and installing the required input and output cards on a 2U frame. Up to 4 input and 2 output cards can be installed on the frame, for a multi viewer with a maximum of 32 inputs and 4 outputs. Supports mixed input of HD-SDI, SD-SDI, analog composite and DVI (analog and digital) signals.


  • MV-3200MF: 2U size frame allowing installation of up to 4 input cards and 2 output cards.
  • Supports mixed input of analog composite, SD-SDI, HD-SDI and DVI signal by combining input cards (asynchronous input allowed). The lineup includes multiple cards to support your types and number of input signals. You can select a single optimal unit to suit your system size and input signal type.
  • Enables up to 32 video windows for each output card. The input video of your choice can be selected for each video window and the same input video can be displayed on multiple windows.
  • A maximum of 4 clocks can be displayed for each output card. Also, if not used as a clock display, it can be used as a count-up/count-down timer and remaining time counter.
  • The layout editor, which operates on a PC, comes standard, letting you change various settings such as split patterns and title display freely from a PC. The layout screen can be saved on the main unit memory in up to 32 patterns. By using the dedicated remote control software, layout patterns saved on the main unit can be recalled easily.
  • A function is provided to display the level of the embedded audio signal that is superimposed on HD/SD-SDI. Also, by installing an analog audio or AES/EBU audio card into an input card slot, their levels also can be displayed.
  • Tally display: Can be selected from frame tally or marker tally indicator. Two tally indicators can be set per window.
  • Title display: Up to two strings of text can be displayed for each input. Supports display of alphanumeric characters and symbols (up to 16 letters), which can be displayed within or outside the picture.
  • Up to 2 output cards can be installed on a 2U frame, each operating independently. If one card malfunctions, the other one can display 32 inputs.


  • Video Formats:
      -  3G: 1080/60p, 1080/59.94p, 1080/50p (LEVEL A)
      -  HD: 1080/60i, 1080/59.94i, 1080/50i, 720/60p, 720/59.94p, 720/50p, 1080/30p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p, 720/24p, 720/23.98p, 1080/30PsF, 1080/29.97PsF, 1080/25PsF, 1080/24PsF, 1080/23.98PsF, 1035/60i, 1035/59.94i
      -  SD: 525/60 (NTSC), 625/50 (PAL)
  • Video Inputs: Accepts the following signals via option cards (Mix input, asynchronous acceptable):
      -  HD-SDI/SD-SDI Input Card (MV-32HSDI):
          *  3G-SDI: 2.97 Gbps or 2.97/1.001 Gbps, 75O BNC
          *  HD-SDI: 1.485 Gbps or 1.485/1.001 Gbps, 75O BNC
          *  SD-SDI: 270 Mbps, 75O BNC
          *  Quantization: Y: 10-bit, C: 10-bit
          *  Number of inputs: 8 inputs per MV-32HSDI card
      -  Analog Composite Input Card (MV-32AI):
          *  Analog Composite: 1.0 Vp-p, 75O BNC
          *  Quantization: Y: 10-bit, C: 10-bit
          *  Number of inputs: 8 inputs per MV-32AI card
      -  Analog Composite Input Card (MV-32AIL):
          *  Analog composite: 1.0 Vp-p loop-through or 75O termination (manually selectable) BNC
          *  Quantization: Y: 10-bit, C: 10-bit
          *  Number of inputs: 4 inputs per MV-32AIL card
      -  DVI (Digital and Analog RGB) Input Card (MV-32PCI):
          *  Analog RGB:
              -  DVI-I connectors
              -  Quantization: R: 8-bit, G: 8-bit, B: 8-bit
              -  Input resolution: PC (VESA DMT) 640x480, 1024x768, 1280x1024, 1360x768, 1600x1200, 1920x1200, 1440x900,
              -  Note: 1920x1200 is supported only for Reduced Blanking VIDEO (SMPTE), 1920x1080p, 1280x720p
              -  Refresh rate: 60 Hz, R/G/B: 0.7 Vp-p, H/V: TTL
              -  Note: Support progressive video only.
          *  DVI:
              -  DVI-I connectors
              -  Quantization: R: 8-bit, G: 8-bit, B: 8-bit
              -  Input resolution: PC (VESA DMT) 640x480, 1024x768, 1280x1024, 1360x768, 1600x1200, 1920x1200, 1440x900,
                 1680x1050 * 1920x1200 is supported only for Reduced Blanking VIDEO (SMPTE), 1920x1080p, 1280x720p
              -  Refresh rate: 60Hz, HDCP not supported
              -  Note: Support progressive video only.
              -  Note: Plug-and-play devices such as computers that are connected to the DVI output connectors are recognized as
                           DVI-D compatible monitors.
              -  Number of inputs: 3 inputs per MV-32PCI card
  • Audio Input (via option cards)
      -  HD-SDI/SD-SDI Input Card (MV-32HSDI):
          *  Embedded audio signal
          *  Sampling frequency: 48 kHz (sync to input video signals)
          *  Quantization: 16 to 24-bit
          *  16 channels per 3G/HD/SD-SDI input signal (4 groups, 8-stereo pairs)
          *  Number of inputs: 128 channels per MV-32HSDI card
      -  Analog Audio Input Card (MV-32AAI):
          *  Analog Audio signal,Balanced or unbalanced, 25-pin D-sub (female) x 2 (inch screw)
          *  Note: The circuit between COLD and SHIELD pins must be shorted outside the unit for an unbalanced input.
          *  Input impedance: 600O or Hi-Z
          *  Input level: -10 dBV/-3 dBu/0 dBu/+4 dBu
          *  Maximum input level (with +4 dBu input level): +24 dBu (balanced), +18 dBu (unbalanced)
          *  Rated input power (with 600O termination): +24 dBm
          *  Sampling frequency: 48 kHz, Quantization: 24-bit
          *  Number of inputs: 16 channels per MV-32AAI card (8-stereo pairs)
      -  AES Audio Input Card (MV-32DAI):
          *  AES Audio signal, Unbalanced, 75O BNC x 8
          *  Sampling frequency: 32/44.1/48 kHz
          *  Quantization: 16 to 24-bit
          *  Number of inputs: 16 channels per MV-32DAI card (8-stereo pairs)
  • LTC Input: 1 input, SMPTE time code 1.0 Vp-p within ±6 dB
  • Video Outputs:
      -  DVI: (Outputs digital and analog outputs at the same time), DVI-I connector x 2
      -  Quantization: R: 8-bit, G: 8-bit, B: 8-bit
      -  Resolution: 1920x1200, 1600x1200, 1280x1024, 1360x768, 1440x900, 1680x1050, 1920x1080, 1280x720
      -  Refresh Rate: 60 Hz, 59.94 Hz, 50 Hz
      -  Note: No input/output frame rate converter. A frame rate difference between input and output may result in a repeat
                   frame or drop frame.
  • SDI output (when an MV-32HDO option is installed):
      -  75O BNC x 2, Output modes of DVI Layout and Routing Switcher are selectable for each output separately.
      -  Quantization: Y: 10-bit, C: 10-bit (Normal), Y: 8-bit, C: 8-bit (MV-32RT vertical rotation)
      -  DVI Layout mode:
          *  3G-SDI: 2.97Gbps or 2.97/1.001Gbps, 1080/59.94p, 1080/50p (Level A)
          *  HD-SDI: 1.485 Gbps or 1.485/1.001 Gbps, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
          *  Note: Blue matte background for other than 1080p or 720p.
      -  Routing Switcher mode:
          *  SD (270 Mbps), HD (1.485 Gbps or 1.485/1.001 Gbps), 3G (2.97 Gbps or 2.97/1.001 Gbps)
          *  Note: The same as inputs.
          *  Note: Inputs in the MV-32PCI are recognized as 3G signals (1920x1080/59.94p Level A). 1920x1200 input
                        signals will be resized to 1920x1080. Signals of other resolutions will be displayed in the original size at the
                        center of  1920x1080.
          *  Note: In the Routing Switcher mode, input signal changes cause switching noises. Signal switching using switching
                        point is not supported.
  • Audio Output:
      -  Analog Audio:
          *  RCA pin jack x 2 (1 stereo pair, or 2 mono channels), unbalanced
          *  Output impedance: 100O or below, Output level: -10 dBV
          *  Maximum output level: +5 dBV, Sampling frequency: 48 kHz
          *  Quantization: 24-bit
      -  Embedded Audio (when an MV-32HDO option is installed):
          *  Group x 4 (8 stereo pairs)
          *  Sampling frequency: 48 kHz
          *  Quantization: 24-bit
  • Genlock Input BB: NTSC 0.429 Vp-p/PAL 0.45 Vp-p, Tri: 0.6 Vp-p
  • I/O Delay 1 to 1.5 frames (with an interlaced SDI video input)
  • Video Window:
      -  Up to 32 windows per output card.
          *  Up to 32 total windows for 2 outputs.
          *  Full: 5/32, 1/4: 15/32, 1/16: 12/32 (Output resolution: Max. Window No.)
  • Clock Window:
      -  Up to 4 windows per output card.
      -  Up to 4 total windows for 2 outputs.
      -  Internal clock or LTC time code selectable
          *  Accuracy within ±10 seconds per month (at 25ºC)
  • Count up/down timer and remaining time counter display:
      -  Displayed in clock window. (Internal clock or LTC is selectable for remaining time counter.)
      -  Count up/down timer uses an internal crystal oscillator: Temperature characteristic within ±50PPM (0ºC to 40ºC)
  • Background Display: 1 image per output can be saved and displayed. Max. image size: 1920x1200
  • Logo Display: 2 Images per output can be saved and displayed. Max. image size: 480x480
  • Screen Layout: User customized layout, Up to 32 layout patterns can be saved.
  • Title Display:
      -  Character limit: Max.16 characters x 2 lines for each input channel
      -  Character types: Alphanumeric characters and symbols
  • Tally Indication: Square indicator (red or green) or frame (red, green) for each input
  • Audio Level Metering: Up to 16 audio channels of embedded audios per input (MV-32AAI and MV-32DAI options for other audio level metering support.)
  • Time Code Display: Time code reader display for embedded 3G (Level A)/HD/SD-SDI ancillary time code (ATC)
      -  Ancillary Time Codes (ATC) are not passed through.
      -  Time code input in LTC connector is not displayed.
  • Video Timer Display: The clock display window can be used as a count-up can be displayed or count-down timer.
  • Time Code Display: Ancillary time code (ATC) embedded on 3G/HD/SD-SDI \
  • Video Monitoring: Video loss, Freeze*, Illegal luminance level detection
      -  When calculated active picture CRC values are equal.
  • Audio Monitoring: Audio loss, Silence, Over level detection
  • Interfaces:
      -   RS-232C/RS-422/RS-485:
          *  9-pin D-sub (male) x 1
          *  Baud rate: 9,600/19,200/38,400/57,600/115,200 bps, data length 8-bit, stop bit 1-bit, parity NONE/ODD/EVEN
      -  GPIO:
          *  50-pin D-sub (female), 6/50 pins are input/output compatible.
          *  Up to 48 inputs (up to 96 inputs with 2 output card options)
          *  Input: Layout patterns 1 - 32
          *  Input switching of CHs 1 - 32 for windows 1 - 4
          *  Audio switching of CHs 1 - 32 for audio monitors 1 and 2
          *  Red/green tally inputs CHs 1 - 32* (TTL negative logic level signal or Make contact)*
          *  Time correction input, Alarm reset input, Count up/down timer start/stop/reset
          *  Video source switching for SDI OUT 1 and 2 (TTL negative logic pulse signal or make contact) except*
          *  Output: Open collector, negative logic max. load: 24 V DC 40 mA (equivalent to 74LS06)
          *  Alarm output: FAN, video signal loss, video freeze, luminance level, black level, audio over level, audio silence level, audio loss
              Status output: Power units 1 and 2, GENLOCK, Timers> Time correction output
      -  LAN:
          *  100BASE-TX/1000BASE-T, RJ-45 (Category 5) x 1
  • Layout Editor: Edit size and position of windows in multi-channel screen (Windows software)
  • Remote Control Software: Switch multi-channel screen layouts (Windows software)
  • Live Viewer: Software for video transmission (Windows software)
  • Logo Registry: Software Registers background image and logo data (Windows software)
  • Data Backup: Stores the setting data to the memory (Rewrite capacity: approx. one hundred thousand times)
      -  Frequent changes of display settings may result in being unable to retain data.
  • Temperature / Humidity: 0ºC to 40ºC / 30% to 90% (no condensation)
  • Backup battery: Internal lithium battery (to maintain time)
  • Power: 100 V AC to 240 V AC ±10%, 50/60 Hz
  • Power Consumption: Max. 333 VA (326 W) (at 100 V AC), Max. 328 VA (314 W) (at 200 V AC)
  • Dimensions / Weight:
      -  430 (W) x 88 (H) x 510 (D) mm, EIA 2 RU
      -  14.5kg (MV-3200MF x 1, MV-32HSDI x 4 , MV-32PCDO x 2 , MV-32PS x 1)
  • Accessories:
      -  Operation manual
      -  AC cord
      -  Rack mount brackets
      -  CD-ROM (Layout Editor, Remote Control Software, Live Viewer, Logo Registry Software)
