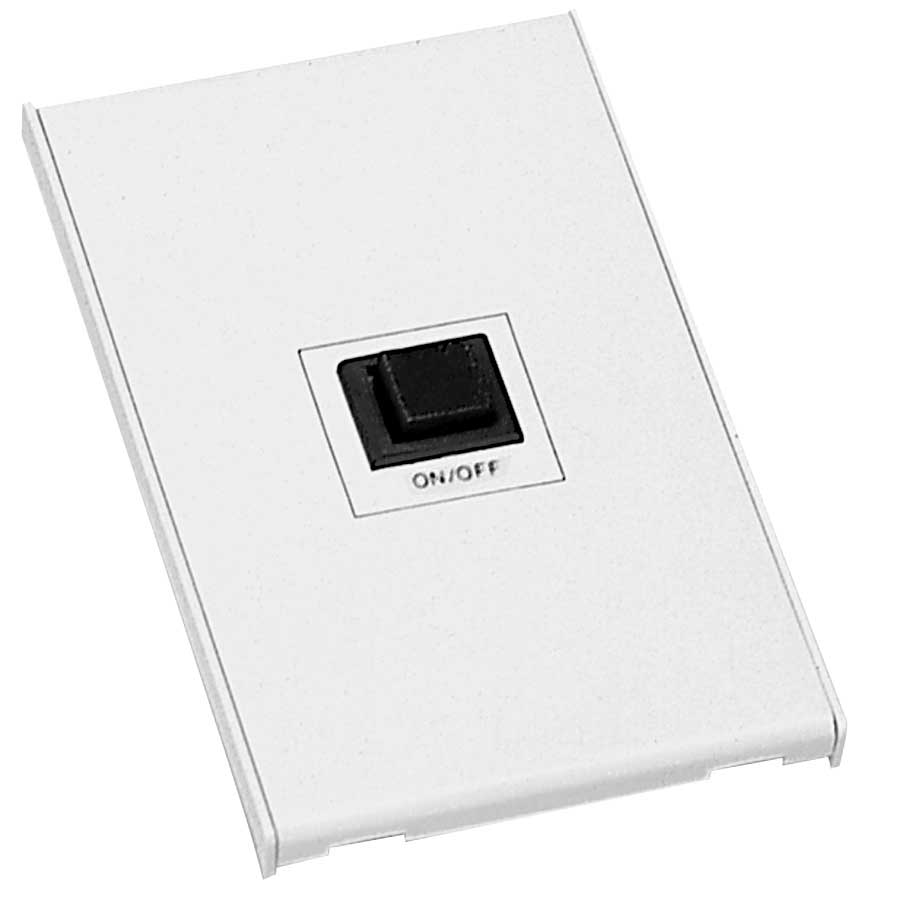

Leviton RMB81-021
Single-Gang On/Off Remembrance Entry Station

OUR PART #:  RMB81-021

Integrated with DMX512...
Learn More
Our Price: $150.29
List Price: $164.43
You save 9%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Leviton RMB81-021
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Integrated with DMX512, the Remembrance series of controls from Leviton/NSI presents complete control of theatrical and architectural lighting with programmable buttons and sliders.  A wide variety of stations are available, including LCD buttons and sliders.

Features:

  • Completely programmable buttons and sliders
  • Wide variety of stations, including buttons and sliders
  • Simple, powerful preset storage and recall
  • Control up to 512 channels on up to 12 faders
  • Economical solutions for smaller systems
  • Snapshot function for easy programming

Additional Features:

  • The Colortran 8-1021 series single pushbutton control panel can turn on and off selected control channels.  These channels may be composed of 1 or more incandescent or low voltage dimmers.  A single pushbutton turns the station on and off as well as taking control from other stations which control the same dimmers.
  • This system provides for the greatest flexibility in control for applications where lighting needs are constantly changing and cannot be met with a series of pre-designed looks.
  • Multiple stations may be installed allowing control from several locations.

Mechanical:

  • Finish: The control faceplate shall be sheet metal painted white. Custom legends may be included, if specified.
  • Mounting: The entire assembly shall mount into a contractor furnished 3.5” [8.9 cm] deep back box (Steel City CY-1/2 or equivalent). There shall be no fasteners visible on the front surface.

Electrical:

  • Pushbutton: Control station shall contain a momentary pushbutton switch with integral LED indicator, and circuitry to turn station on and off. Additional circuitry shall be provided to "take control" from any other station connected to it.
  • Wiring: Control stations shall be low voltage wired to terminals in the Dimmer Rack. The number of conductors required is 4. Wire shall be 1898 or equal control cable.

Operation:

  • Pushing the Take Control/On-Off switch will cause an indicator lamp behind the button to illuminate.
  • The rear illumination indicates that the station is active. All connected channels will turn on full.
  • Pushing the Take Control/On-Off switch while it is illuminated will cause the station to turn off the indicator in the switch and all dimmers associated with the station.
  • Pushing the Take Control/On-Off switch at an inactive station while another connected station is active will take control away from the active station.  The dimmers associated with those stations will immediately go to the levels indicated on the newly active station.

Dimensions: 2.86" W x 4.56" H (7.3 x 11.6 cm)
