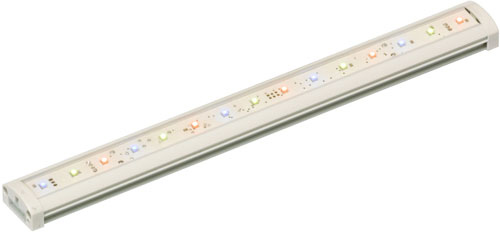

Philips Color Kinetics 316-000004-02
Vaya Cove Color, 45.7" RGB

OUR PART #  316-000004-02

Call for price! Not available online.


Recommended Accessories

Philips Color Kinetics 316-000004-02 Vaya Cove is a cost effective and reliable color-changing light fixture for interior use. Vaya Cove is designed for cove and accent lighting applications. Three lengths, standard 24V DC power, RDM discovery and addressing, and DMX-512 control make this product easy to use with Philips or third-party RDM and DMX controllers.

Philips Color Kinetics Vaya Cove Features:

  • Cost effective, reliable LED lighting fixture
  • 120° Beam Angle
  • Low Voltage, 24V DC input power
  • DMX-512 control / RDM discovery and addressing
  • Interior use

Philips Color Kinetics Vaya Cove Specifications:

  • Height: 0.86" (22 mm) (including surfacemount clip)
  • Width: 1.25" (32 mm) (including surface mountclip)
  • Length: 11.8" (0.3 m) / 23" (5.91 m) / 45.7" (1.16 m)
  • Mounting: Removable mounting clips for flush mounting
  • Source: High-brightness Red, Green and Blue LEDs
  • Beam Angle: 120°
  • Output Luminous Flux: 46" (1.2m): 150 lm
  • Lumen Maintenance: 50,000 hrs L50 at 25°C
  • Housing: Extruded polycarbonate, white housing with clear lens
  • Weight: 46" (1.2m): 0.8 lbs (360 g)
  • Connector:  Integrated connector for input data and power and end-to-end coupling
  • Leader Cable: White, 6.5 ft. (2m) and 25 ft (8m)
  • Jumper Cable: White, 1" (24mm), 12" (0.3m), and 59" (1.5m)
  • Y-Jumper Cable: White, 12" (0.3m) data and 25ft (8m) power or White, 59" (1.5m) data and 25 ft (8m) power
  • Control: DMX-512 control and RDM discovery and addressing, One address per fixture
  • Input Voltage: 24V DC
  • Power Consumption: 46" (1.2m): 12.4 W
  • Temperature Range: -4°F to 104°F (-20°C to 40°C) operating temperature
  • Protection Rating: IP20, Interior applications
  • Certifications: UL / cUL, FCC Class A, CE, CB, CQC, SAA, C-Tick
External AC/DC Power Supply for Vaya
Philips Color Kinetics 309-000001-00 External AC/DC Power Supply for Vaya
Philips Xitanium® LED Drivers are specialized power supplies designed for solid-state lighting systems. This compact, versatile, and reliable family of LED drivers optimally supports a wide variety of lighting applications.Specifications: ...
Call for price! Not available online.
Power Supply Enclosure
Philips Color Kinetics 320-000001-00 Power Supply Enclosure
The NEMA 3R enclosure is designed for use as a wiring and/or junction box with the Xitanium drivers. A value-added solution, this enclosure shields an LED system’s driver and wiring, providing much needed protection in one versatile ...
Call for price! Not available online.
25` Vaya Power/Data Cable
Philips Color Kinetics 308-000001-02 25` Vaya Power/Data Cable
This unit is a power/ data leader cable, for use with the Philips Vaya LED luminaires.Philips Color Kinetics 308-000001-02 Specifications: Length: 25'Certifications: UL/cUL, CE, CQC, SAA, C-Tick
Call for price! Not available online.
Vaya Y Cable, 59" Data, 25' Power
Philips Color Kinetics 308-000001-10 Vaya Y Cable, 59" Data, 25' Power
This unit is a power/ data Y-cable, for use with the Philips Vaya LED luminaires. It allows data to pass through, while offering a new power branch.Philips Color Kinetics 308-000001-10 Specifications: Length:  -  ...
Call for price! Not available online.
25' Power, 12" Data Vaya Y Cable
Philips Color Kinetics 308-000001-09 25' Power, 12" Data Vaya Y Cable
This unit is a power/ data Y-cable, for use with the Philips Vaya LED luminaires. It allows data to pass through, while offering a new power branch.Philips Color Kinetics 308-000001-09 Specifications: Length:  -  ...
Call for price! Not available online.
6.5` Vaya Power/Data Cable
Philips Color Kinetics 308-000001-03 6.5` Vaya Power/Data Cable
This unit is a power/ data leader cable, for use with the Philips Vaya LED luminaires.Philips Color Kinetics 308-000001-03 Data Cable Specifications: Length: 6.5'Certifications: UL/cUL, CE, CQC, SAA, C-Tick
Call for price! Not available online.
59" Vaya Power/Data Cable
Philips Color Kinetics 308-000001-07 59" Vaya Power/Data Cable
This unit is a power/ data jumper cable, for use with the Philips Vaya LED luminaires.Philips Color Kinetics 308-000001-07 Specifications: Length: 59"Certifications: UL/cUL, CE, CQC, SAA, C-Tick
Call for price! Not available online.
Vaya Power/Data Cable, 1"
Philips Color Kinetics 308-000001-11 Vaya Power/Data Cable, 1"
This unit is a power/ data jumper cable, for use with the Philips Vaya LED luminaires.Philips Color Kinetics 308-000001-11 Specifications: Length: 1"Certifications: UL/cUL, CE, CQC, SAA, C-Tick
Call for price! Not available online.
12" Vaya Power/Data Cable
Philips Color Kinetics 308-000001-06 12" Vaya Power/Data Cable
This unit is a power/ data jumper cable, for use with the Philips Vaya LED luminaires.Philips Color Kinetics 308-000001-06 Specifications: Length: 12"Certifications: UL/cUL, CE, CQC, SAA, C-Tick
Call for price! Not available online.
