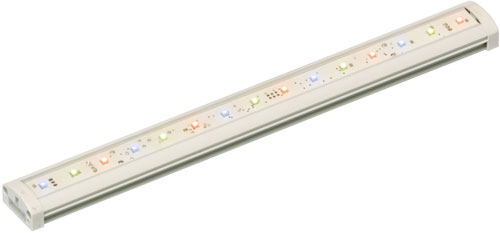

Philips Color Kinetics 316-000004-01
Vaya Cove Color, 23" RGB

OUR PART #:  316-000004-01

Philips Vaya Cove is a cost effective and reliable color-changing light fixture for interior use. Vaya Cove is designed for cove and accent lighting applications.
Learn More

Philips Vaya Cove is a cost effective and reliable color-changing light fixture for interior use. Vaya Cove is designed for cove and accent lighting applications. Three lengths, standard 24V DC power, RDM discovery and addressing, and DMX-512 control make this product easy to use with Philips or third-party RDM and DMX controllers.

Philips Color Kinetics 316-000004-01 Features:

  • Cost effective, reliable LED lighting fixture
  • 120° Beam Angle
  • Low Voltage, 24V DC input power
  • DMX-512 control / RDM discovery and addressing
  • Interior use

Philips Color Kinetics 316-000004-01 Specifications:

  • Height: 0.86" (22 mm) (including surface mount clip)
  • Width: 1.25" (32 mm) (including surface mount clip)
  • Length: 11.8" (0.3 m) / 23" (5.91 m) / 45.7" (1.16 m)
  • Mounting: Removable mounting clips for flush mounting
  • Source: High-brightness Red, Green and Blue LEDs
  • Beam Angle: 120°
  • Output Luminous Flux: 23" (0.6m): 75 lm
  • Lumen Maintenance: 50,000 hrs L50 at 25°C
  • Housing: Extruded polycarbonate, white housing with clear lens
  • Weight: 23" (0.6m): 0.4 lbs (180 g)
  • Connector: Integrated connector for input data and power andend-to-end coupling
  • Leader Cable: White, 6.5 ft. (2m) and 25 ft (8m)
  • Jumper Cable: White, 1" (24mm), 12" (0.3m), and 59" (1.5m)
  • Y-Jumper Cable: White, 12" (0.3m) data and 25 ft (8m) power orWhite, 59" (1.5m) data and 25 ft (8m) power
  • Control: DMX-512 control and RDM discovery and addressing, One address per fixture
  • Input Voltage: 24V DC
  • Power Consumption: 23" (0.6m): 6.2 W
  • Temperature Range:  -4°F to 104°F (-20°C to 40°C) operating temperature
  • Protection Rating: IP20, Interior applications
  • Certifications: UL / cUL, FCC Class A, CE, CB, CQC, SAA, C-Tick
