Lex DB100NP-ABB-S3 100A Pagoda with Cam Inlet and (15) 5-20 Duplex Receptacles, Weather Resistant

OUR PART #: DB100NP-ABB-S3 MFR #: DB100NP-ABB-S3

Copied to clipboard

The Lex Products DB100NP-ABB-S3 PowerHOUSE™ portable power distribution box is extremely versatile and can be fed from a generator or panel. ...Read more

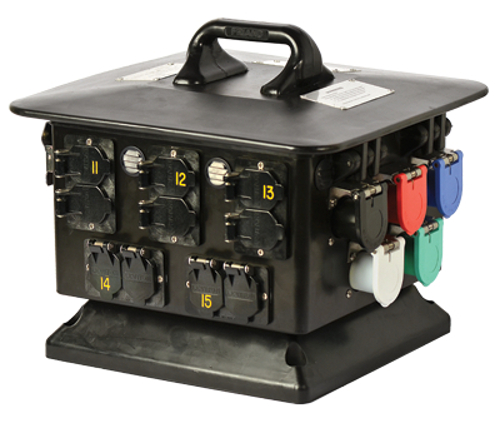

Lex DB100NP-ABB-S3 100A Pagoda With Cam Inlet And (15) 5-20 Duplex Receptacles, Weather Resistant Image 1
Lex DB100NP-ABB-S3 100A Pagoda With Cam Inlet And (15) 5-20 Duplex Receptacles, Weather Resistant

Call for price! Not available online.

Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Lex Products DB100NP-ABB-S3 PowerHOUSE™ portable power distribution box is extremely versatile and can be fed from a generator or panel. Rated for outdoor use, this box can accept up to (30) NEMA 5-20, 20 Amp Edison cords for powering lights, effects, and audio equipment for events including small concerts. Applications also include powering light tools and computers.

Lex Products DB100NP-ABB-S3 PowerHOUSE Pagoda Features:

  • Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion
  • Breakers are mounted under hinged lid for enhanced safety
  • Stackable and compact for for easy storage and convenient portability
  • Elevated base keeps receptacles above ground level

Lex Products DB100NP-ABB-S3 PowerHOUSE Pagoda Specifications:

  • Rating: 100 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC
  • Environmental Rating: NEMA 3R Weather Resistant
  • Input: (1) set of (5) 16 Series Cam-type color-coded panel mount inlets
  • Output: (15) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 125 VAC, duplex receptacles
  • Overcurrent Protection: (15) 20 Amp, Single Pole branch-rated circuit breakers
  • Overall Dimensions: 14.25" L x 14.25" W x 14.15" H
  • Weight: 32 lbs
